Alemite 8571-5 Service Manual

1-800-548-1191-http://www.partdeal.com-info@partdeal.com
Description
The major components of the
portable pump assembly in the 8571
model series consist of a(n):
• hand-operated reciprocating
pump
• drum cover assembly
• drum dolly assembly
• delivery hose with fluid filter and
manual non-drip nozzle
assembly
• electronic meter
Pump
The low-pressure pump included
with the assembly is designed to
dispense automatic transmission fluid
directly from their original
16-gallon containers.
The pump delivers approximately 1
quart (0.95 liter) of product in six
cycles [2-strokes per cycle - one
upward and one downward].
Models 8571-5 and 8571-A5
The electronic meter on each model
registers in a different unit of
measurement. See Figure 1.
Model Assembly
Refer to Figure 2 for details on the
assembly of all packaged components.
This document contains confidential information that is the property of Alemite LLC
670738
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
Portable Hand-Operated Pump
Pump
Model
8571-5
8571-A5
* Can be reprogrammed to register in pints, quarts, gallons or liters

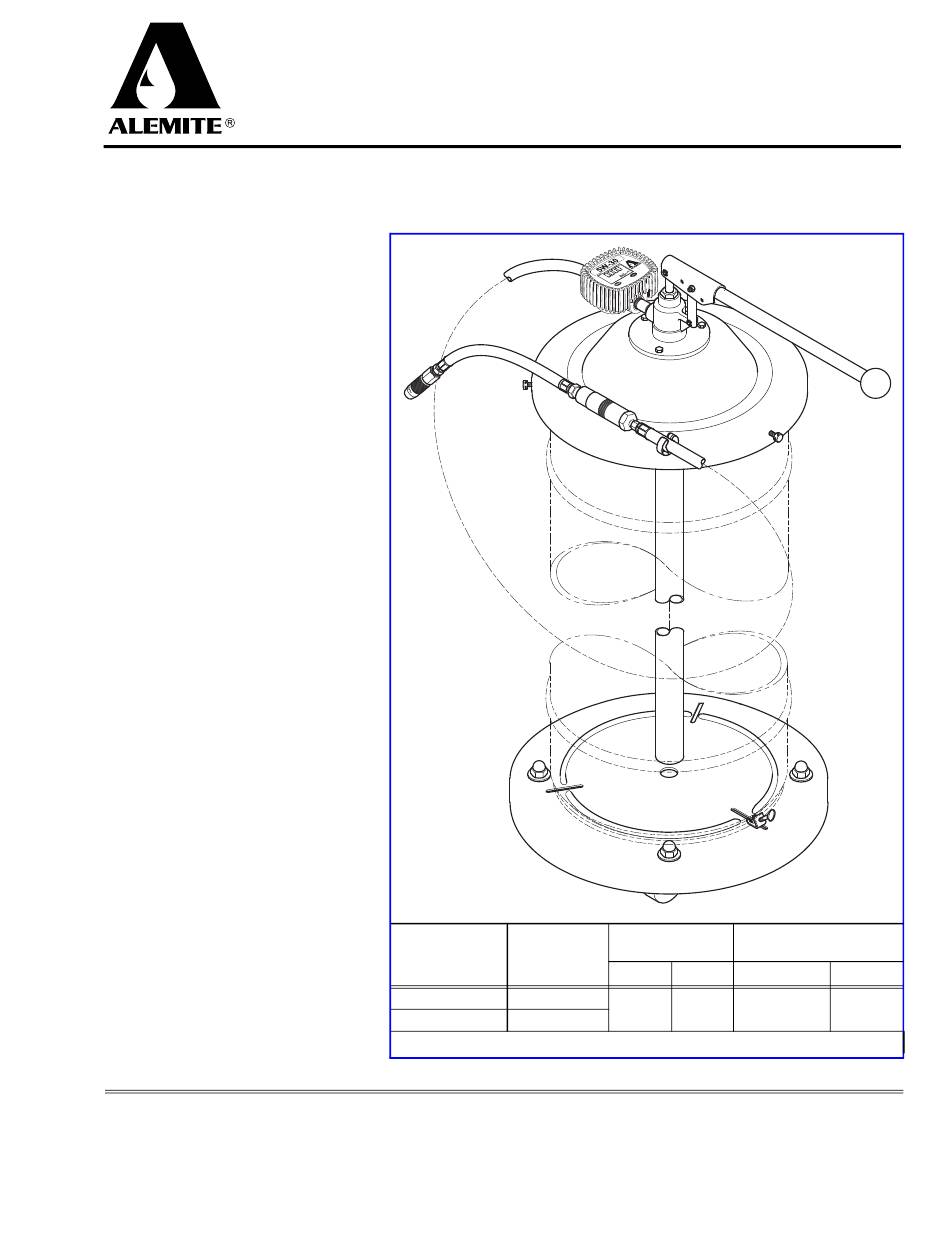

Figure 1 Portable Hand-Operated Pump Models 8571-5 and 8571-A5
Alemite LLC
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
Copyright
Meter
Register*
lbs
Quarts
35
Liters
©
2003 by Alemite LLC
8571-5
8571-A5
Model Overall Height
Weight (including Drum)
kg Inches
15.9 39-3/8
SER 8571-5
Revision 12-09
Meter
1
