Alemite 8700 Service Manual

Description
The major components of the 8700 series pumps consist
of a reciprocating hydraulic motor and a double-acting pump
tube.
These hydraulic pumps are designed to deliver a range of
light to heavy lubricants directly from an original container.
Each pump model is designed with a pump tube length to
accommodate different size containers. See Figure 1.
Specifications
Hydraulic Motor
Piston Diameter x Stroke
Inches Centimeters
1-5/16 x 1-5/8 3.3 x 4.1
For information on the air motor, refer to Service Guide SER 340952
Pump Tube
Max. Material
Pressure
Material
Outlet
psi Bars
3/8 " NPTF (f) 7500 517
* For detailed information, refer to Figure 4
Table 1 Model 8700 Series Specifications
This document contains confidential information that is the property of Alemite LLC
670977
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
High-Pressure Hydraulic Pump
Max. Hydraulic
Pressure
Hydraulic Inlet
psi
1/4 " NPTF (f) 600
Max. Delivery/Minute Displacement
(Approximate)* per Cycle
3
Ounces Grams
in
16 454 0.277
167 Roweland Drive, Johnson City, Tennessee, 37601
www.alemite.com
Copyright
Bars
41.3
3
cm
4.54
Pump Model
8700-A
8700-B
8700-C

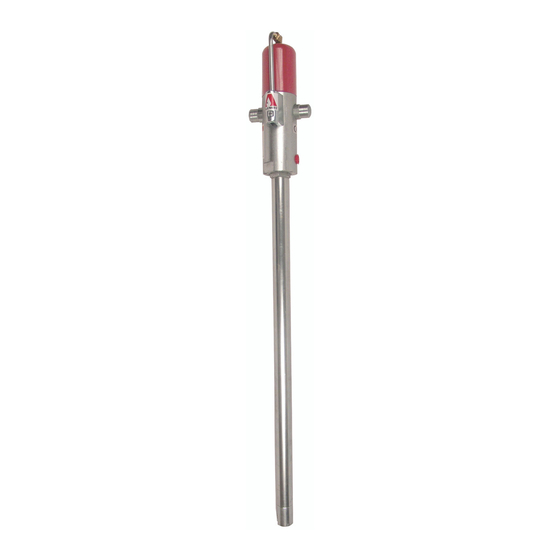

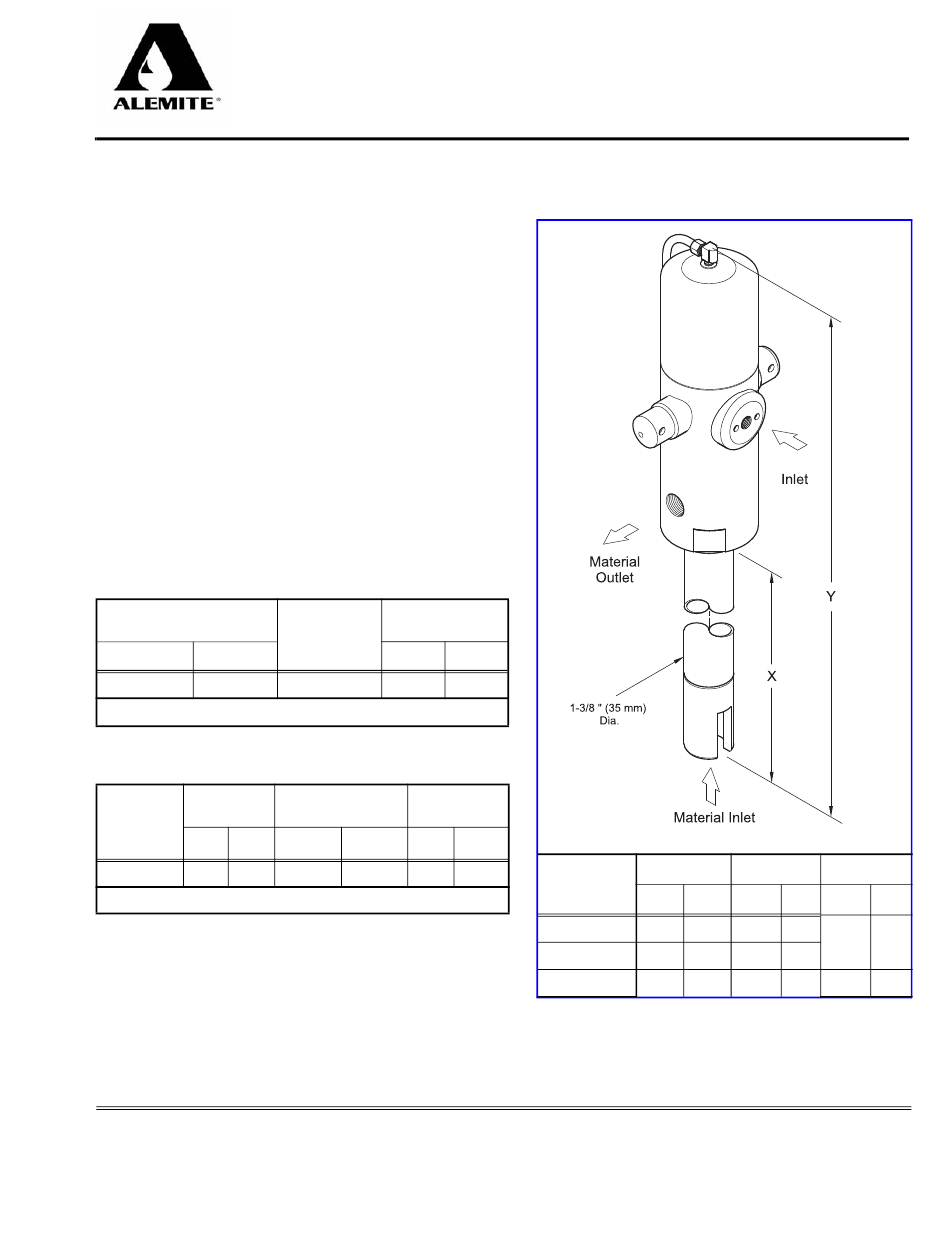

Figure 1 Hydraulic Pump
