DIGITAL DISPLAY INSTRUCTIONS
WARNING:
PLEASE DO NOT PLAY WITH THE DIGITAL DISPLAY
DO NOT PRESS ANY BUTTON FOR MORE THAN 60 SECONDS, IT WILL SHUT DOWN THE
UNIT OR GO INTO SLEEP MODE.

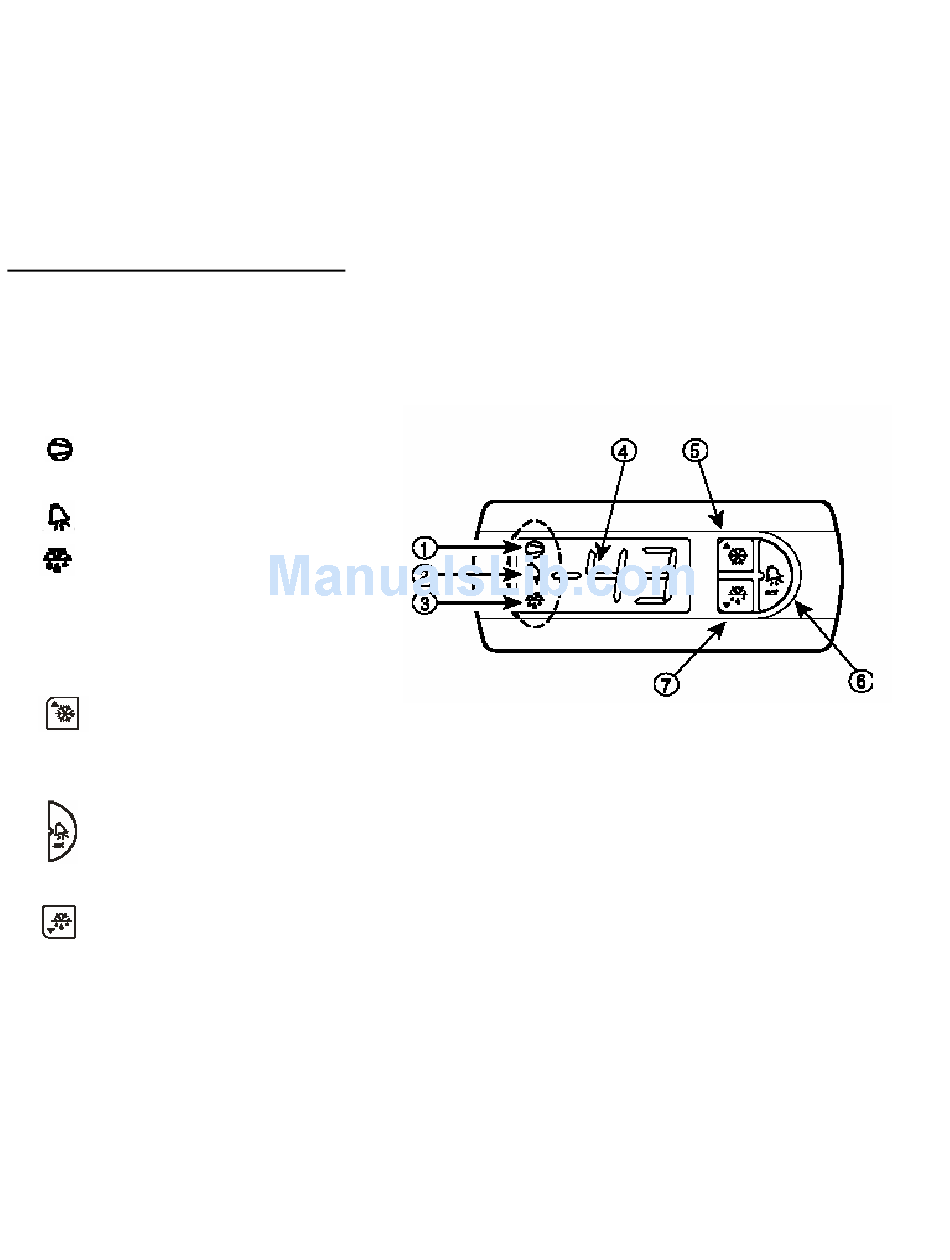

1
The green LED indicates the
compressor is on and running
2
Alarm signal: Indicates the alarm is on
3
Defrost in progress:LED will light when
unit is in defrost mode
4
Digital Display:LED will display the
tempature .
Codes will display on when pressed
5
LED button is to modify the tempatures
or activates/deactivates continuous cycle
Moves from one parameter to the next
Increases the value of the parameter
6
Set Point:
Silence the alarm
You will access the menu (if pressed for more than five seconds)
Blinking indicates that controller is waiting for a time delay to expired
7
LED button is to modify the tempatures
Moves from one parameter to the next
Decreases the value of the parameter
DURING NORMAL WORKING CONDITIONS,THE DISPLAY SHOWS THE VALUE MEASURED
BY THE AIR.IN CASEOF AN ACTIVE ALARM, THE TEMPERATURE FLASHES
ALTERNATELY TO THE CODE.
VINOTEMP
17631 SOUTH SUSANA ROAD
RANCHO DOMINGUEZ,CA 90221
(800)777.8466 FAX (310)886-3310
WINEMATE COOLING SYSTEMS
INTERNATIONAL
PAGE 1
Advertisement
Table of Contents
Related Manuals for Vinotemp WM-125C
Summary of Contents for Vinotemp WM-125C
- Page 1 Decreases the value of the parameter DURING NORMAL WORKING CONDITIONS,THE DISPLAY SHOWS THE VALUE MEASURED BY THE AIR.IN CASEOF AN ACTIVE ALARM, THE TEMPERATURE FLASHES ALTERNATELY TO THE CODE. VINOTEMP INTERNATIONAL 17631 SOUTH SUSANA ROAD RANCHO DOMINGUEZ,CA 90221 (800)777.8466 FAX (310)886-3310...
-
Page 2: Deactivate The Alarm
LED go off only when the cause of the alarm no longer exist. The alarm codes are shown below: ALARMS AND SIGNALS ERROR- PLEASE CALL or EMAIL VINOTEMP ERROR- PLEASE CALL or EMAIL VINOTEMP ERROR- PLEASE CALL or EMAIL VINOTEMP... -
Page 3: Troubleshooting
TROUBLE SHOOTING WINEMATE COOLING SYSTEMS ARE SEALED SYSTEMS THAT REQUIREDS A MINIMUM OF SERVICE. WARNING UNPLUG UNIT BEFORE CLEANING CLEAN THE EXHAUST GRILL AT LEAST 3-4 TIMES A YEAR.(RECOMMENDED WITH VACUUM) THE UNIT MAY RUN CONSTANTLY OR CYCLE ON AND OFF FOR SHORT PERIODS. THE TIME REQUIRED TO REACH THE DESIRED TEMPERATURE WILL VARY, DEPENDING ON THE ENCLOSURE CONSTRUCTIONS AND CONTENTS. -
Page 4: Installation
WINEMATE cooling units are designed to, when installed in a properly constructed cabinet or closet, provide a constant, selectable, temperature between 52-62F while maintaining 55-70% humidity. Products requiring these storage conditions include wine, furs, pastries, tobacco, chocolates and documents. WINEMATE cooling units are not intended to cool service cabinets which are maintained at lower temperatures and are opened frequently. - Page 5 back fresh air exhaust FIG 2 3 brackets here thermostat inside of cabinet WINEMATE is extremely proud of the quality and reliability of its products. Experience has shown that of the small number of problems encountered, the large majority is due to improper unit selection or enclosure construction.
-
Page 6: Service Under Warranty
WINEMATE warrants its products to be free from defects due to workmanship or materials under normal use and service, for twelve months after the initial sale. If the product is defective due to workmanship or materials, is removed within twelve (12) months of the initial sale and is returned to WINEMATE, in the original shipping carton, shipping prepaid, WINEMATE will at its option, repair or replace the product free of charge. - Page 7 As this could cause the unit to ice up. VINOTEMP P.O. BOX 6107 COMPTON CA, 90221 PHONE;...
-
Page 8: Operation
VINO1500 - 4500 HZD MODEL COOLING UNITS WINEMATE cooling units are designed to, when installed in a properly constructed enclosure or closet, provide a constant, selectable, temperature between 52-62F while maintaining 55-70% humidity. Products requiring these storage conditions include wine, furs, pastries, tobacco, chocolates and documents. - Page 9 If it is necessary to adjust the temperature of the enclosure, adjust to a colder temperature wile the unit is running and to a warmer temperature while the unit is off. If the operation of the unit is stopped, ether by unplugging it or by turning the thermostat, do not restart unit for at least 10 minutes.
-
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS Thank you for choosing WINEMATE for your cooling needs. Our cooling systems are designed to give years of trouble-free service, When properly installed. All WINEMATE cooling systems use ENVIRONMENTALLY FRIENDLY R134A. WINEMATE cooling systems will provide a constant cooling temperature between 50f and 62f wile reducing excess moisture when installed in a properly constructed enclosure. -
Page 11: Specifications
On initial start-up the system will slowly reduce the temperature of the enclosure. The system may run constantly or cycle on and off frequently until the enclosure reaches the desired temperature. The time needed will very depending on size, contents, and construction. The thermostat is preset for approximately 55f. - Page 12 OUT DOOR ENCLOSURE 24" LINE SET ELECTRICAL BOX COND UNIT 25-4500 SS 65-8500 SS 14.5 TYPICAL INSTALLATION FAN COIL AIR FLOW...
- Page 13 WINEMATE WWW.WINE-MATE.COMM VINO-1500 SS & 1900 SS SPLIT SYSTEMS INSTALLATION INSTRUCTIONS Thank you for choosing WINEMATE for your cooling needs. Our cooling systems are designed to give years of trouble-free service, When properly installed. All WINEMATE cooling systems use ENVIRONMENTALLY FRIENDLY R134A. WINEMATE cooling systems will provide a constant cooling temperature between 50f and 62f while reducing excess moisture when installed in a properly constructed enclosure.
- Page 14 VINO-1500SS 150CUFT CELING MOUNTED FANCOIL 1500BTU COND UNIT VINO-1900 SS 150CUFT WALL MOUNTED FANCOIL 1900 BTU COND UNIT VINO-1500 SS VINO-1900SS 16 3/4 MOUNTING PLATE VINO-1900 SS 10.75 SPECIFICATIONS R134A 115V 60HZ .73A ETL & NSF LISTED 115V 60HZ 3.1A UL LISTED R-134A 115V 60HZ 2.2A ETL &...
- Page 15 AIR OUT LINE SET AIR IN COND UNIT VINO-1900 SS TYPICAL INSTALLATION AIR IN VINO 1500SS AIR OUT LINE SET COND UNIT...
-
Page 16: Items Not Covered By Warranty
WINEMATE warrants this product to be free from defects in material and workmanship and agrees to replace any component found defective under these terms and conditions. This warranty may be enforced only by the original retail customer and is not transferable. All components used in this unit are warranted for ONE YEAR from the original retail purchase date. - Page 21 DIMENSIONS OF COOLING UNITS VINO-1500CD VINO-2500CD 18Wx10.5Hx16D 18Wx10.5Hx16D 115V 115V 60HZ 60HZ 4 AMPS 5 AMPS 1/6HP 1/5 HP 1500BTU 2500BTU R134A R134A 150CUFT MAX 250 CUFT MAX VINO-2500HZD VINO-2520HZD 14.25Wx13.25Hx16D 14.25Wx13.25Hx16D 115V 220V 60HZ 50HZ 5 AMPS 4 AMPS 1/5 HP 1/5 HP 2500BTU...
-
Page 22: Split Systems
SPLIT SYSTEMS VINO-1500SS FAN COIL 16.75Wx4.75Hx15D CELING MOUNTED 115V 60HZ 73 AMPS CONDENSING UNIT 14Wx12Hx18D 115V 60HZ 3.1 AMPS 1500BTU R134A 150 CUFT MAX VINO-1900SSD FAN COIL 18Wx12.5Hx4.5D WALL MOUNTED 115V 60HZ 2.2 AMPS CONDENSING UNIT 14Wx12Hx18D 115V 60HZ 3.1 AMPS 1500BTU R134A 150 CUFT MAX VINO-2500SSD... - Page 23 1500 CUFT MAX VINO-8500SSD FAN COIL 30.75Wx15.25Hx23D CEILING MOUNTED 115V 60HZ 5.2 AMPS CONDENSING UNIT 18Wx14.5Hx24D 208.230V 60HZ 1PH 7.3 AMPS 8500BTU R134A 2000 CUFT MAX All SSD unit use a mechanical thermostat adjustable from 45F TO 65F. All SSD cooling system use the uni-stat electronics thermostat and timer features: Green remote LED display Adjustable Tempature Adjustable differantial...
- Page 24 The humidifier is designed to provide cool moist air for the humidor. By using a fan, a water reservoir and a humidistat. Install the humidifier in the bottom of the humidor. Connect the humidistat to the fan and mount it at the end of the wire above the humidifer. Fill the reservoir 3/4 full of water.
