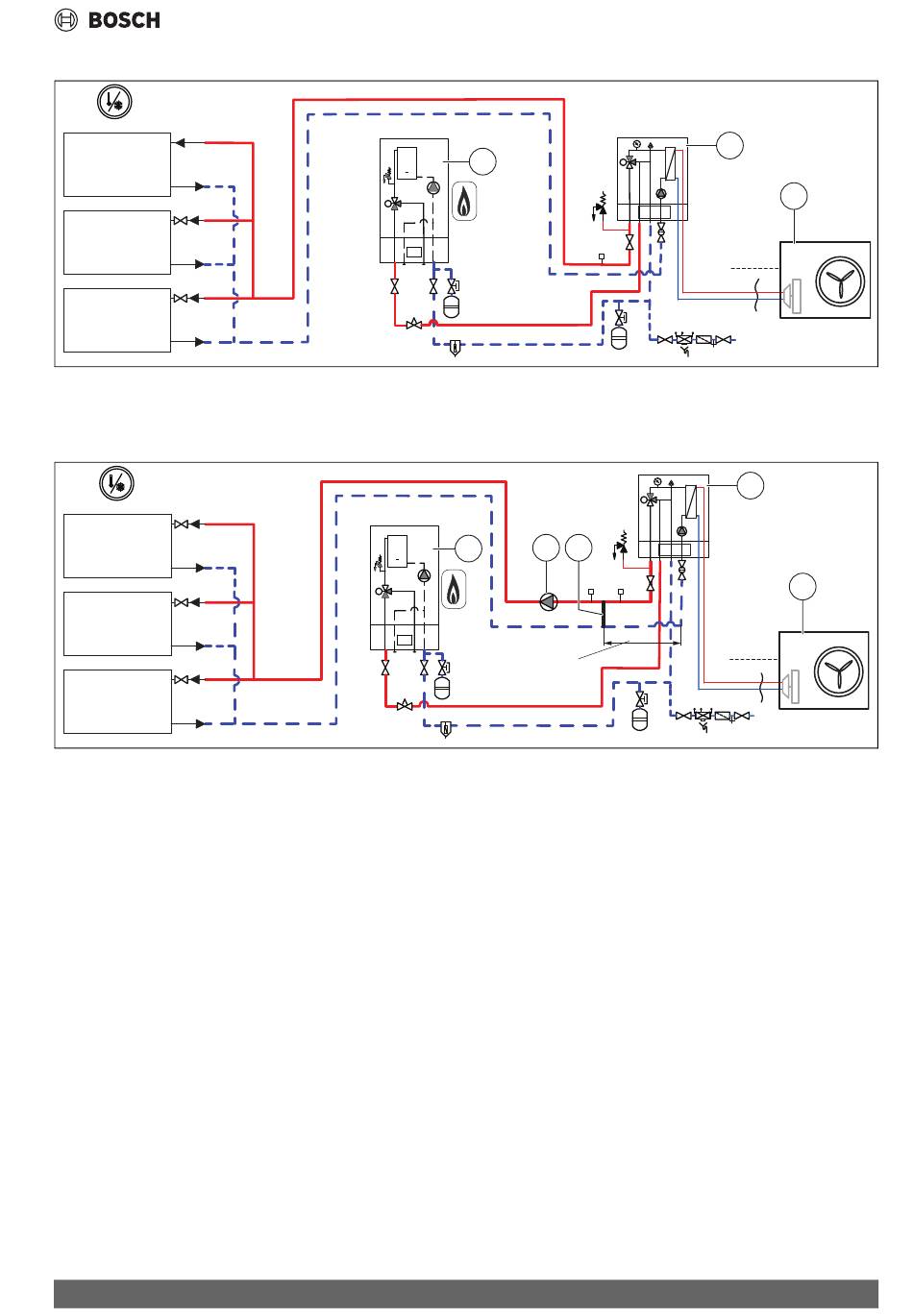

Hydraulic diagram heating system
Fig. 45 Hydraulic diagram of a system (1 heating circuit, without bypass; example)
[1] External booster heater
[2] Indoor Unit
[3] Outdoor Unit
Fig. 46 Hydraulic diagram of a system (1 heating circuit, with bypass and heating pump), with bypass and heating pump; example)
[1] External booster heater
[2] Indoor Unit
[3] Outdoor Unit
[4] Additional heating pump
[5] Bypass (Chapter 4.6, page 9)
