Installation
4.8
Insulating the hydraulic pipework
Insulating the pipework inside the building
CAUTION
Risk of burning!
Contact with uninsulated piping can inflict burns to the skin.
▶ Insulate all heat-conducting pipework using suitable thermal
insulation according to applicable regulations.
Insulating the pipework outside the building
NOTICE
Material damage from frost!
In case of a power outage the water in the hydraulic pipework may freeze.
▶ Use insulation with a thickness of at least 19 mm for pipework
outdoors.
▶ Use insulation with a thickness of at least 12 mm for pipework
indoors.
5
Installation
5.1
Transport and storage
The indoor unit must always be transported in its packaging and stored
in an upright position. The indoor unit can be provisionally tilted for
transportation purposes if required.
After unpacking the indoor unit, do not place or set it down on the pipes
or on the side panel.
▶ After unpacking the indoor unit, lay it down on the back panel.
Do not store or transport the indoor unit at temperatures below
– 10 °C.
5.2
Unpacking
▶ Remove the packaging according to the instructions on the
packaging.
▶ Take out enclosed accessories.
▶ Check that all package contents are present.
10
5.3
Indoor unit installation
5.3.1
Removing the cover
To unlock the cover [1]:
▶ Unscrew the unlocking screw [2] on the underside of the indoor unit
using a suitable tool.

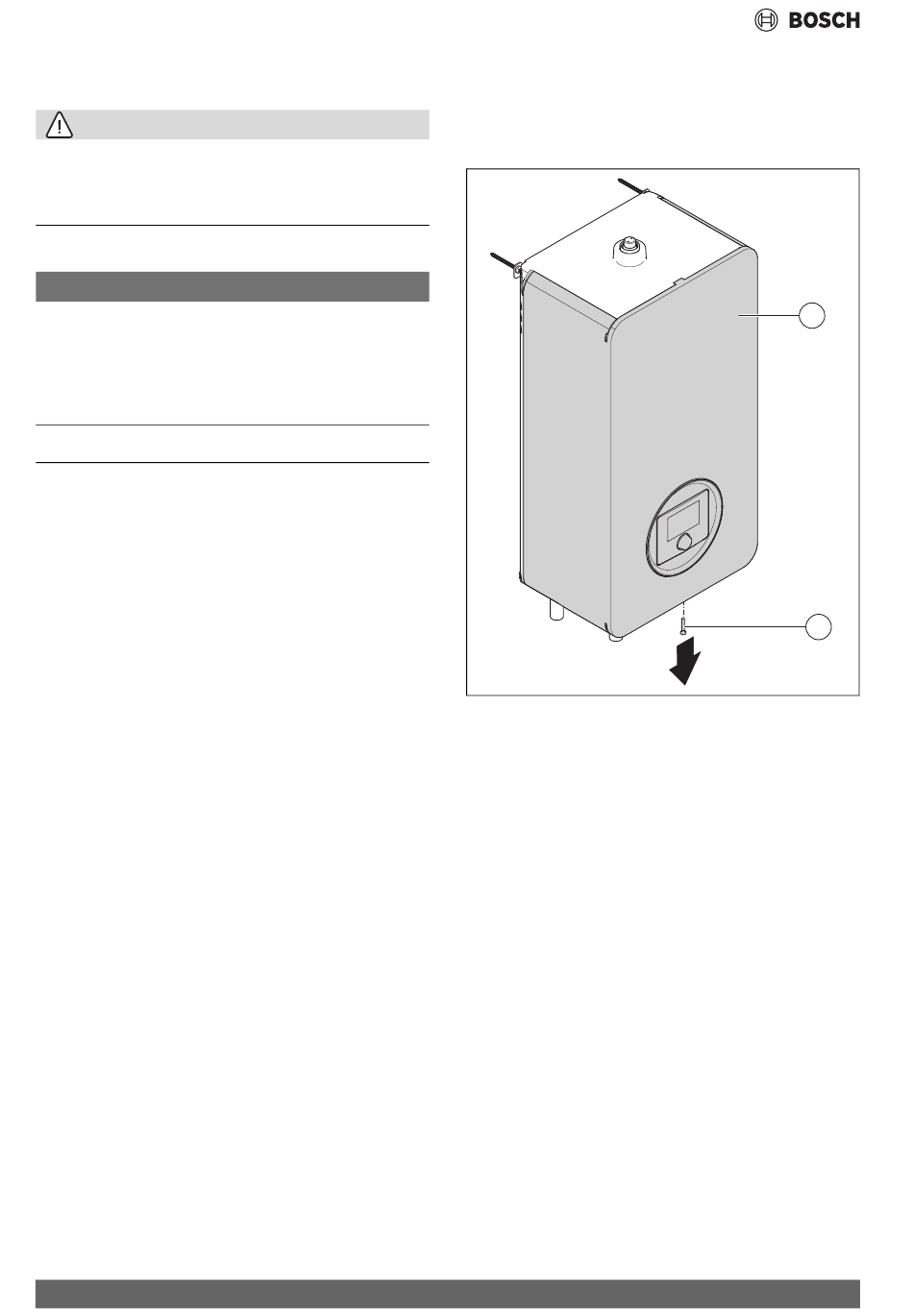

Fig. 12 Unlock the cover
[1]
Cover of the indoor unit
[2]
Unlocking screw
To detach the cover [2] from the bottom fixing [1]:
▶ Pull the cover [2] on the underside slightly forwards.
Compress Hybrid 3400i AW – 6721861825 (2023/08)
1
2
0010031287-002
