Diagnostic Test 1 – Carousel Diagnostic Test
This test has two modes. The first mode evaluates the position of the carousel. The second mode evaluates the
alignment of the lift arm to the carousel.

Check the Position of the Carousel

This test verifies that the carousel is positioned correctly in the autoloader.
1. Make sure that the autoloader is in diagnostic mode. Refer to the
page 1.
2. Press and hold the operator button until the operator panel displays [01 CAROUSEL CHK DIAGNOSTIC].
3. Release the operator button.
4. Press the operator button to rotate the carousel from the current bin position to the next bin position.
Note: Each time the carousel rotates, the operator panel displays the actual carousel position and the target
carousel position on the operator panel. The actual carousel position number is displayed as [A+00000], and
the target carousel position is displayed as [T+00000].
5. Repeat step 4 for each of the four carousel bins.
Note: After the carousel rotates clockwise from bin 1 to bin 4, it rotates counterclockwise from bin 4 to bin 1.
6. Press and hold the operator button to exit the test and return to diagnostic mode.

Check the Alignment of the Lift Arm to the Carousel

This test verifies that the lift arm aligns properly with each carousel bin.
1. Make sure that the autoloader is in diagnostic mode. Refer to the
page 1.
2. Press and hold the operator button until the operator panel displays [01 CAROUSEL CHK].
3. Release the operator button.

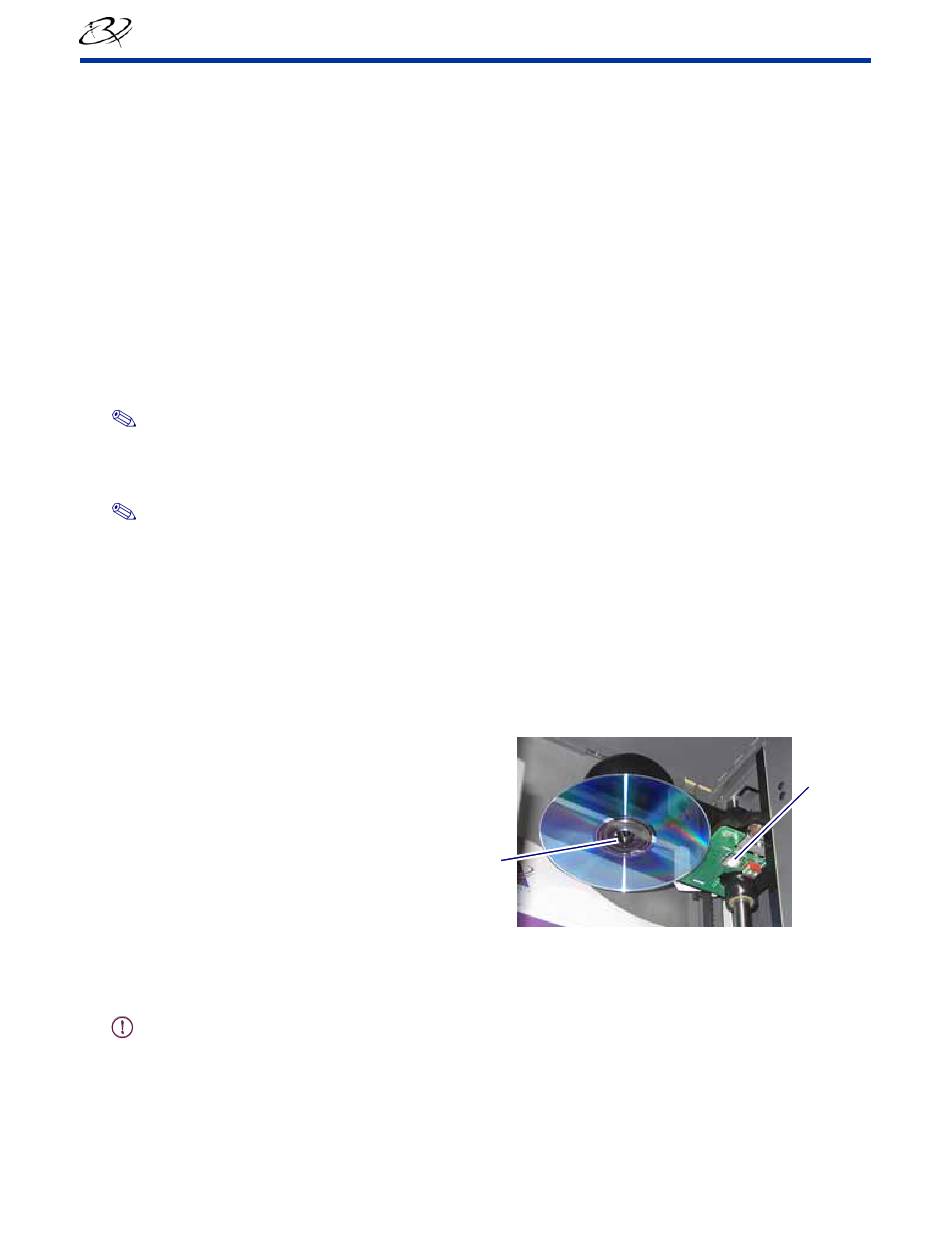

4. Place a disc on the lift arm. Press the disc into
the gripper while you press the disc release
button.
5. Release the disc release button. The gripper
holds the disc.
6. Press the operator button to rotate the carousel to bin 1.
7. Manually move the lift arm and disc down into bin 1. Make sure that the disc does not interfere with the carousel
as it moves into the bin.
Important! If the disc interferes with the carousel in step 7, the lift arm may be miscalibrated or there may
be an issue with the hardware that positions the carousel. Perform diagnostic test 3 on page 3 to calibrate
the lift arm and the carousel.
