Lancom LX-6200 Hardware Quick Reference page 2

LED description & technical details
Hardware Quick Reference

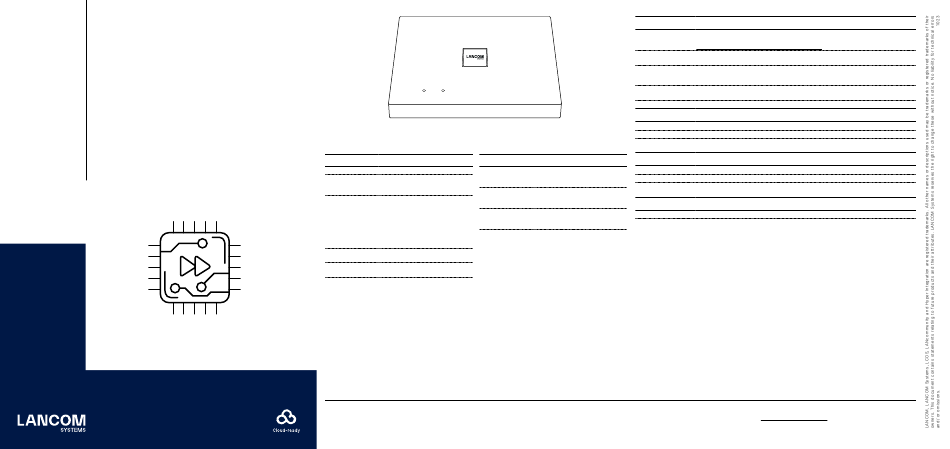

LANCOM LX-6200
�� ��
�� Power �� WLAN link
Off Device switched off Off
Green, permanently* Device operational, resp. device paired
/ claimed and LANCOM
Management Cloud (LMC) accessible. Green, permanently
Orange / green, The accesspoint is in managed
blinking alternately mode and has not found a WLAN
with the WLAN link controller yet. The corresponding Wi-Fi Green, inverse
LED module(s) is/are switched off until flashing
a WLAN controller has been found
to supply a configuration, or until
Green, blinking
being switched manually into another
operating mode.
1x green inverse Connection to the LMC active, pairing
blinking* OK, claiming error.
2x green inverse Pairing error, resp. LMC activation code
blinking* / PSK not available.
3x green inverse LMC not accessible, resp.
blinking* communication error.
*) The additional power LED statuses are displayed in 5-seconds rotation if the device is configured to be managed by the LANCOM
Management Cloud.
The product contains separate components which, as so-called open source software, are subject to their own licenses, in particular the
General Public License (GPL). The license information for the device firmware (LCOS) can be found on the WEBconfig interface of the device
under the menu item „Extras->License information". If required by the respective license, source files for the affected software components are
provided on request via a download server.
Hardware
Power supply 12 V DC, external power adapter (110 V or 230 V) or PoE based on 802.3at via ETH1
For an overview of the plug-in power supplies compatible with your device, see
https://www.lancom-systems.com/kb/power-supplies.
Power consumption 17.3 W
max.
Environment Temperature range 0–40 °C for wall mount with LANCOM Wall Mount (LN).
Access point overheating is avoided by automatic throttling of the Wi-Fi modules.
Humidity 0-95 %, non-condensing
Housing Robust housing made of polycarbonate and aluminum, rear connectors, ready for wall and
ceiling mounting; dimensions 205 x 42 x 205 mm (W x H x D)
Number of fans None; fanless design, no rotating parts, high MTBF
Wi-Fi
Frequency range 2400–2483.5 MHz (ISM) or 5180–5700 MHz (country-specific restrictions possible)
Radio channels 2.4 GHz Up to 13 channels, max. 3 non-overlapping (2.4 GHz band)
Radio channels 5 GHz Up to 19 non-overlapping channels (available channels depending on country-specific
regulation and connected with automatic, dynamic DFS channel selection.)
Interfaces
ETH1 (PoE) 10 / 100 / 1000 Base-TX, PoE adapter compliant to IEEE 802.3at required
No Wi-Fi network defined or Wi-Fi
module deactivated. The Wi-Fi module
USB USB 2.0 Hi-Speed Host-Port
is not transmitting beacons.
BLE The device can detect BLE devices in the environment and forward the data to external
At least one Wi-Fi network defined and
systems for analysis using a REST API.
Wi-Fi module activated. The Wi-Fi
Package content
module is transmitting beacons.
Number of flashes = number of
Cable Ethernet cable, 3 m
connected Wi-Fi stations, followed by
Power adapter External power adapter, 12 V DC (not for WW devices)
a pause.
DFS scanning or other scan procedure
Hereby, LANCOM Systems GmbH | Adenauerstrasse 20/B2 | D-52146 Wuerselen, declares that this device is in compliance with
Directives 2014/30/EU, 2014/53/EU, 2014/35/EU, 2011/65/EU, and Regulation (EC) No. 1907/2006. The full text of the EU Declaration
of Conformity is available at the following Internet address: www.lancom-systems.com/doc
