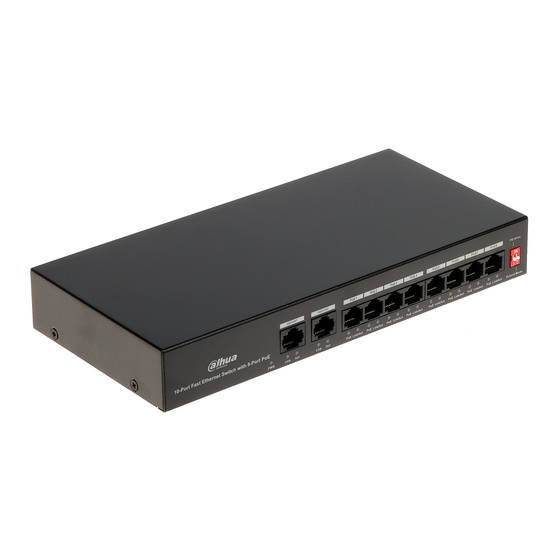

- Page 1 User’s Manual 10-Port Fast Ethernet Switch with 8-Port PoE User’s Manual V1.0.0 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.
-
Page 2: Foreword
This manual introduces the features and structure of 10-Port Fast Ethernet Switch with 8-Port PoE (hereinafter referred to as "the Device"). Models DH-PFS3010-8ET-65 Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words... - Page 3 User’s Manual the electronic version shall prevail. All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation. There still might be deviation in technical data, functions and operations description, or ...
-
Page 4: Important Safeguards And Warnings
User’s Manual Important Safeguards and Warnings The manual helps you to use our product properly. To avoid danger and property damage, read the manual carefully before using the product, and we highly recommend you to keep it well for future reference. Operating Requirements ... -
Page 5: Table Of Contents
User’s Manual Table of Contents Foreword ..............................I Important Safeguards and Warnings ....................III 1 Product Overview ..........................1 Introduction ........................... 1 Features ............................1 Typical Application ......................... 1 2 Device Structure ............................ 2 Side Panel ............................. 2 Front Panel ............................ 2 PoE Power Supply ........................ -
Page 6: Product Overview
User’s Manual Product Overview Introduction 10-Port Fast Ethernet Switch with 8-Port PoE is a type of layer 2 commercial switch, which supports Ethernet power supply. It provides eight 10/100 Mbps Ethernet ports and two 100 Mbps uplink ports. Features Layer 2 commercial switch. -
Page 7: Device Structure
User’s Manual Device Structure Front Panel Figure 2-1 Front panel Table 2-1 Description of front panel Name Description Uplink1–Uplink2 10/100 Base-T, two 10/100 Mbps self-adaptive uplink ports. 10/100 Base-T, eight 10/100 Mbps self-adaptive PoE power PoE1–PoE8 supply ports. PD Alive When PD Alive is on, IPC can be kept alive. -
Page 8: Appendix 1 Cybersecurity Recommendations
User’s Manual Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. - Page 9 User’s Manual Change Default HTTP and Other Service Ports We suggest you to change default HTTP and other service ports into any set of numbers between 1024~65535, reducing the risk of outsiders being able to guess which ports you are using. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel.
- Page 10 User’s Manual The network should be partitioned and isolated according to the actual network needs. If there are no communication requirements between two sub networks, it is suggested to use VLAN, network GAP and other technologies to partition the network, so as to achieve the network isolation effect.
- Page 11 User’s Manual...
