- Page 1 Dahua 8-Port 10/100 Mbps Unmanaged Desktop PoE Switch with 2 Gigabit RJ45 Ports User's Manual V1.0.1 V1.0.0 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.
-
Page 2: Cybersecurity Recommendations
Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity 1. Change Passwords and Use Strong Passwords: The number one reason systems get "hacked" is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible. -
Page 3: Foreword
This user's manual (hereinafter referred to be "the Manual") introduces the features and structure of 8-Port 10/100 Mbps Unmanaged Desktop PoE Switch with 2 Gigabit RJ45. Models DH-PFS3010-8ET-96 Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. - Page 4 About the Manual The Manual is for reference only. If there is inconsistency between the Manual and the actual product, the actual product shall prevail. We are not liable for any loss caused by the operations that do not comply with the Manual. ...
-
Page 5: Table Of Contents
Table of Contents Cybersecurity Recommendations ......................I Foreword ..............................II 1 Product Overview ..........................1 Introduction ........................... 1 Features ............................1 Typical Application ......................... 1 2 Device Structure ............................ 3 Front Panel ............................ 3 Back Panel ............................ 3 Side Panel ............................. 4 PoE Power Supply ........................ -
Page 6: Product Overview
Product Overview Introduction 8-Port 10/100 Mbps Unmanaged Desktop PoE Switch with 2 Gigabit RJ45 is a type of layer two commercial switch, which supports long distance Ethernet power supply. It provides 8 10/100 Mbps Ethernet ports and 2 10/100/1000 Mbps uplink ports. The product is equipped with two types of transmission modes (Default/Extend), which are controlled by DIP switch. - Page 7 Figure 1-1 Typical networking scene Product Overview 2...
-
Page 8: Device Structure

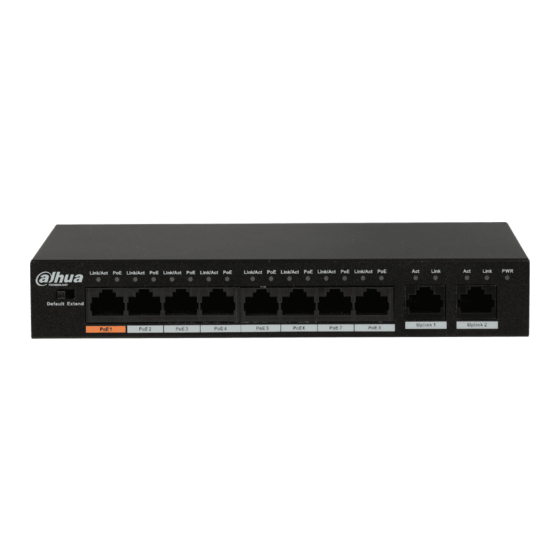

Device Structure Front Panel The front panel is shown in Figure 2-1. Figure 2-1 Front panel Please refer to Table 2-1 for the description of front panel. Table 2-1 The description of front panel Name Description 10/100 Base-T 10/100 Mbps self-adaptive PoE power supply ports. ×... -
Page 9: Side Panel
Table 2-2 The description of back panel Name Description Ground terminal GND. Lock hole Locks the switch. Power port Supports DC 48V-57V. Side Panel The structure of side panel is shown in Figure 2-3. Figure 2-3 Side panel Please refer to 错误!未找到引用源。 for the description of ports. Table 2-3 The description of side panel Name Description... - Page 10 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email: overseas@dahuatech.com Website: www.dahuasecurity.com...
