- Page 1 Ethernet Switch (4/8-port Unmanaged Desktop Switch) Quick Start Guide V1.0.0...
-
Page 2: Foreword
Foreword General This manual mainly introduces the hardware, installation, and wiring steps of the 4/8-port unmanaged desktop switch (hereinafter referred to as "the device"). Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result in death or serious injury. - Page 3 when using the device. ● If there is any uncertainty or controversy, please refer to our final explanation.
-
Page 4: Important Safeguards And Warnings
Important Safeguards and Warnings The manual helps you to use our product properly. To avoid danger and property damage, read the manual carefully before using the product, and we highly recommend you to keep it well for future reference. Operating Requirements ●... -
Page 5: Table Of Contents
Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................III 1 Overview ........................................1 1.1 Introduction ....................................1 1.2 Features ......................................1 2 Port and Indicator ....................................2 2.1 Front Panel ....................................2 2.2 Rear Panel ...................................... 3 3 Installation ....................................... 4 3.1 Preparation .................................... -
Page 6: Overview
1 Overview 1.1 Introduction The device is a layer-2 commercial switch. It provides high-performance switching engine and large buffer memory to ensure smooth video stream transmission. With a full-metal and fanless design, the device features great heat dissipation capability on the shell surface, and is able to work in the environment from –10°C to +55 °C. -
Page 7: Port And Indicator

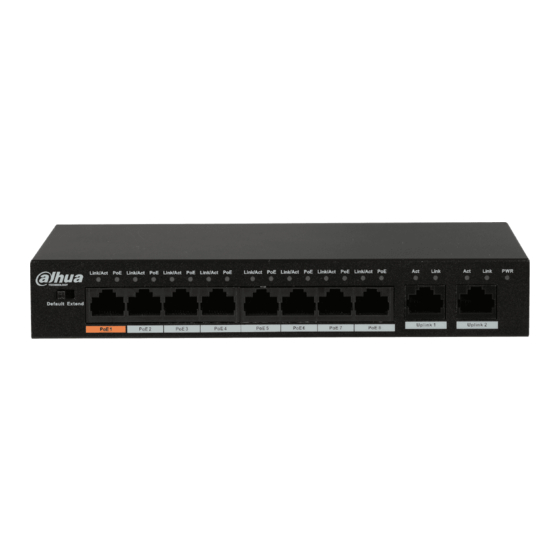

2 Port and Indicator 2.1 Front Panel The following figure is for reference only, and might differ from the actual product. Figure 2-1 Front panel The following are all the ports and indicators on the front panel of the 4/8-port unmanaged desktop switch. -
Page 8: Rear Panel
Description DIP switch ● PD Alive: When terminal device crash is detected, power down and restart the terminal device. ● Extend Mode: Extends the maximum transmission distance to 250 m, but reduces average transmission speed to 10 Mbps. Another DIP switch Select Default or Extend Mode by dialing the DIP switch. -
Page 9: Installation
3 Installation 3.1 Preparation ● Select an appropriate installation method as needed. ● Install the device on solid and flat surface. ● Leave about 10 cm heat dissipation space around the switch to ensure good ventilation. 3.2 Desktop Mount The device supports desktop mount. You can directly place it on solid and flat desktop. 3.3 Wall Mount Step 1 Drill two M4 screws into the wall, leaving a space of 4 mm between the wall and the head... -
Page 10: Wiring
4 Wiring 4.1 Connecting GND Normal GND connection of the device is the important guarantee for device lightning protection and anti-interference. The steps for connecting the GND are as follows: Step 1 Remove the ground screw on the device and place it properly. Pass the ground screw through the round hole of the OT terminal of the ground cable. -
Page 11: Connecting Poe Ethernet Port
Figure 4-2 Ethernet port pin number Figure 4-3 Pin description The cable connection of RJ-45 connector conforms to the standard 568B (1-orange white, 2-orange, 3-green white, 4-blue, 5-blue white, 6-green, 7-brown white, 8-brown). 4.4 Connecting PoE Ethernet Port You can directly connect the device PoE Ethernet port to the switch PoE Ethernet port through network cable to achieve synchronized network connection and power supply. -
Page 12: Appendix 1 Cybersecurity Recommendations
Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. - Page 13 6. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel. 7. MAC Address Binding We recommend you to bind the IP and MAC address of the gateway to the device, thus reducing the risk of ARP spoofing.
