TRACK 1020 Installation and activation manual
How to install the tracker

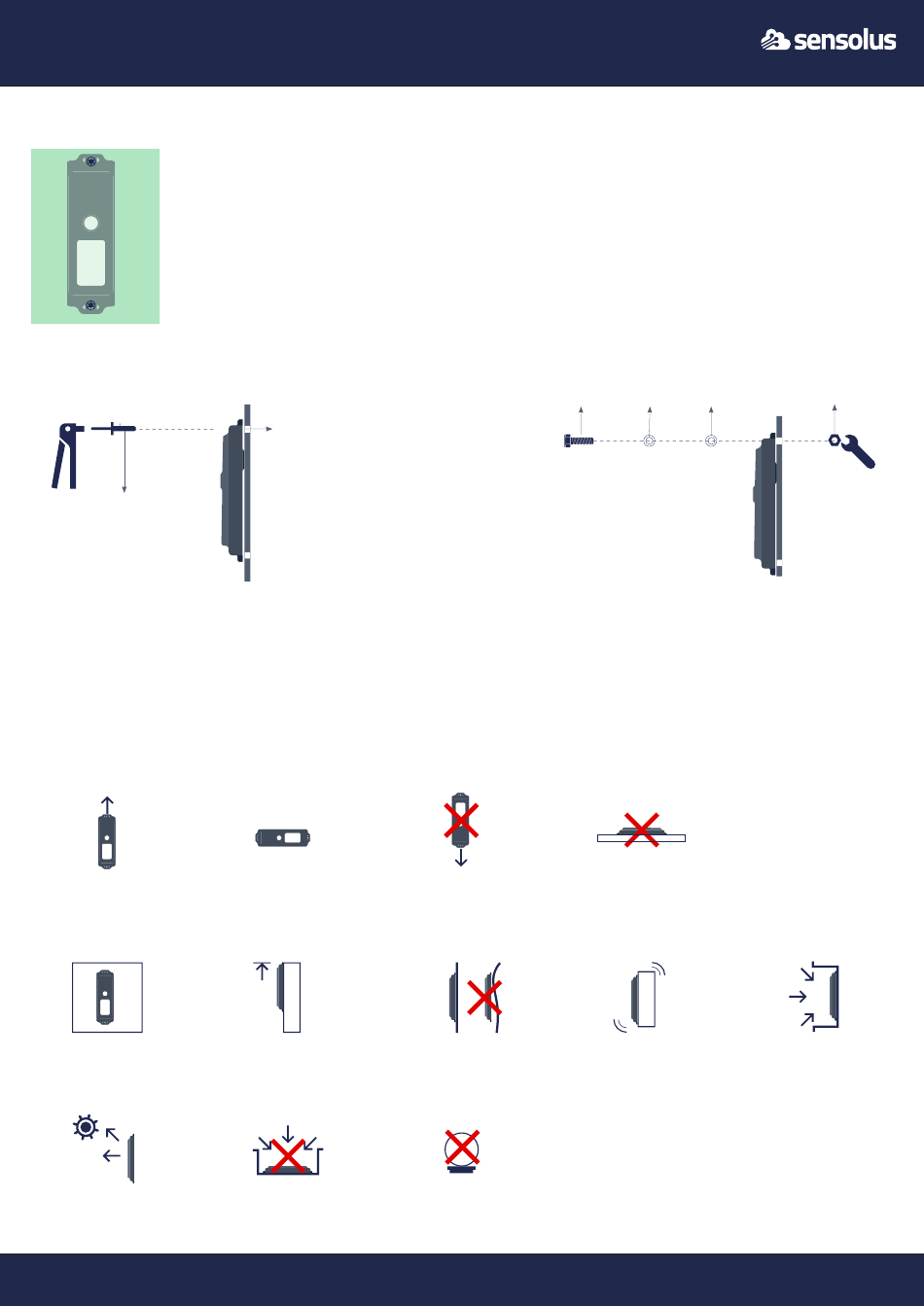

Install with rivets
Rivets diameter 5mm
Rivets are advised are they are more secure and tamper proof.
The height of the casing where the mounting holes are located is
8mm.
We recommend Gesipa Blind Rivets Aluminium/Steel Standard Flat
Head 5 x 16 mm.
Installation advice
The recommended orientation is
vertical (upright) with the arrows
on the sticker pointing upwards.
Avoid blocking the tracker's
view with metal or carbonfibre
walls. They weaken or block the
radiofrequency signals.
Make sure the tracker has a clear
view on the sky.
www.sensolus.com | info@sensolus.com
Drilled hole
min 5.1 mm
The second best orientation is
horizontal (sideways).
Place the tracker as high as
possible on the asset to ensure
good network coverage.
Avoid placing the tracker in a
place that can collect water.
Sensolus recommends to install the tracker with rivets or bolts.
For alternative fixation methods such as magnets please contact the Sensolus Help Desk.
support@sensolus.com or +32.9.298.09.43
Do not mount the tracker upside
down, with the sticker on top.
Make sure the mounting surface
is flat and clean, for a strong and
durable bond and to secure the
tamper function will work.
Do not mount on round
surfaces, this will impact the
tamper functionality.
Install with bolts
Bolt M5 Spring washer Washer
1. It is recommended to use M5 bolts and to use thread locking glue
on the bolts. We recommend Loctite Thread Locker Blue 242.
2. Protect the casing with a washer and use a spring washer to miti-
gate the effects of vibration and temperature variations.
3. The maximum allowed torque is 3.5NM for an M5 x 12 mm screw
used with a washer. Applying more torque may severely damage the
tracker's casing.
Do not mount the tracker
horizontally, facing upwards.
Do not install the tracker on
parts that receive frequent
shocks or vibrations.
Nut
You can place the tracker in a
protected location, but never
with metal or carbonfibre above
the tracker.
