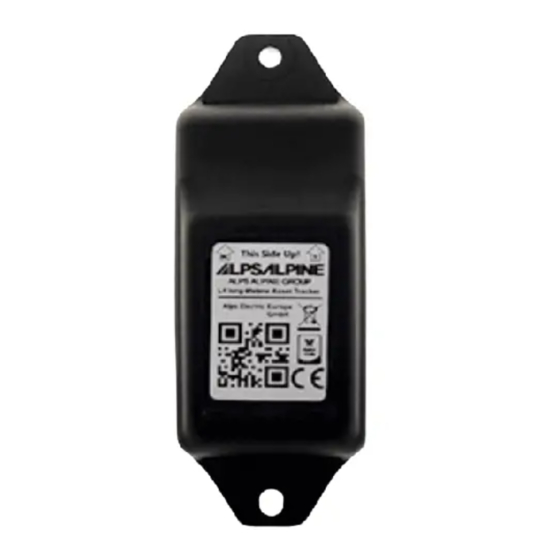

TRACK 1030 Installation and activation manual
Do not push the tamper button before
installation
We recommend to install with rivets
Rivets diameter 5mm
Installation with bolts
Bolt M5
Spring washer Washer
www.sensolus.com | info@sensolus.com
Rivets are advised are they are more secure and tamper
proof.
Drilled hole
min 5.1 mm
The height of the casing where the mounting holes are
located is 8mm.
We recommend Gesipa Blind Rivets Aluminium/Steel
Standard Flat Head 5 x 16 mm.
1. It is recommended to use M5 bolts and to use thread
Nut
locking glue on the bolts. We recommend Loctite Thread
Locker Blue 242.
2. Protect the casing with a washer and use a spring
washer to mitigate the effects of vibration and
temperature variations.
3. The maximum allowed torque is 1.25Nm for an M5 x
12 mm screw used with a washer. Applying more torque
may severely damage the tracker's casing.
Do not open the tracker.
Advertisement
Table of Contents
Related Manuals for sensolus TRACK 1030
Summary of Contents for sensolus TRACK 1030
- Page 1 TRACK 1030 Installation and activation manual Do not open the tracker. Do not push the tamper button before installation We recommend to install with rivets Rivets are advised are they are more secure and tamper proof. Drilled hole min 5.1 mm The height of the casing where the mounting holes are located is 8mm.
- Page 2 Step 2: Check in the platform Check in the platform or the Sensolus app if the tracker is online. To find a tracker in the platform. The trackers do not have a Sensolus serial on the device but the Sigfox device ID.
