ACTi ECD-1100 Quick Installation Manual

Advertisement

Quick Links

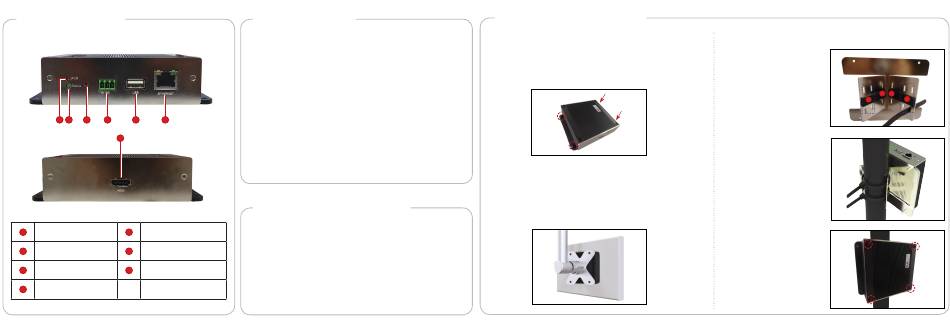

Device Overview
1
2
3
4
5
6
7
Power LED
USB Port
1
5
System Ready LED
Ethernet Port
2
6
Reset Button /
HDMI Port
3
7
NTSC and PAL Switch
4
DC 12V Power Connector

Before You Start

This guide contains all the information you need to quickly setup the
Video Decoder via local display interface. For detailed information on
installations or operations, please refer to the Hardware Manual or
User's Manual on the ACTi website (www.acti.com).
Before installation, prepare the following equipment:
1. HDMI Monitor
2. HDMI cable
3. RJ-45 network cable
4. Network switch
5. USB mouse
6. USB keyboard (optional)
7. Screwdriver

Step 1: Unpack the Device

Check if the package comes with the following items:
1. Video Decoder
2. Screw Pack
3. Cable Straps
4. Mounting Bracket
5. Power Adaptor
6. Terminal Block

Step 2: Mount the Device

The device can be mounted in three ways: Surface mount, Pole Mount or
VESA Mount.

How to Surface Mount?

1. Using the supplied drill template, drill 4 holes on the surface.
2. Attach the 4 supplied screws to secure the device.

How to Use VESA Mount?

1. Place the device in between a VESA mount (10 x 10) and the
monitor, with the top side of the device facing the monitor while
the bottom side facing the VESA mount.
2. Attach the 4 supplied bolts to secure the device.

How to Use the Pole Mount?

1. With the smooth side
outwards, insert the cable
staps through the holes
(A-B-C-D).
NOTE:
C
B
• Use the inner A and D
D
holes if mounting on a
pole with 1" diameter or
the outer holes for a 2"
diameter pole.
2. Align the pole mount to the
pole.
3. Insert the cables through
the latches and push all the
way until they fit snugly to
the pole.
4. Align the device to the
mount with the Ethernet
port side up and HDMI port
side down.
5. Secure the 4 supplied bolts
to attach the device to the
mount.
A
