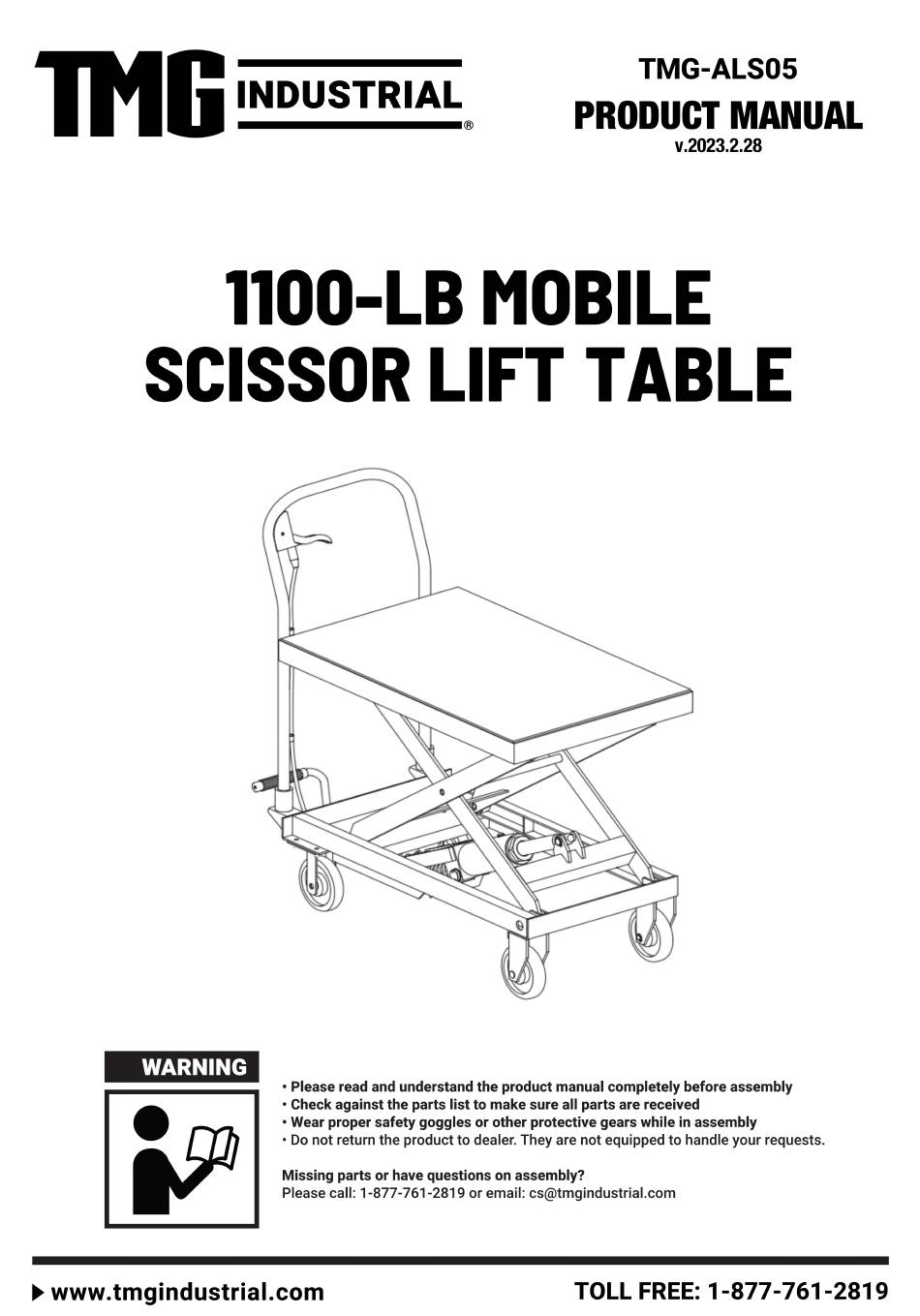

TMG -ALS05 Product Manual

1100-lb mobile scissor lift table
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMG-ALS05 and is the answer not in the manual?

Questions and answers

Related Manuals for TMG TMG-ALS05

Summary of Contents for TMG TMG-ALS05

  • Page 2 TECHNICAL SPECIFICATIONS Model TMG-ALS05 Capacity 1000 lbs Minimum Height 280 mm Maximum Height 860 mm Hydraulic Oil ISO VG 15 Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. This notation is also used to alert against unsafe practices.
  • Page 3 SAFETY PRECAUTIONS WARNING WARNING-DO NOT EXCEED RATED CAPACITY WARNING - Do not use the Hydraulic Table in lifting or moving or persons. WARNING - This table was designed for use on hard, level surfaces capable of sustaining the load. Use on other than hard, level surfaces could result in load instability and possible loss of load resulting in property damage and personal injury.
  • Page 4 HYDRAULIC TABLE CART PARTS LIST ► www.tmgindustrial.com TOLL FREE:1-877-761-2819...
  • Page 5 PARTS LIST DESCRIPTION DESCRIPTION Pump Top table Brake handle Shaft Retaining ring 16 Bolt M8x35 Lifting pedal Lift frame Shaft Bolt M8x25 Lifting pedal assembly Shaft Retaining ring 12 Caster assembly Wheel Bolt M8x20 Shaft retaining 8 Nut M8 Bushing Washer 8 Wheel Spring washer 8...
