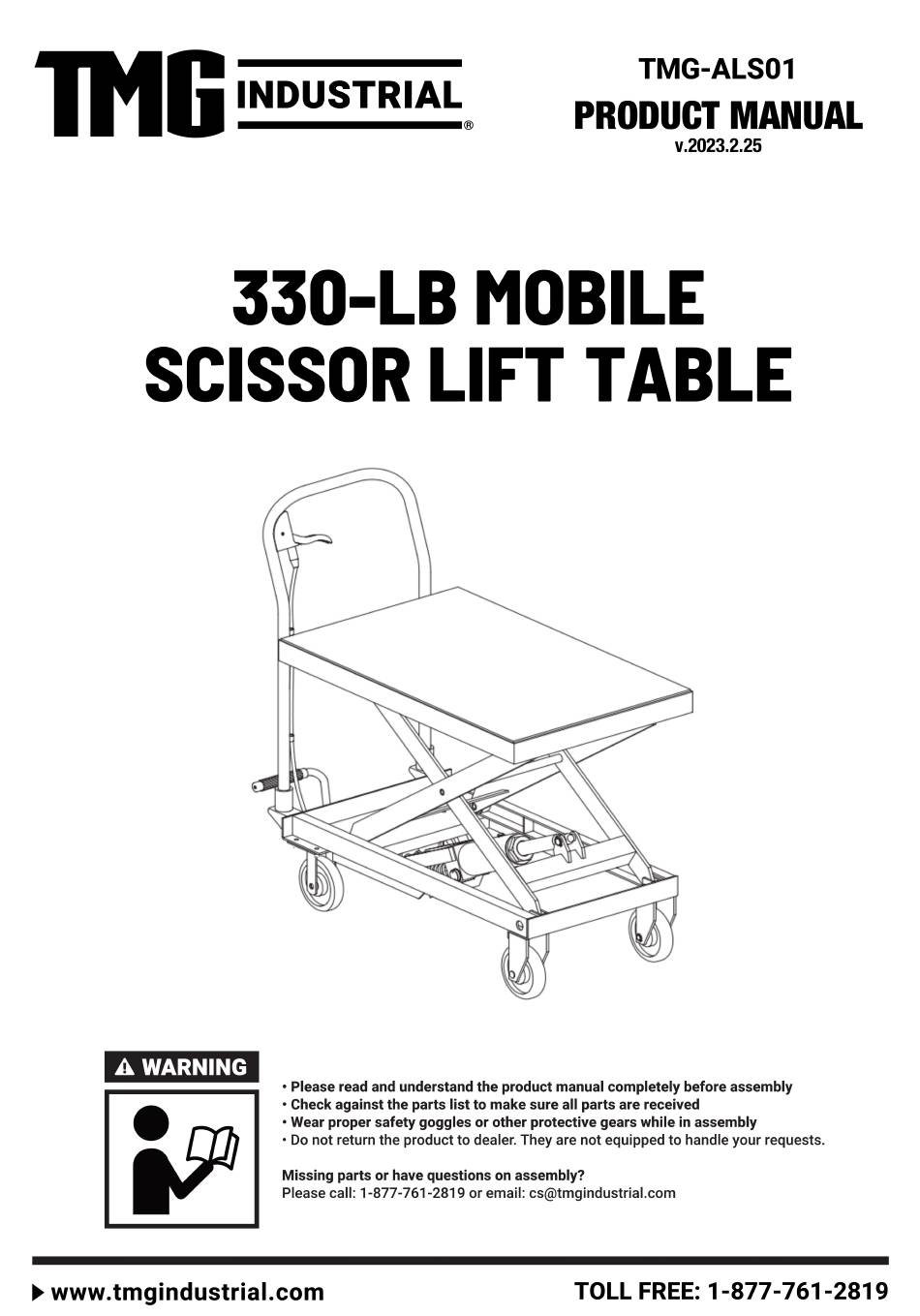

Summary of Contents for TMG TMG-ALS01
- Page 2 ISO VG 15 SAFETY MARKINGS Congratulations on your purchase of a TMG Industrial hydraulic lift table. With proper care this table should bring you years of service. WARNING - Read, study and follow all instructions before operating this device. Failure to heed these instructions may result in personal injury and/or property damage.
- Page 3 SAFETY PRECAUTIONS WARNING WARNING-DO NOT EXCEED RATED CAPACITY WARNING - Do not use the Hydraulic Table in lifting or moving or persons. WARNING - This table was designed for use on hard, level surfaces capable of sustaining the load. Use on other than hard, level surfaces could result in load instability and possible loss of load resulting in property damage and personal injury.
- Page 4 HYDRAULIC TABLE CART PARTS LIST www.tmgindustrial.com TOLL FREE: 1-877-761-2819...
- Page 5 PARTS LIST DESCRIPTION DESCRIPTION Lifting pedal Pump Bolt M8x25 Shaft Retaining ring 12 Lifting pedal assembly Lift frame Caster assembly Shaft Shaft retaining 8 Shaft Retaining ring 8 Bushing Wheel Wheel Bolt M8x20 Base assembly Nut M8 Bolt M8x22 Washer 8 Zipper part Spring washer 8 Step handle...
