OZtrail FAST FRAME BLOCKOUT Owner's Manual page 2

B LOCKOUT FAST FR AME 10 PERS ON

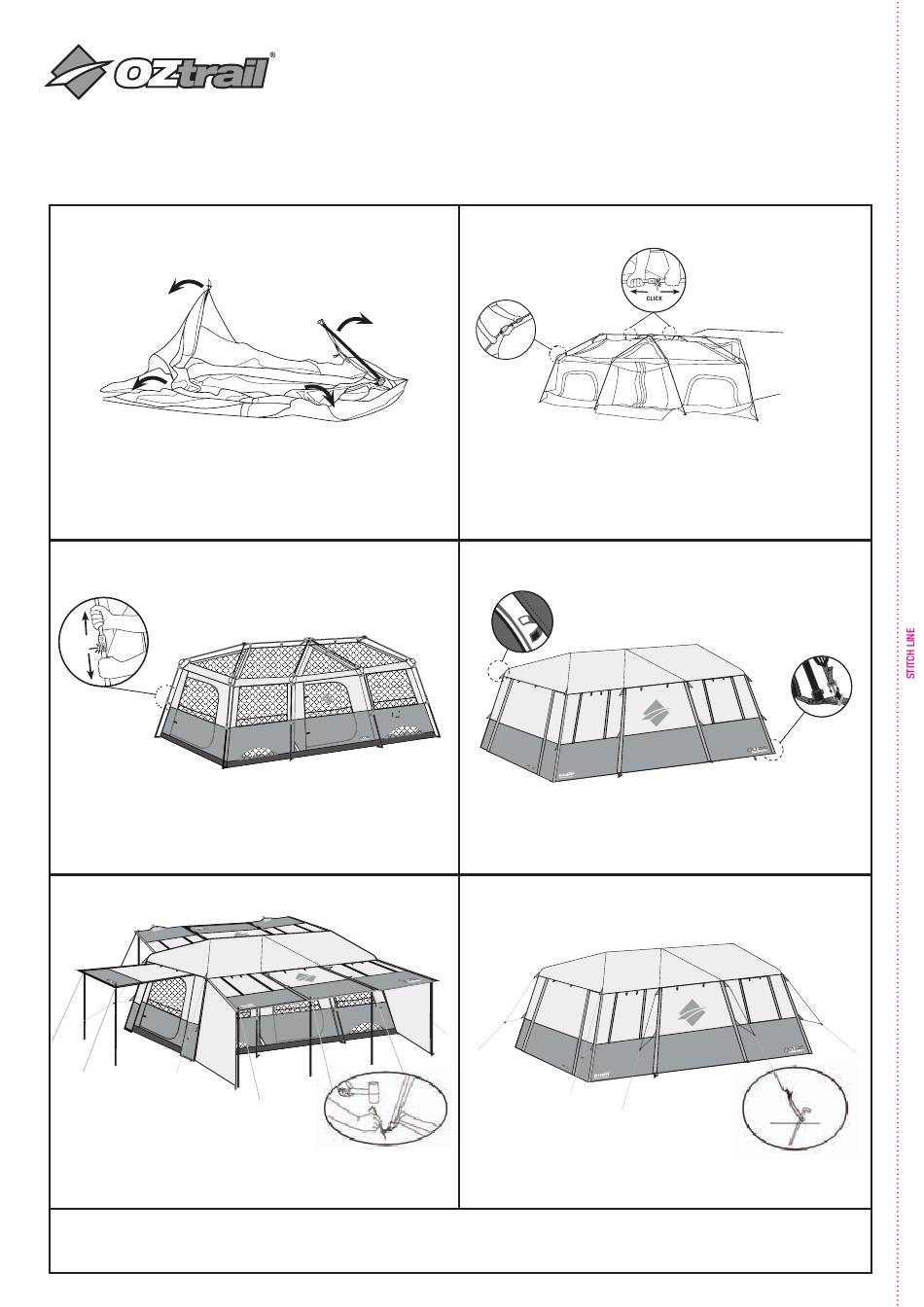

STEP 1: LAYOUT THE INNER TENT
• Unfold the inner tent and outstretch over a flat, clear area
• Arrange the door so it is facing your desired area for entry & exit
• Fold leg poles away from the center of the tent, so the roof
framing stands up
STEP 3: ERECT THE TENT
CLICK
• Extend the vertical frame legs until they click into position
• Repeat on the legs in the center and other corners of the tent
• Place rainfly over the Inner tent so red webbing on the fly face
the rear of the tent
STEP 5: ASSEMBLE THE AWNINGS
• Use the awning poles and additional ropes to suspending the
door panel overhead
• Peg out the tent and fly around the perimeter
REMEMBER TO COMPLETELY LOWER LEGS BEFORE COLLAPSING HORIZONTAL ROOF POLES
TENT OWNERS MANUAL
TO TAKE DOWN THE TENT, REVERSE PREVIOUS STEPS
STEP 2: RAISE THE ROOF
• Locate roof poles and lift upwards from base, to the
horizontal position.
• The leg poles will angle at joints and partially stand up
• BEFORE raising the legs:
Lengthen the roof poles by extending Horizontally until they
click into place
STEP 4: SECURE FLY TO INNER TENT
• Secure rain fly to tent with Velcro tabs located on underside
of rain fly
• Connect the fly to the tent using red and grey buckles on
tent corners
STEP 6: ALWAYS PEG OUT AND USE
• In windy and rainy conditions, awnings must be
dismantled, and doors must be closed, and guy ropes
must be set out
PACK UP:
Roof Pole
Legs
GUY ROPES
