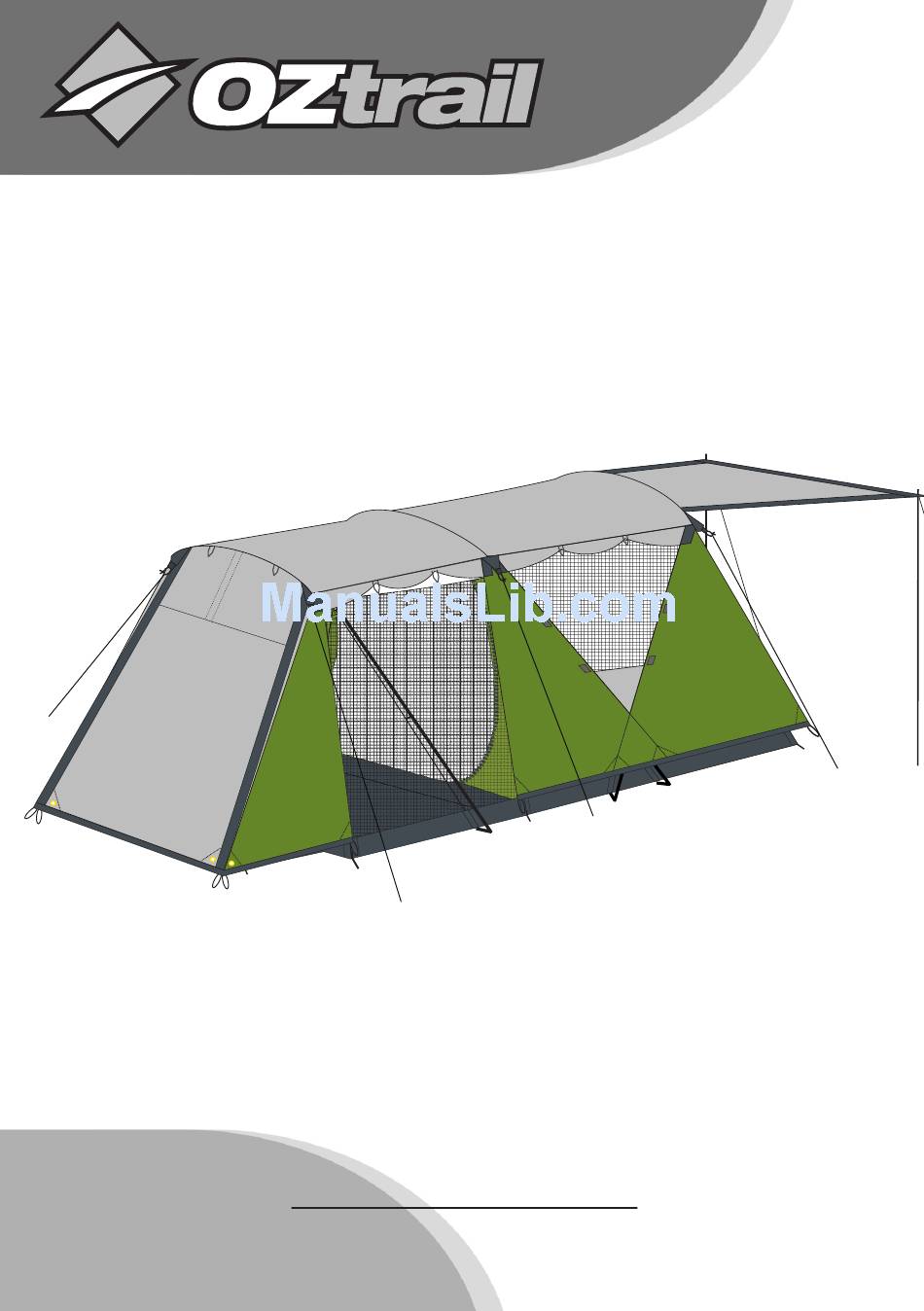

Owners Manual
PEAK TWIN DOME
www.oztrail.com.au
DTC-PET-C
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PEAK TWIN DOME and is the answer not in the manual?

Questions and answers

Related Manuals for OZtrail PEAK TWIN DOME

Summary of Contents for OZtrail PEAK TWIN DOME

  • Page 1 Owners Manual PEAK TWIN DOME www.oztrail.com.au DTC-PET-C...
  • Page 2 We recommend that you set up this product before you leave for your trip. Check that all parts are present and that you familiarise yourself with the assembly and disassembly of the product. If you have any questions, your OZtrail dealer will be happy tp help you.
  • Page 3 Product And Parts...
  • Page 4 Assembly Instructions Step 1 Choosing the Site Select a sheltered camp site protected from the wind that will not allow water to pond under the tent Floor. Clear a level area of all stones, twigs, etc. Step 2 Laying out the tent Unpack the contents of your tent.
  • Page 5 Assembly Instructions Step 6 Standing up the tent Select one of the six steel wall poles, insert an end into the remaining opening of the 2-way hub and insert the opposite end of the pole onto the corresponding Pin and Ring assembly at the base of the tent, the correct pin is not directly below, the steel wall poles sit inclined along the side wall at approximately 45 degrees, see figure 3.
  • Page 6 Figures And Illustrations Figure 1 Peg Points Figure 2...
  • Page 7 Figures And Illustrations Figure 3 J Hook Ring & Pin Figure 4...
  • Page 8 Disassembly Instructions Step 1 On the fly close windows, awnings and doors, release guy ropes and Posibrace™ Velcro™ points that attach the fly to the poles and unhook all base hooks. You can now remove fly from tent. Lay fly flat on ground and fold fly in half, third or quarters. The width of the folded fly should be the length of the pole bag.

  • Page 9: Folding Instructions

    Folding Instructions Fold tent into a The width of Rectangular shape the tent should not exceed the length of the pole bag Front of tent R OLL (door unzipped)

  • Page 10: Warranty

    In addition, defects resulting from intentional damage, negligence or unreasonable use will void this warranty. If the product is defective within the terms of this warranty, OZtrail will repair or replace defective parts at no cost to the purchaser. Please note the shipping charges to and from the OZtrail warehouse or original place of purchase are not covered under warranty and are the responsibility of the purchaser.

  • Page 11: Important Safety And Care Information

    Important Safety And Care Information PLEASE READ BEFORE SETTING UP YOUR TENT/SHELTER CAMP SAFE - SAFETY HABITS The fabric may burn if left in continuous contact with a flame from any source. Also, the application of any foreign substance to the tent fabric may render the flame resistant properties ineffective.

  • Page 12: Prolonging The Life Of Your Tent/Shelter

    •Temporary use only. Although our fabrics are treated for extra UV resistance, continuous exposure to sun light will break the fabric down. Fading of colour is an early warning sign. OZtrail products are not designed as permanent dwellings or structures. •During rain always lower awnings to avoid water ponding.

  • Page 13: Understanding Waterproofness

    Understanding Waterproofness What is not covered by warranty! OZtrail tents use waterproof and water repellent fabrics. However, with the addition of seams, zips and other desirable features a recreational tent will not be as waterproof as a car, house or other solid structures. The following are common examples of how water can enter a tent: - Condensation - When warm moist air meets cooler air, condensation occurs.
  • Page 14 Replacing shock-cord in tent poles Use this procedure to replace broken or untied Shock-Cord:- 1. Start by cutting the Shock-Cord to two thrirds of the length of the Tent Pole 2. Feed the cord through the first pole section and tie a double knot. The knot will catch on the end of the fibreglass pole inside the ferrule.
  • Page 15 Zips Reducing the risk of jamming fabric in the zip ~ • When using the zip, hold the pull-tab between your thumb and forefinger with your thumb facing you. •As you are closing the zip clear the way in front and under the zip slider using the back of your hand, and cup the zip slider underneath with your remaining 3 fingers.
  • Page 16 Check out www.oztrail.com.au for other great products from OZtrail Leisure Products Imported by: OZtrail Leisure Products PO Box 1, Sumner Park QLD 4074 www.oztrail.com.au Made in China...
