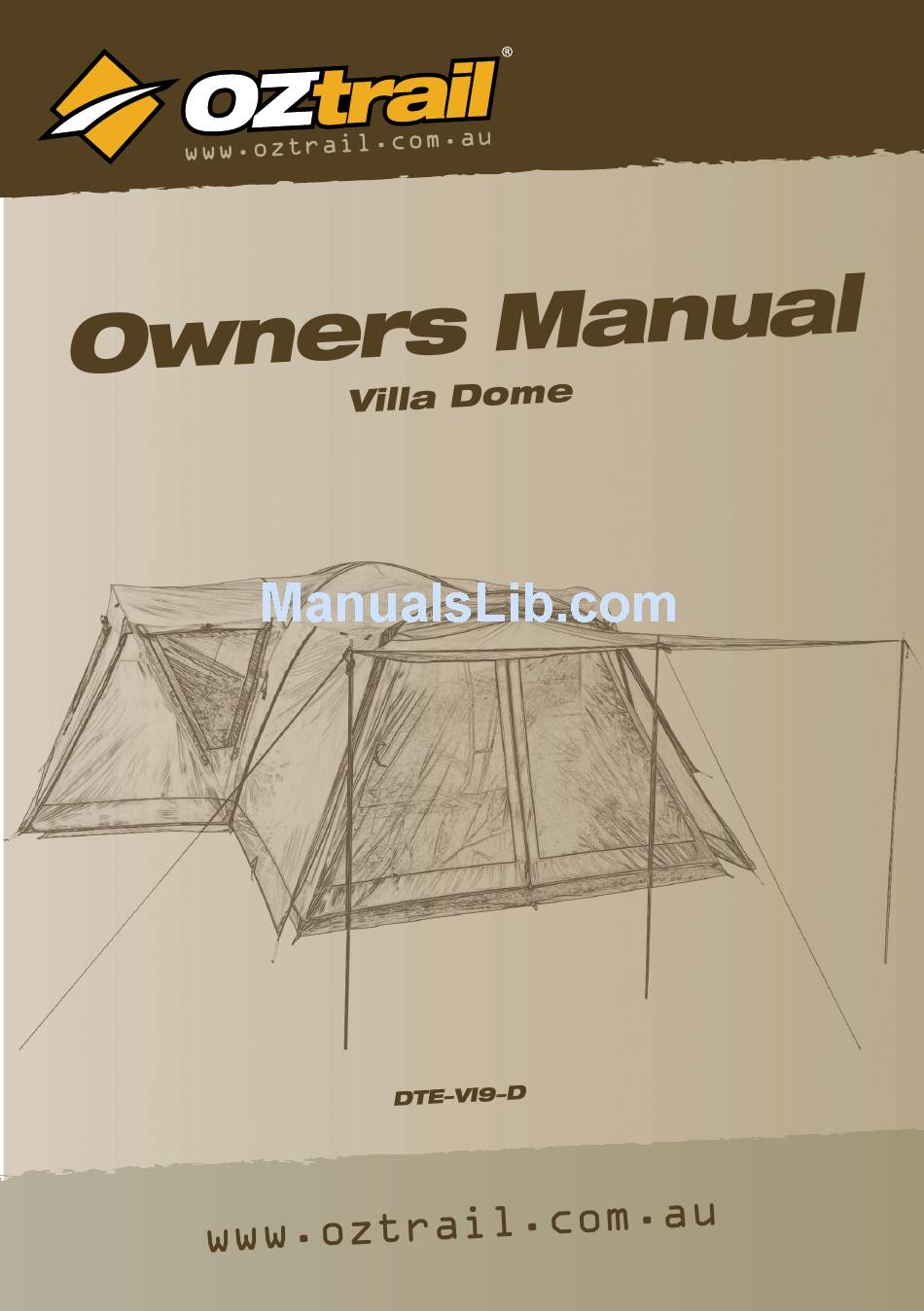

OZtrail Villa Dome Owner's Manual

OZtrail Villa Dome Owner's Manual

Dome tent

Advertisement

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Villa Dome and is the answer not in the manual?

Questions and answers

Summary of Contents for OZtrail Villa Dome

  • Page 2: Table Of Contents

    • Total insect protection with ultra fine No-See-Um mesh HELPFUL HINT OZtrail advises to read your owner’s manual • Oversize easy-step D doors and wide T doors for fully and assemble your tent before going convenient access...
  • Page 3: Products And Parts

    If you have any questions, your 2 x Grey fibreglass middle poles  OZtrail dealer will be happy to help you. with a pole cap on one end, red sticker ...
  • Page 4: Assembly Instructions

    Assembly Instructions Step 1 Choose the site 11mm 648cm Select a sheltered camp site protected from the wind that will not allow water to pond under 11mm 553cm the tent Floor. Clear a level area of all stones, twigs, etc. 159cm 11mm Step 2 Lay out the tent...
  • Page 5 Assembly Instructions cont. Figure 6. Allow the poles to bow into their HELPFUL HINT natural curve at this stage. While holding the Before attempting this step it helps to pole in position, beginning at the base and open the doors of the tent. This allows for working your way towards the apex of the the air to enter into the tent as you raise it.
  • Page 6 Assembly Instructions cont. Now connect the hooks along the base of the fly to the corresponding ring around the base of the inner tent, see Figure 11. Figure 8 Step 8 Install the rain fly Figure 10 With the unfolded fly sheet on the ground, ensure that you have the front and the back of the fly aligned correctly with the tent.
  • Page 7: Disassembly Instructions

    Disassembly Instructions Step 7 Lay the folded fly over the folded inner tent. Beginning at the back portion of the Fly and inner tent bundle roll forward firmly allowing trapped air to escape. It may help to use the bag of tent poles as a rolling pin ensuring the tent edges are kept straight as you roll.
  • Page 8: Warranty

    Warranty This OZtrail product is warranted for two HELPFUL HINT: years from date of purchase. OZtrail agrees AVOIDINg MOULD AND MILDEW during the warranty period to repair any manufacturing defects in the product or, at You should always pack your products both its option, replace the product with another clean and completely dry.
  • Page 9: Prolonging The Life Of Your Tent/Shelter

    Fading of colour is an early • When removing pegs, do not use the warning sign. OZtrail products are not webbing or corner of the tent as your designed as permanent dwellings or handle.
  • Page 10: Important Safety And Care Information

    Please read before setting up your tent/shelter CAMP SAFE - SAFETY HABITS TO PREVENT INJURY CAUSED BY FIRE Fabrics used in the construction of OZtrail tents/ • Do not pitch the tent/shelter near a camp shelters are designed to meet fire retardant fire or any other flame source standards US CPIA-84.
  • Page 11 Important Safety and Care Information cont. To prevent injury caused by your camping environment • Do not pitch your tent/shelter on an area that could get flooded • Do not pitch your tent/shelter near cliffs in case of collapse or rock fall •...
  • Page 12: Replacing The Shock-Cord

    Poles and Shock Cord you will be ensuring that elasticity. you get the best performance and life out of your OZtrail Tent. Step Two: Threading the Pole Sections Tie a large knot in the end of the Shock Cord length. This knot needs to be large enough...
  • Page 13 Tent Pole and Shock Cord Replacement cont. Once your new pole is cut to length you can HELPFUL HINT follow the ‘Replacing Shock-Cord’ directions to Towards the end of the Pole Length it may get your Pole Length complete. get quite hard to thread the Pole Sections as the Shock Cord is stretching.
  • Page 14: Understanding Waterproofness

    To prevent this, do not pitch the Know your tent tent over hollows and make sure water drains away from the tent. OZtrail tents are manufactured from waterproof and water repellent fabrics. However, with the STRUCTURAL INTEgRITY addition of seams, zips and other desirable...
  • Page 15: Zips

    Zips REDUCINg THE RISk OF JAMMINg CRIMPINg A ZIP-SLIDER FABRIC IN THE ZIP The most common reason why zips burst open is that the zip slider does not close the coil • When using the zip, hold the pull-tab tightly enough. Wear and tear may cause the between your thumb and forefinger with gap marked A to open up.
  • Page 16 Check out www.oztrail.com.au for other great products from OZtrail Leisure Products Imported by OZtrail Leisure Products • PO Box 1, Sumner Park QLD AUSTRALIA 4074 • Made in China...
