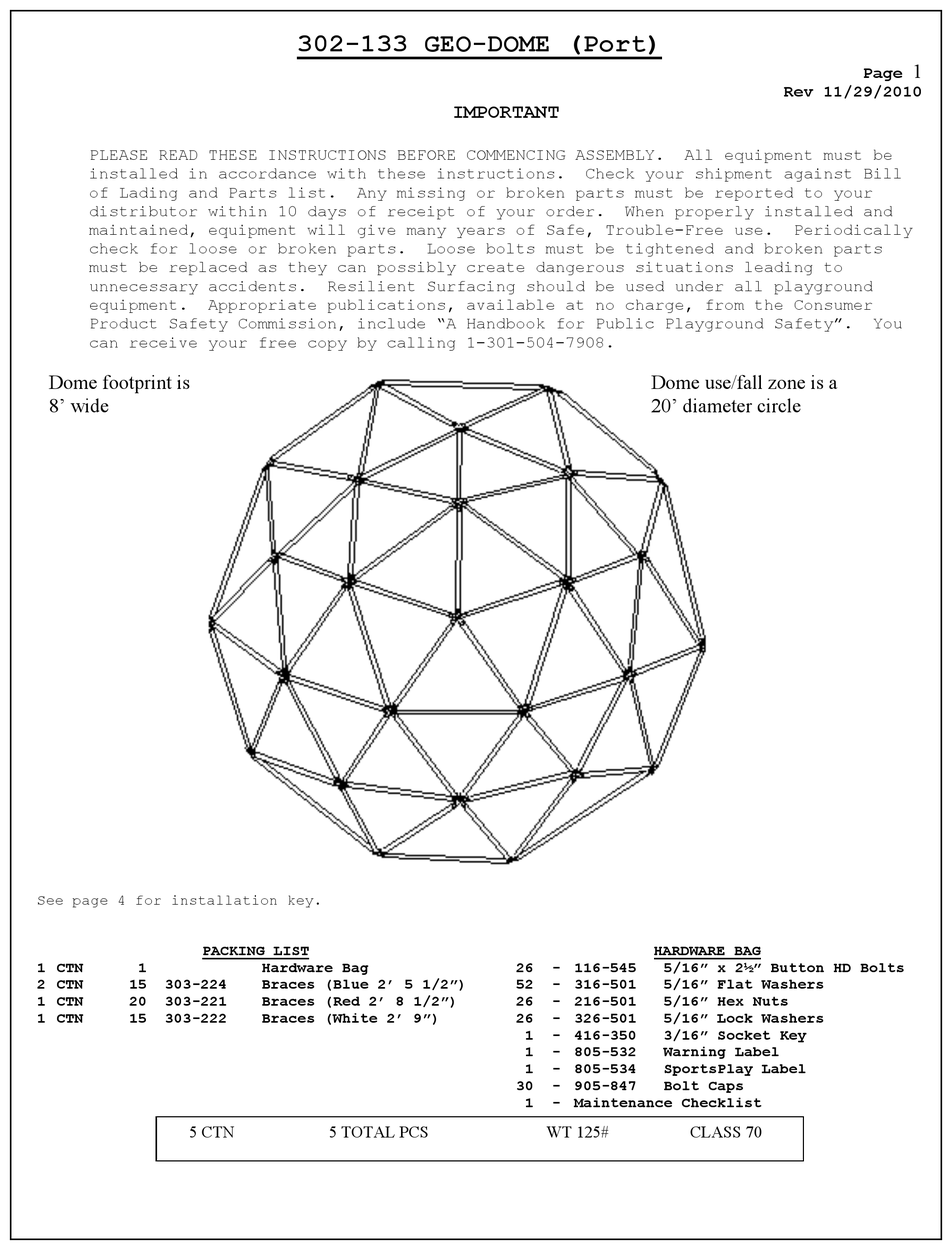

PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY.
installed in accordance with these instructions.
of Lading and Parts list.
distributor within 10 days of receipt of your order.
maintained, equipment will give many years of Safe, Trouble-Free use.
check for loose or broken parts.
must be replaced as they can possibly create dangerous situations leading to
unnecessary accidents.
equipment.
Appropriate publications, available at no charge, from the Consumer
Product Safety Commission, include "A Handbook for Public Playground Safety".
can receive your free copy by calling 1-301-504-7908.
Dome footprint is
8' wide
See page 4 for installation key.
PACKING LIST
1 CTN
1
2 CTN
15
303-224
1 CTN
20
303-221
1 CTN
15
303-222
5 CTN
302-133 GEO-DOME (Port)
Any missing or broken parts must be reported to your
Loose bolts must be tightened and broken parts
Resilient Surfacing should be used under all playground
Hardware Bag
Braces (Blue 2' 5 1/2")
Braces (Red 2' 8 1/2")
Braces (White 2' 9")
5 TOTAL PCS
IMPORTANT
Check your shipment against Bill
When properly installed and
26
- 116-545
52
- 316-501
26
- 216-501
26
- 326-501
1
- 416-350
1
- 805-532
1
- 805-534
30
- 905-847
1
- Maintenance Checklist
WT 125#
Rev 11/29/2010
All equipment must be
Periodically
Dome use/fall zone is a
20' diameter circle
HARDWARE BAG
5/16" x 2½" Button HD Bolts
5/16" Flat Washers
5/16" Hex Nuts
5/16" Lock Washers
3/16" Socket Key
Warning Label
SportsPlay Label
Bolt Caps
CLASS 70
1
Page
You
Advertisement
Table of Contents
Related Manuals for SportsPlay Equipment 302-133
Summary of Contents for SportsPlay Equipment 302-133
- Page 1 302-133 GEO-DOME (Port) Page Rev 11/29/2010 IMPORTANT PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY. All equipment must be installed in accordance with these instructions. Check your shipment against Bill of Lading and Parts list. Any missing or broken parts must be reported to your distributor within 10 days of receipt of your order.
- Page 2 302-133 GEO-DOME (Port) Page Rev 11/29/2010 GENERAL USE/FALL ZONE & FOOTING RECOMMENDATIONS: Stationary & Portable equipment – Use/Fall Zones should Extend a MINIMUM of 6 Feet in All Directions from the Perimeter of the Equipment Ground Space. This Area should be covered with the required amount of Resilient Safety Surfacing Material .
- Page 3 302-133 GEO-DOME (Port) Page Rev 11/29/2010 ASSEMBLY AND INSTALLATION: NOTE: Extra long bolts are supplied to make assembly possible. After assembly is complete, all threaded ends of bolts protruding beyond nuts must be cut off and/or peened to eliminate sharp edges.
- Page 4 302-133 GEO-DOME (Port) Page Rev 11/29/2010 Installation Key...
