PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY.
must be installed in accordance with these instructions.
against Bill of Lading and Parts list.
reported to your distributor within 10 days of receipt of your order.
properly installed and maintained, equipment will give many years of Safe,
Trouble-Free use.
must be tightened and broken parts must be replaced as they can possibly
create dangerous situations leading to unnecessary accidents.
Surfacing should be used under all playground equipment.
publications, available at no charge, from the Consumer Product Safety
Commission, include "A Handbook for Public Playground Safety".
receive your free copy by calling 1-301-504-7908.
PACKING LIST
CTN
1
2
803-925
1
363-505
2
363-950
1 Carton
361-505 Teeter Spring Rider
IMPORTANT
Periodically check for loose or broken parts.
Hardware Bag
Poly Seat Board

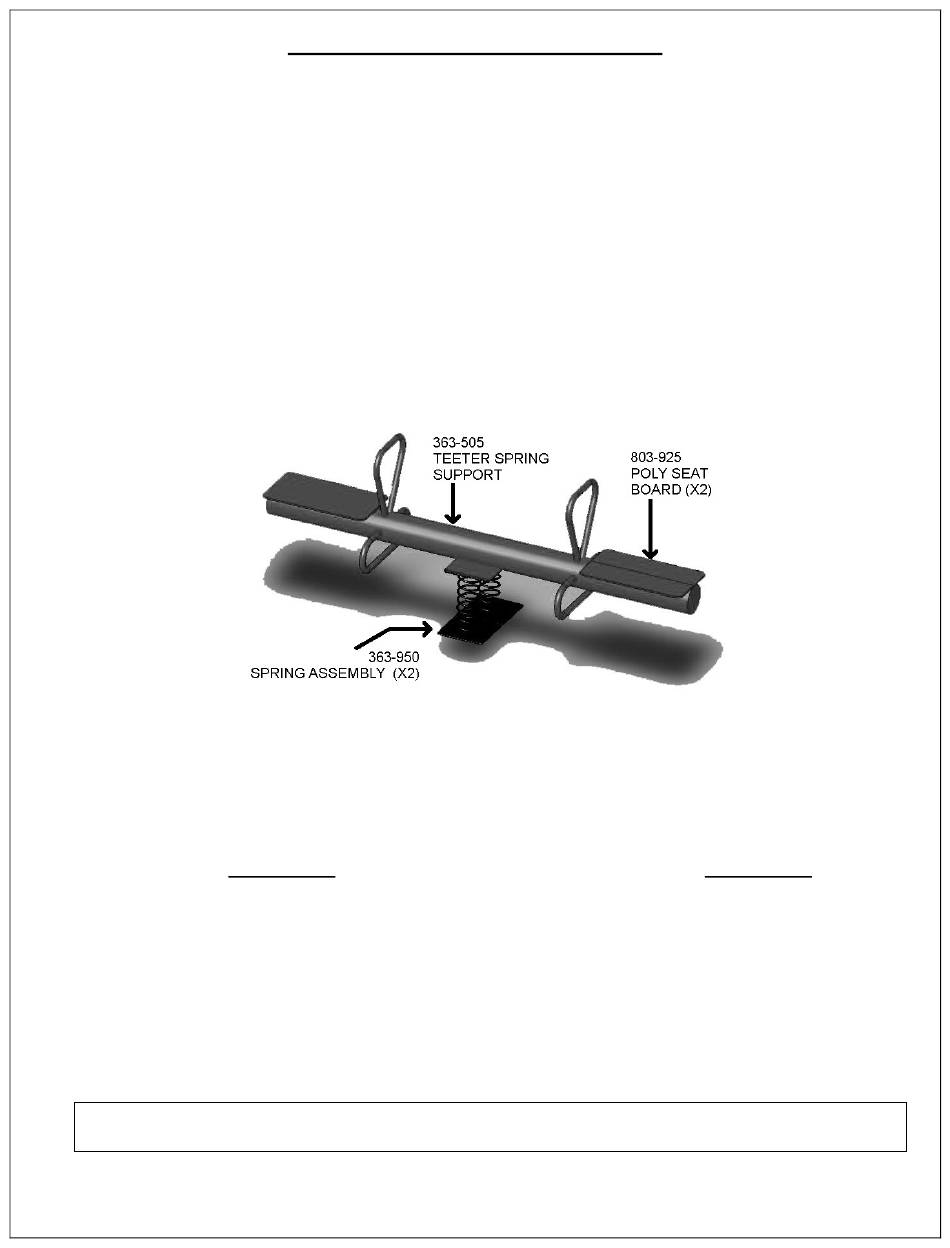

Teeter Spring Support
Spring Assembly
230 # Weight
Check your shipment
Any missing or broken parts must be
Appropriate
8
126-703
8
116-535
8
196-644
8
216-601
8
226-502
16
226-602
8
316-501
40
316-601
1
416-505
1
416-350
1
805-532
1
805-534
1
1
Page
Rev. 01/25/2011
All equipment
When
Loose bolts
Resilient
You can
HARDWARE BAG
3/8" x 1" BH bolt
5/16" x 1 1/2" BH bolt
3/8" x 8" Anchor bolt
3/8" Hex Nut
5/16" Nylon Insert Lock Nut
3/8" Nylon Insert Lock Nut
5/16" Flat Washer
3/8" Flat Washer
7/32" Long arm socket key
3/16" Socket Key
Warning Label
SportsPlay Label
Maintenance Checklist
Class 70
Advertisement
Table of Contents
Related Manuals for SportsPlay Equipment Teeter Spring Rider
Summary of Contents for SportsPlay Equipment Teeter Spring Rider
- Page 1 361-505 Teeter Spring Rider Page Rev. 01/25/2011 IMPORTANT PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING ASSEMBLY. All equipment must be installed in accordance with these instructions. Check your shipment against Bill of Lading and Parts list. Any missing or broken parts must be reported to your distributor within 10 days of receipt of your order.
- Page 2 361-505 Teeter Spring Rider Page Rev. 01/25/2011 GENERAL USE/FALL ZONE & FOOTING RECOMMENDATIONS Stationary & Portable equipment – Use/Fall zones should extend a minimum of 6 feet in all directions from the perimeter of the equipment ground space. This area should be covered with the required amount of resilient safety surfacing material.
- Page 3 361-505 Teeter Spring Rider Page Rev. 01/25/2011 ASSEMBLY AND INSTALLATION: NOTE: All threaded ends of bolts protruding beyond nuts must be cut off and/or peened to eliminate sharp edges. No more than two threads should extend beyond face of nut.
- Page 4 361-505 Teeter Spring Rider Page Rev. 01/25/2011 STEP #4: Bolt the teeter rider to the upper spring plate using 3/8” x 1” Button Head Bolts, Washers and Lock Nuts. Tighten Securely. STEP #5: Install resilient surfacing according to manufacturer’s instructions.
