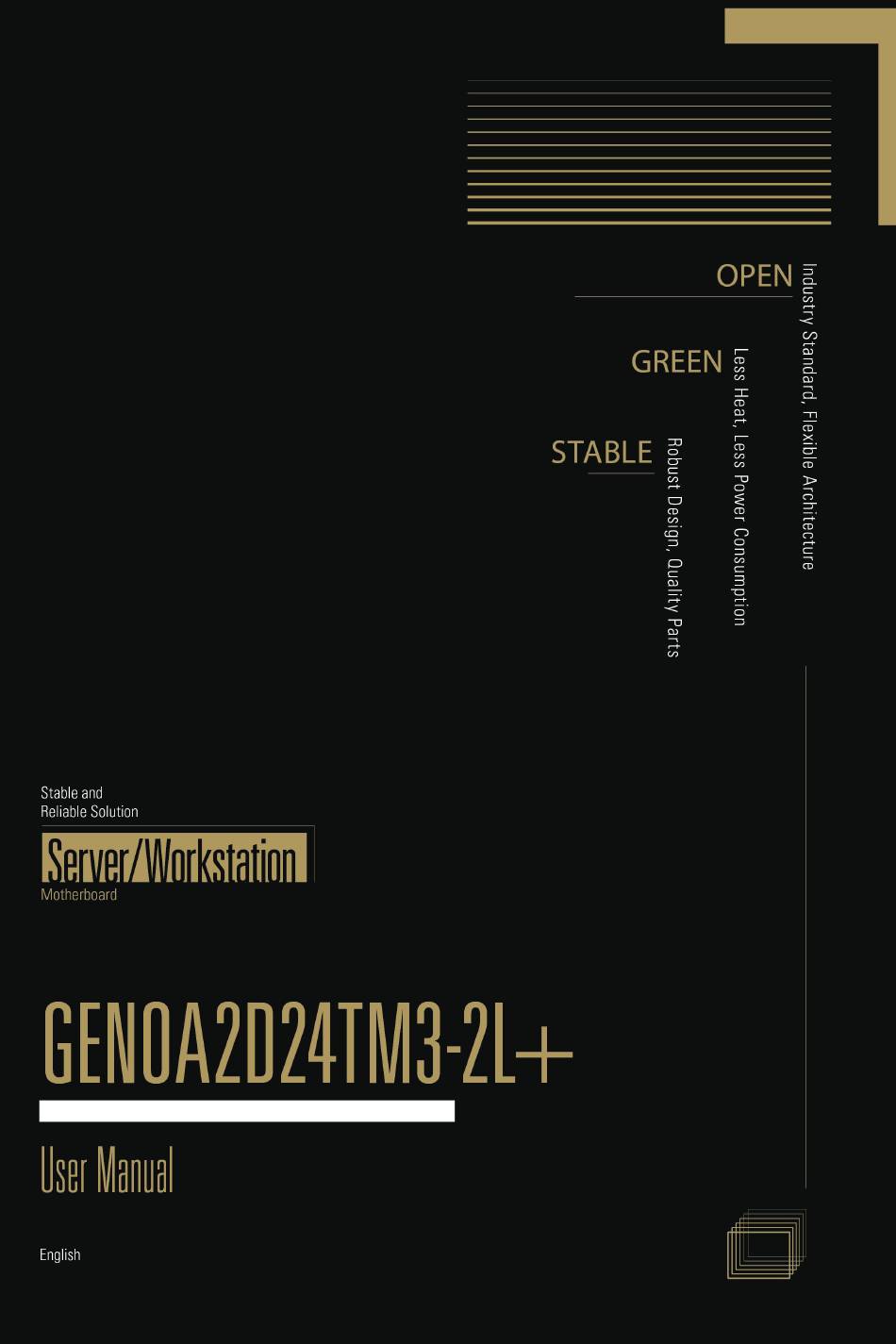

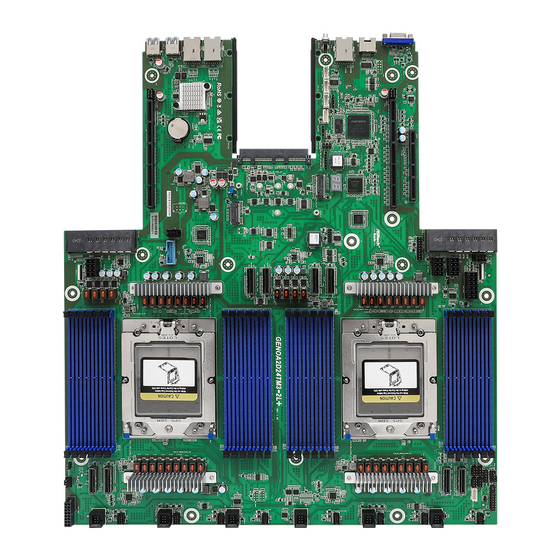

  • Page 1 GENOA2D24TM3-2L+ User Manual Version 1.0 Published May 2023 Copyright©2022 ASRock Rack INC. All rights reserved.
  • Page 2 In no event shall ASRock Rack, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of...
  • Page 3 ASRock Rack follows the green design concept to design and manufacture our products, and makes sure that each stage of the product life cycle of ASRock Rack product is in line with global environmental regulations. In addition, ASRock Rack disclose the relevant information based on regulation requirements.

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Specifications Unique Features Motherboard Layout Onboard LED Indicators I/O Panel Block Diagram Chapter 2 Installation Screw Holes Pre-installation Precautions Installing the CPU Installing the Memory Modules (DIMM) Expansion Slots (PCI Express Slots) Jumper Setup Onboard Headers and Connectors Dr.
  • Page 5 3.1.1 UEFI Menu Bar 3.1.2 Navigation Keys Main Screen 3.2.1 Motherboard Information 3.2.2 Processor Information 3.2.3 Memory Information Advanced Screen 3.3.1 CPU Configuration 3.3.2 Chipset Configuration 3.3.3 Storage Configuration 3.3.4 NVMe Configuration 3.3.5 ACPI Configuration 3.3.6 USB Configuration 3.3.7 Super IO Configuration 3.3.8 Serial Port Console Redirection 3.3.9 H/W Monitor 3.3.10 PCI Subsystem Settings...
  • Page 6 Security 3.4.1 Install Default Secure Boot Keys 3.4.2 Clear Secure Boot Keys 3.4.3 Key Management Server Mgmt 3.5.1 BMC Network Configuration 3.5.2 DNS Configuration 3.5.3 System Event Log 3.5.4 BMC Tools Event Logs Boot Screen Exit Screen Chapter 4 Software Support Download and Install Operating System Download and Install Software Drivers Contact Information...

  • Page 7: Chapter 1 Introduction

    In case any modifications of this manual occur, the updated version will be available on ASRock Rack website without further notice. Find the latest memory and CPU support lists on ASRock Rack website as well. ASRock Rack’s Website: www.ASRockRack.com For technical support related to this motherboard, please visit the website for more infor- mation: http://www.asrockrack.com/support/...

  • Page 8: Specifications

    1.2 Specifications GENOA2D24TM3-2L+ Physical Status Form Factor Proprietary T-shape Dimension 18.86" x17.01" Processor System Supports AMD EPYC™ 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors Socket Dual Socket SP5 (LGA6096) Thermal Design 450-500W Power (TDP) Chipset System on Chip System Memory Supported DIMM 12+12 DIMM slots (1DPC)
  • Page 9 System BIOS Type AMI UEFI BIOS; 256 Mb (32MB) SPI Flash ROM Features ASRock Rack Instant Flash, ACPI 6.4 and abouve compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) Internal Connectors/Headers PSU Connector 2 (CRPS IN +12V/+12VSB, max. 2700W)
  • Page 10 SMbus Header IPMB Header USB3.2 (Gen1) 1 (19-pin, 1 USB3.2 Gen1) Header 1 (26-pin, 1 USB3.2 Gen1 and 2 USB2.0) Clear CMOS 1 (contact pads) LED Indicators Standby Power LED 1 (3.3VSB) 80 debug port LED Fan Fail LED BMC Heartbeat LED 1 Support OS Microsoft®...

  • Page 11: Unique Features

    . With this utility, press the <F6> key during the POST or the <F2> key to enter into the BIOS setup menu to access ASRock Rack Instant Flash. Just launch this tool and save the new BIOS file to the USB flash drive, floppy disk or hard drive, then update the BIOS only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

  • Page 12: Motherboard Layout

    1.4 Motherboard Layout 14 15 11 12 47.9cm (18.86in) CPU0_FAN1 DDR5_L1 AUX_PANEL2 NMI_BTN1 PANEL1 DDR5_K1 FAN7_1 SATA_SGPIO3 AUX_PANEL1 SATA_SGPIO1 DDR5_J1 CPU0_HSBP1 OCP_PWR1 SATA_SGPIO2 SATA_SGPIO4 DDR5_I1 GPU_PWR1 HSBP_PWR1 MCIO1 DDR5_H1 DDR5_G1 MCIO2 GPU_PWR2 FAN1 FAN1_1 FRNT_VGA1 PCIE1 PCIE2 VGA1 CPU0 FAN2_1 COM1 FAN2 ASPEED...
  • Page 13 GENOA2D24TM3-2L+ Description GPU Power Connector (GPU_PWR2) GPU Power Connector (GPU_PWR1) Power Supply Unit Connector (PSU_CON1) OCP Power Connector (OCP_PWR1) Auxiliary Panel Header (AUX_PANEL1) HDD Backplane Power Connector (HSBP_PWR1) 3 x 288-pin DDR5 DIMM Slots (DDR5_G1, DDR5_I1, DDR5_K1)* 3 x 288-pin DDR5 DIMM Slots (DDR5_H1, DDR5_J1, DDR5_L1)* SATA SGPIO Connector (SATA_SGPIO2) SATA SGPIO Connector (SATA_SGPIO1) System Panel Header (PANEL1)
  • Page 14 Description System Fan Connector (FAN5_1) (for 1U system) System Fan Connector (FAN5) (for 2U system) AMD Socket SP5 (LGA6096) (CPU1) System Fan Connector (FAN6_1) (for 1U system) Mini Cool Edge IO Connector (MCIO3) System Fan Connector (FAN6) (for 2U system) Micro-Fit HDD Backplane Power Connector (HSBP_PWR2) CPU1 Fan Connector (CPU1_FAN1) Mini Cool Edge IO Connector (MCIO4)
  • Page 15 GENOA2D24TM3-2L+ Description PCIE 5.0 x16 Slot (PCIE1) Front VGA Header (FRNT_VGA1) * For DIMM installation and configuration instructions, please see p.20 (Installation of Memory Modules (DIMM)) for more details.

  • Page 16: Onboard Led Indicators

    1.5 Onboard LED Indicators Item Status Description SYS_LED System fault SB_PWR1 Green STB PWR ready LED_FAN7 FAN7_1 failed LED_FAN1 FAN1_1 failed LED_FAN2 FAN2_1 failed LED_FAN3 FAN3_1 failed LED_FAN8 FAN8_1 failed LED_FAN4 FAN4_1 failed LED_FAN5 FAN5_1 failed LED_FAN6 FAN6_1 failed BMC_LED1 Green BMC heartbeat LED...

  • Page 17: I/O Panel

    GENOA2D24TM3-2L+ 1.6 I/O Panel No. Description No. Description 1G LAN RJ-45 Port VGA Port (VGA1) (LAN1, shared NIC)** RJ-45 Port (COM1) 1G LAN RJ-45 Port (LAN2)** IPMI LAN Header (IPMI_LAN1)* USB 3.2 Gen1 Port (USB3_1) UID Switch (UID1) USB 3.2 Gen1 Port (USB3_2) LAN Port LED Indications *There is an LED on each side of IPMI LAN port.
  • Page 18 *There is an LED on each side of 1G LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port 1G LAN Port (LAN1, LAN2) LED Indications Activity / Link LED Speed LED Status Description...

  • Page 19: Block Diagram

    GENOA2D24TM3-2L+ 1.7 Block Diagram...

  • Page 20: Chapter 2 Installation

    Chapter 2 Installation This is a Proprietary T-shape form factor (18.86”x17.01”) motherboard. Before installing the motherboard, study the configuration of the chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries and motherboard damages.

  • Page 21: Installing The Cpu

    GENOA2D24TM3-2L+ 2.3 Installing the CPU 1. Before inserting the CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 23 GENOA2D24TM3-2L+ Carr ier Frame with CPU Rail Frame Please make sure that the carrier frame with CPU is closely attached to the rail frame while inserting it. Install the carrier frame with CPU. Don’t separate them.
  • Page 25 GENOA2D24TM3-2L+ Set your torque wrench to 1.54 in-lb. One fourth a turn each time. Tighten the screws in a sequential order 1 > 2 > 3 > 4 > 5 > 6. Loosen the screws in a reverse order. 10-4 10-2 10-5 10-6...

  • Page 26: Installing The Memory Modules (Dimm)

    2.4 Installing the Memory Modules (DIMM) This motherboard provides twenty-four 288-pin DDR5 (Double Data Rate 5) DIMM slots in two groups, and supports Single Channel Memory Technology. 1. It is not allowed to install a DDR, DDR2, DDR3 or DDR4 memory module into a DDR5 slot;...
  • Page 27 GENOA2D24TM3-2L+ Recommended Memory Configurations...

  • Page 28: Expansion Slots (Pci Express Slots)

    2.5 Expansion Slots (PCI Express Slots) There are three PCI Express slots on this motherboard. PCIE slots: PCIE3 (2 PCIe5.0 x16 / 2 CXL1.1 x16 slot, from CPU1) is used for PCI Express x32 lane width cards. PCIE2 (2 PCIe5.0 x16 / 2 CXL1.1 x16 slot, from CPU0) is used for PCI Express x32 lane width cards.

  • Page 29: Jumper Setup

    GENOA2D24TM3-2L+ 2.6 Jumper Setup The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short” when a jumper cap is placed on these 2 pins.

  • Page 30: Onboard Headers And Connectors

    2.7 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header Connect the power switch, PLED+ PLED-...
  • Page 31 GENOA2D24TM3-2L+ Auxiliary Panel Connector This header supports multiple (26-pin AUX_PANEL1) functions on the front panel, (see p.6, No. 5) including front panel SMB, internet status indicator. AUX_PANEL1 +3VSB +3VSB LOCATORLED+ PLED- LOCATORLED- System Fault LED- HDLED- PWRBTN# LED_PWR LAN1_LINK RESET# SMB_DATA SMB_CLK LOCATORBTN#...
  • Page 32 Auxiliary Panel Header This header supports multiple (18-pin AUX_PANEL2) functions on the front panel, (see p.6, No. 14) including the front panel SMB, and internet status indicator. A. Front panel SMBus connecting pin (6-1 pin FPSMB) This header allows user to connect SMBus (System Management Bus) equipment. It can be used for communication between peripheral equipment in the system, which has slower transmission rates, and power management equipment.
  • Page 33 Fan) connectors. If planning FAN_VOLTAGE FAN_SPEED (4-pin CPU1_FAN1) to connect a 3-Pin CPU fan, FAN_SPEED_CONTROL (see p.6, No. 42) please connect it to Pin 1-3. FAN_SPEED_CONTROL FAN_SPEED *For more details, please refer to the FAN_VOLTAGE Cooler QVL list on the ASRock Rack website.
  • Page 34 System Fan Connectors Please connect fan cables to the fan connectors and match (for 2U system) (6-pin FAN1) the black wire to the ground (see p.6, No. 21) pin. All fans support Fan (6-pin FAN2) Control. (see p.6, No. 24) (6-pin FAN3) (see p.6, No.
  • Page 35 GENOA2D24TM3-2L+ BMC SMB Headers These headers are used for the (5-pin BMC_SMB1) SMBUS devices. BMC_SMB_PRESENT_1_N (see p.6, No. 63) Power (5-pin BMC_SMB2) BMC_SMBCLK (see p.6, No. 64) BMC_SMBDATA (5-pin BMC_SMB3) (see p.6, No. 65) TPM-SPI Header This connector supports SPI SPI_DQ2 SPI_CS0 (13-pin TPM_BIOS_PH1)
  • Page 36 Micro-Fit Backplane Please connect a 16-pin power +12V Power Connector cable to this connector to (16-pin HSBP_PWR2) connect a HDD. (see p.6, No. 41) Micro-Fit Riser Card Please connect a 6-pin power +12V Power Connector cable to this connector to (6-pin RISER_PWR1) connect a riser card or an +3VSB...
  • Page 37 GENOA2D24TM3-2L+ Clear CMOS Pad This allows user to clear (CLRMOS1) the data in CMOS. To clear (see p.6, No. 53) CMOS, take out the CMOS battery and short the Clear CMOS Pad. PWM Configuration This header is used for PWM Header configurations.
  • Page 38 MCIO1 Pin Definition Defeinition Pin Defeinition G3_RX_DP7 G3_TX_DP7 G3_RX_DN7 G3_TX_DN7 G3_RX_DP6 G3_TX_DP6 G3_RX_DN6 G3_TX_DN6 BP_TYPE1_R SCL1 2WIRE_RESET1_N SDA1 PERST_BUF1_N G3_RX_DP5 G3_TX_DP5 G3_RX_DN5 G3_TX_DN5 G3_RX_DP4 G3_TX_DP4 G3_RX_DN4 G3_TX_DN4 G3_RX_DP3 G3_TX_DP3 G3_RX_DN3 G3_TX_DN3 G3_RX_DP2 G3_TX_DP2 G3_RX_DN2 G3_TX_DN2 INT_N PERST_BUF2_N G3_RX_DP1 G3_TX_DP1 G3_RX_DN1 G3_TX_DN1 G3_RX_DP0 G3_TX_DP0...
  • Page 39 GENOA2D24TM3-2L+ MCIO2 Pin Definition Defeinition Pin Defeinition G3_RX_DP15 G3_TX_DP15 G3_RX_DN15 G3_TX_DN15 G3_RX_DP14 G3_TX_DP14 G3_RX_DN14 G3_TX_DN14 BP_TYPE1_R SCL1 2WIRE_RESET2_N SDA1 PERST_BUF1_N G3_RX_DP13 G3_TX_DP13 G3_RX_DN13 G3_TX_DN13 G3_RX_DP12 G3_TX_DP12 G3_RX_DN12 G3_TX_DN12 G3_RX_DP11 G3_TX_DP11 G3_RX_DN11 G3_TX_DN11 G3_RX_DP10 G3_TX_DP10 G3_RX_DN10 G3_TX_DN10 BP_TYPE2 INT_N PERST_BUF2_N G3_RX_DP9 G3_TX_DP9 G3_RX_DN9 G3_TX_DN9...
  • Page 40 MCIO3 Pin Definition Defeinition Pin Defeinition G1_RX_DP7 G1_TX_DP7 G1_RX_DN7 G1_TX_DN7 G1_RX_DP6 G1_TX_DP6 G1_RX_DN6 G1_TX_DN6 BP_TYPE1 2WIRE_RESET3_N PERST_BUF1_N G1_RX_DP5 G1_TX_DP5 G1_RX_DN5 G1_TX_DN5 G1_RX_DP4 G1_TX_DP4 G1_RX_DN4 G1_TX_DN4 G1_RX_DP3 G1_TX_DP3 G1_RX_DN3 G1_TX_DN3 G1_RX_DP2 G1_TX_DP2 G1_RX_DN2 G1_TX_DN2 BP_TYPE2 INT_N PERST_BUF2_N G1_RX_DP1 G1_TX_DP1 G1_RX_DN1 G1_TX_DN1 G1_RX_DP0 G1_TX_DP0 G1_RX_DN0...
  • Page 41 GENOA2D24TM3-2L+ MCIO4 Pin Definition Defeinition Pin Defeinition G1_RX_DP15 G1_TX_DP15 G1_RX_DN15 G1_TX_DN15 G1_RX_DP14 G1_TX_DP14 G1_RX_DN14 G1_TX_DN14 BP_TYPE1 2WIRE_RESET4_N PERST_BUF1_N G1_RX_DP13 G1_TX_DP13 G1_RX_DN13 G1_TX_DN13 G1_RX_DP12 G1_TX_DP12 G1_RX_DN12 G1_TX_DN12 G1_RX_DP11 G1_TX_DP11 G1_RX_DN11 G1_TX_DN11 G1_RX_DP10 G1_TX_DP10 G1_RX_DN10 G1_TX_DN10 BP_TYPE2 INT_N PERST_BUF2_N G1_RX_DP9 G1_TX_DP9 G1_RX_DN9 G1_TX_DN9 G1_RX_DP8 G1_TX_DP8...
  • Page 42 MCIO5 Pin Definition Defeinition Pin Defeinition P0_RX_DP15 P0_TX_DP15 P0_RX_DN15 P0_TX_DN15 P0_RX_DP14 P0_TX_DP14 P0_RX_DN14 P0_TX_DN14 BP_TYPE1_R SCL1 2WIRE_RESET5_N SDA1 PERST_BUF1_N PRSNT1_N P0_RX_DP13 P0_TX_DP13 P0_RX_DN13 P0_TX_DN13 P0_RX_DP12 P0_TX_DP12 P0_RX_DN12 P0_TX_DN12 P0_RX_DP11 P0_TX_DP11 P0_RX_DN11 P0_TX_DN11 P0_RX_DP10 P0_TX_DP10 P0_RX_DN10 P0_TX_DN10 BP_TYPE2 INT_N PERST_BUF2_N P0_RX_DP9 P0_TX_DP9 P0_RX_DN9 P0_TX_DN9...
  • Page 43 GENOA2D24TM3-2L+ MCIO6 Pin Definition Defeinition Pin Defeinition P0_RX_DP7 P0_TX_DP7 P0_RX_DN7 P0_TX_DN7 P0_RX_DP6 P0_TX_DP6 P0_RX_DN6 P0_TX_DN6 BP_TYPE1_R SCL1 2WIRE_RESET6_N SDA1 PERST_BUF1_N P0_RX_DP5 P0_TX_DP5 P0_RX_DN5 P0_TX_DN5 P0_RX_DP4 P0_TX_DP4 P0_RX_DN4 P0_TX_DN4 P0_RX_DP3 P0_TX_DP3 P0_RX_DN3 P0_TX_DN3 P0_RX_DP2 P0_TX_DP2 P0_RX_DN2 P0_TX_DN2 BP_TYPE2 INT_N PERST_BUF2_N P0_RX_DP1 P0_TX_DP1 P0_RX_DN1 P0_TX_DN1...
  • Page 44 MCIO7 Pin Definition Defeinition Pin Defeinition P3_RX_DP15 P3_TX_DP15 P3_RX_DN15 P3_TX_DN15 P3_RX_DP14 P3_TX_DP14 P3_RX_DN14 P3_TX_DN14 BP_TYPE1 2WIRE_RESET7_N PERST_BUF1_N P3_RX_DP13 P3_TX_DP13 P3_RX_DN13 P3_TX_DN13 P3_RX_DP12 P3_TX_DP12 P3_RX_DN12 P3_TX_DN12 P3_RX_DP11 P3_TX_DP11 P3_RX_DN11 P3_TX_DN11 P3_RX_DP10 P3_TX_DP10 P3_RX_DN10 P3_TX_DN10 BP_TYPE2 INT_N PERST_BUF2_N P3_RX_DP9 P3_TX_DP9 P3_RX_DN9 P3_TX_DN9 P3_RX_DP8 P3_TX_DP8 P3_RX_DN8...
  • Page 45 GENOA2D24TM3-2L+ MCIO8 Pin Definition Defeinition Pin Defeinition P3_RX_DP7 P3_TX_DP7 P3_RX_DN7 P3_TX_DN7 P3_RX_DP6 P3_TX_DP6 P3_RX_DN6 P3_TX_DN6 BP_TYPE1 SCL1 2WIRE_RESET8_N SDA1 PERST_BUF1_N P3_RX_DP5 P3_TX_DP5 P3_RX_DN5 P3_TX_DN5 P3_RX_DP4 P3_TX_DP4 P3_RX_DN4 P3_TX_DN4 P3_RX_DP3 P3_TX_DP3 P3_RX_DN3 P3_TX_DN3 P3_RX_DP2 P3_TX_DP2 P3_RX_DN2 P3_TX_DN2 BP_TYPE2 SCL2_R SDA2_R PERST_BUF2_N P3_RX_DP1 P3_TX_DP1 P3_RX_DN1...

  • Page 46: Dr. Debug

    2.8 Dr. Debug Dr. Debug is used to provide code information, which makes troubleshooting even easier. Please see the diagrams below for reading the Dr. Debug codes. Code Description 0x10 PEI_CORE_STARTED 0x11 PEI_CAR_CPU_INIT 0x15 PEI_CAR_NB_INIT 0x19 PEI_CAR_SB_INIT 0x31 PEI_MEMORY_INSTALLED 0x32 PEI_CPU_INIT 0x33 PEI_CPU_CACHE_INIT...
  • Page 47 GENOA2D24TM3-2L+ 0x63 DXE_CPU_INIT 0x68 DXE_NB_HB_INIT 0x69 DXE_NB_INIT 0x6A DXE_NB_SMM_INIT 0x70 DXE_SB_INIT 0x71 DXE_SB_SMM_INIT 0x72 DXE_SB_DEVICES_INIT 0x78 DXE_ACPI_INIT 0x79 DXE_CSM_INIT 0x90 DXE_BDS_STARTED 0x91 DXE_BDS_CONNECT_DRIVERS 0x92 DXE_PCI_BUS_BEGIN 0x93 DXE_PCI_BUS_HPC_INIT 0x94 DXE_PCI_BUS_ENUM 0x95 DXE_PCI_BUS_REQUEST_RESOURCES 0x96 DXE_PCI_BUS_ASSIGN_RESOURCES 0x97 DXE_CON_OUT_CONNECT 0x98 DXE_CON_IN_CONNECT...
  • Page 48 0x99 DXE_SIO_INIT 0x9A DXE_USB_BEGIN 0x9B DXE_USB_RESET 0x9C DXE_USB_DETECT 0x9D DXE_USB_ENABLE 0xA0 DXE_IDE_BEGIN 0xA1 DXE_IDE_RESET 0xA2 DXE_IDE_DETECT 0xA3 DXE_IDE_ENABLE 0xA4 DXE_SCSI_BEGIN 0xA5 DXE_SCSI_RESET 0xA6 DXE_SCSI_DETECT 0xA7 DXE_SCSI_ENABLE 0xA8 DXE_SETUP_VERIFYING_PASSWORD 0xA9 DXE_SETUP_START 0xAB DXE_SETUP_INPUT_WAIT 0xAD DXE_READY_TO_BOOT 0xAE DXE_LEGACY_BOOT...
  • Page 49 GENOA2D24TM3-2L+ 0xAF DXE_EXIT_BOOT_SERVICES 0xB0 RT_SET_VIRTUAL_ADDRESS_MAP_BEGIN 0xB1 RT_SET_VIRTUAL_ADDRESS_MAP_END 0xB2 DXE_LEGACY_OPROM_INIT 0xB3 DXE_RESET_SYSTEM 0xB4 DXE_USB_HOTPLUG 0xB5 DXE_PCI_BUS_HOTPLUG 0xB6 DXE_NVRAM_CLEANUP 0xB7 DXE_CONFIGURATION_RESET 0xF0 PEI_RECOVERY_AUTO 0xF1 PEI_RECOVERY_USER 0xF2 PEI_RECOVERY_STARTED 0xF3 PEI_RECOVERY_CAPSULE_FOUND 0xF4 PEI_RECOVERY_CAPSULE_LOADED 0xE0 PEI_S3_STARTED 0xE1 PEI_S3_BOOT_SCRIPT 0xE2 PEI_S3_VIDEO_REPOST...
  • Page 50 0xE3 PEI_S3_OS_WAKE 0x50 PEI_MEMORY_INVALID_TYPE 0x53 PEI_MEMORY_NOT_DETECTED 0x55 PEI_MEMORY_NOT_INSTALLED 0x57 PEI_CPU_MISMATCH 0x58 PEI_CPU_SELF_TEST_FAILED 0x59 PEI_CPU_NO_MICROCODE 0x5A PEI_CPU_ERROR 0x5B PEI_RESET_NOT_AVAILABLE 0xD0 DXE_CPU_ERROR 0xD1 DXE_NB_ERROR 0xD2 DXE_SB_ERROR 0xD3 DXE_ARCH_PROTOCOL_NOT_AVAILABLE 0xD4 DXE_PCI_BUS_OUT_OF_RESOURCES 0xD5 DXE_LEGACY_OPROM_NO_SPACE 0xD6 DXE_NO_CON_OUT 0xD7 DXE_NO_CON_IN...
  • Page 51 GENOA2D24TM3-2L+ 0xD8 DXE_INVALID_PASSWORD 0xD9 DXE_BOOT_OPTION_LOAD_ERROR 0xDA DXE_BOOT_OPTION_FAILED 0xDB DXE_FLASH_UPDATE_FAILED 0xDC DXE_RESET_NOT_AVAILABLE 0xE8 PEI_MEMORY_S3_RESUME_FAILED 0xE9 PEI_S3_RESUME_PPI_NOT_FOUND 0xEA PEI_S3_BOOT_SCRIPT_ERROR 0xEB PEI_S3_OS_WAKE_ERROR...

  • Page 52: Identification Purpose Led/Switch

    2.9 Identification purpose LED/Switch The UID button can be used to locate the server being processed behind the server rack. Unit Identification When the UID button on the purpose LED/Switch front or rear panel is pressed, (UID1) the front/rear UID blue LED indicator will be truned on.

  • Page 53: Dual Lan And Teaming Operation Guide

    GENOA2D24TM3-2L+ 2.10 Dual LAN and Teaming Operation Guide Dual LAN with Teaming enabled on this motherboard allows two single connections to act as one single connection(s) for twice the transmission bandwidth, making data transmission more effective and improving the quality of transmission of distant images. Fault tolerance on the dual LAN network prevents network downtime by transferring the workload from a failed port to a working port.

  • Page 54: Ssd Module Installation Guide (M2_1)

    2.11 M.2 SSD Module Installation Guide (M2_1) The M.2 Socket (M2_1, Key M) supports type 2230/2242/2260/2280 M.2 PCI Express module up to Gen3x4 (8GT/s x4). Installing the M.2 SSD Module Step 1 Prepare a M.2 SSD module and the screw. Step 2 Depending on the PCB type and length of the M.2 SSD module, find...
  • Page 55 GENOA2D24TM3-2L+ Step 3 Move the standoff based on the module type and length. The standoff is placed at the nut location D by default. Skip Step 3 and 4 and go straight to Step 5 when using the default nut. Otherwise, release the standoff by hand.

  • Page 56: Ssd Module Installation Guide (M2_2)

    2.12 M.2 SSD Module Installation Guide (M2_2) The M.2 Socket (M2_2, Key M) supports type 2242/2280 M.2 PCI Express module up to Gen3 x4 (8GT/s x4). Installing the M.2 SSD Module Step 1 Prepare a M.2 SSD module and the screw.
  • Page 57 GENOA2D24TM3-2L+ Step 3 Move the standoff based on the module type and length. Skip Step 3 and 4 and go straight to Step 5 when using the default nut. Otherwise, release the standoff by hand. Step 4 Peel off the yellow protective film on the nut to be used.

  • Page 58: Chapter 3 Uefi Setup Utility

    Chapter 3 UEFI Setup Utility 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure the system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. Run the UEFI SETUP UTILITY when starting up the computer. Please press <F2> or <Del> during the Power- On-Self-Test (POST) to enter the UEFI SETUP UTILITY;...

  • Page 59: Navigation Keys

    GENOA2D24TM3-2L+ 3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Tab>...

  • Page 60: Main Screen

    3.2 Main Screen Once entering the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. The Main screen provides system overview information and allows user to set the system time and date. Motherboard Information Enter this item to view the motherboard information. Processor Information Enter this item to view the processor information.

  • Page 61: Motherboard Information

    GENOA2D24TM3-2L+ 3.2.1 Motherboard Information Press [Enter] to view the information of the motheboard. 3.2.2 Processor Information Press [Enter] to view the information of the processor.

  • Page 62: Memory Information

    3.2.3 Memory Information Press [Enter] to view the information of the memory.

  • Page 63: Advanced Screen

    GENOA2D24TM3-2L+ 3.3 Advanced Screen This section allowed to configure the following items: CPU Configuration, Chipset Con- figuration, Storage Configuration, NVMe Configuration, ACPI Configuration, USB Con- figuration, Super IO Configuration, Serial Port Console Redirection, H/W Monitor, PCI Subsystem Settings, AMD CBS, AMD PBS, PSP Firmware Versions, Network Stack Con- figuration, Driver Health, Tls Auth Configuration and Instant Flash.

  • Page 64: Cpu Configuration

    3.3.1 CPU Configuration SVM Mode Enable or disable CPU Virtualization. Node 0 Information Select this item to display the Node 0 Information. Node 1 Information Select this item to display the Node 1 Information.

  • Page 65: Chipset Configuration

    GENOA2D24TM3-2L+ 3.3.2 Chipset Configuration Onboard VGA Use this to enable or disable the Onboard VGA function. Onboard LAN Use this item to enable or disable the Onboard LAN function. MCIO Mode Selection Select this item to configure SATA or PCIE in MCIO port. MCIO5/6 Mode Selection Select SATA or PCIE work in MCIO port.
  • Page 66 PCIE Link Speed Select PCIE Link Speed. MCIO1/2/3/4 Link Speed Select MCIO1/2/3/4 Link Speed. PCIE Hot Plug Select this item to configure PCIE Hot Plug globally. PCIE1/2/3 Hot Plug Enable or disable PCIE1(CPU0 P2)/PCIE2(CPU0 P1)/PCIE2(CPU0 P3)/PCIE3(CPU1 P0)/ PCIE3(CPU1 P1) Hot Plug. MCIO1/2/3/4/5/6/7/8 Hot Plug Enable or disable MCIO Hot Plug.

  • Page 67: Storage Configuration

    GENOA2D24TM3-2L+ 3.3.3 Storage Configuration SATA Hot Plug Enable or disable the SATA Hot Plug Function.

  • Page 68: Nvme Configuration

    3.3.4 NVMe Configuration The NVMe Configuration displays the NVMe controller and Drive information. Launch NVMe driver Select this item to enable or disable launch NVMe driver.

  • Page 69: Acpi Configuration

    GENOA2D24TM3-2L+ 3.3.5 ACPI Configuration PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN. Ring-In Power On Use this item to enable or disable Ring-In signals to turn on the system from the power- soft-off mode.

  • Page 70: Usb Configuration

    3.3.6 USB Configuration The USB Configuration displays the USB Controllers and USB Devices informations.

  • Page 71: Super Io Configuration

    GENOA2D24TM3-2L+ 3.3.7 Super IO Configuration Serial Port 1 Configuration Use this item to set parameters of Serial Port 1 (COM1). Serial Port Use this item to enable or disable the serial port. Change Settings Use this item to select an optimal setting for Super IO device. SOL Configuration Use this item to set parameters of SOL.

  • Page 72: Serial Port Console Redirection

    3.3.8 Serial Port Console Redirection COM1 / SOL Console Redirection Use this option to enable or disable Console Redirection. If this item is set to Enabled that specifies a COM Port can be used for Console Redirection. Console Redirection Settings Use this option to configure Console Redirection Settings, and specify how the host computer and the remote computer (which are be connected to) will exchange data.
  • Page 73 GENOA2D24TM3-2L+ Bits Per Second Use this item to select the serial port transmission speed. The speed used in the host computer and the client computer must be the same. Long or noisy lines may require lower transmission speed. The options include [9600], [19200], [38400], [57600] and [115200]. Data Bits Use this item to set the data transmission size.
  • Page 74 Out-of-Band Mgmt Port Microsof t Windows Emergenc y Management Ser v ices (EMS) a l lows for remote management of a Windows Server OS through a serial port. Terminal Type EMS Use this item to select the preferred terminal emulation type for out-of-band management. It is recommended to select [VT-UTF8].

  • Page 75: H/W Monitor

    GENOA2D24TM3-2L+ 3.3.9 H/W Monitor In this section, it allows to monitor the status of the hardware on the system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.

  • Page 76: Pci Subsystem Settings

    3.3.10 PCI Subsystem Settings Re-Size BAR Support If system has Resizable BAR capable PCIe Devices, this option enables or disables Resizable BAR support. SR-IOV Support If system has SR-IOV capable PCIe Devices, this option enables or disables Single Root IO Virtualization Support.

  • Page 77: Amd Cbs

    GENOA2D24TM3-2L+ 3.3.11 AMD CBS CPU Common Options Use this item to configure CPU Common options. DF Common Options Use this item to configure DF Common options. UMC Common Options Use this item to configure UMC Common options. NBIO Common Options Use this item to configure NBIO Common options.

  • Page 78: Amd Pbs

    3.3.12 AMD PBS Use this item to configure AMD CPM RAS related settings. RAS Periodic SMI Control Use this to enable or disable Periodic SMI for polling [MCA Threshold] error. SMI Threshold This limits the number of [MCA Threshold and Deferred Error SMI source] per a unit time.
  • Page 79 GENOA2D24TM3-2L+ PCIe UnCorr GHES Notify Type This specifies the notification type for PCIe uncorrected errors. PCIe Root Port Corr Err Mask Reg Use this to initialize the PCIe AER corrected error mask register of root port. PCIe Root Port UnCorr Err Mask Reg Use this to initialize the PCIe AER uncorrected error mask register of root port.

  • Page 80: Psp Firmware Versions

    3.3.13 PSP Firmware Versions The PSP Firmware Verions displays the version information of ABL, PSP BootLoader, SMU FW, SEV FW, PHY FW, MPIO FW, TF MPDMA FW, PM MPDMA FW, GMI FW, RIB FW, SEC FW, PMU FW, EMCR FW and uCode B1.

  • Page 81: Network Stack Configuration

    GENOA2D24TM3-2L+ 3.3.14 Network Stack Configuration Network Stack Use this item to enable or disable UEFI Network Stack. IPv4 PXE Support Use this item to enable or disable IPv4 PXE boot support. If disabled, IPv4 PXE boot support will not be available. IPv4 HTTP Support Use this item to enable or disable IPv4 HTTP boot support.
  • Page 82 Media detect count Number of times the presence of media will be checked. Use either +/- or numeric keys to set the value.

  • Page 83: Driver Health

    GENOA2D24TM3-2L+ 3.3.15 Driver Health Broadcom NXE Gigabit Ethernet Driver Provides Health Status for the Drivers/Controllers. Broadcom NXE Gigabit Ethernet Driver Provides Health Status for the Drivers/Controllers...

  • Page 84: Tls Auth Configuration

    3.3.16 Tls Auth Configuration Server CA Configuration Press <Enter> to configure Server CA. Enroll Cert Press <Enter> to enroll cert. Delete Cert Press <Enter> to delete cert. Client Cert Configuration Press <Enter> to configure Client Cert.

  • Page 85: Instant Flash

    GENOA2D24TM3-2L+ 3.3.17 Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows user to update system UEFI without entering operating systems first like MS- ® DOS or Windows . Just save the new UEFI file to the USB flash drive, floppy disk or hard drive and launch this tool, then update the UEFI only in a few clicks without preparing an additional floppy diskette or other complicated flash utility.

  • Page 86: Security

    3.4 Security In this section, set or change the supervisor/user password for the system. For the user password, it also allows to clear it. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 87: Install Default Secure Boot Keys

    GENOA2D24TM3-2L+ 3.4.1 Install Default Secure Boot Keys Please install default secure boot keys if it is the first time to use secure boot. Select Clear Secure Boot keys item to clear the asigned secure boot keys.

  • Page 88: Clear Secure Boot Keys

    3.4.2 Clear Secure Boot Keys Force System to Setup Mode-Clear all Secure Boot Variables. Change takes effect after re- boot.

  • Page 89: Key Management

    GENOA2D24TM3-2L+ 3.4.3 Key Management In this section, expert user can modify Secure Boot Policy variables without full authenti- cation. Factory Key Provision Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode. Install Default Secure Boot Keys Please install default secure boot keys if it’s the first time to use the secure boot.
  • Page 90 c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Factory, External, Mixed Key Exchange Keys(KEK) Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2.
  • Page 91 GENOA2D24TM3-2L+ a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin) d) EFI_CERT_SHAXXX 2. Authenticated UEFI Variable 3. EFI PE/COFF Image(SHA256) Key Source: Factory, External, Mixed Authorized TimeStamps(dbt) Enroll Factory Defaults or load certificates from a file: 1. Public Key Certificate in: a) EFI_SIGNATURE_LIST b) EFI_CERT_X509 (DER) c) EFI_CERT_RSA2048 (bin)

  • Page 92: Server Mgmt

    3.5 Server Mgmt Wait For BMC Wait For BMC response for specified time out. BMC starts at the same time when BIOS starts during AC power ON. It takes around 255 seconds to initialize Host to BMC interfaces. FRB-2 Timer Select this item to enable or disable FRB-2 timer (POST timer) FRB-2 Timer Timeout Select this item to define the FRB-2 Time Expiration between 1 to 30 value.
  • Page 93 GENOA2D24TM3-2L+ OS Wtd Timer Policy Configure how the system should respond if the OS Boot Watchdog Timer expires. If the OS Boot Watchdog Timer is disabled, this item is not available. BMC Network Configuration Select this item to configure BMC network parameters. DNS Configuration Select this item to configure DNS parameters.

  • Page 94: Bmc Network Configuration

    3.5.1 BMC Network Configuration Bonding Setting Use this item to enable or disable bonding, Set this item to enable bonding please enable all Lan channel first. Bond0 Enable Setting Show the Bond0 status is enabled or disabled. Manual Setting IPMI LAN If [No] is selected, the IP address is assigned by DHCP.
  • Page 95 GENOA2D24TM3-2L+ The default login information for the IPMI web interface is: Username: admin Password: admin For more instructions on how to set up remote control environment and use the IPMI man- agement platform, please refer to the IPMI Configuration User Guide or go to the Support website at: http://www.asrockrack.com/support/ipmi.asp VLAN Enabled/Disabled Virtual Local Area Network.

  • Page 96: Dns Configuration

    3.5.2 DNS Configuration Manual DNS Configuration Select this item to manual configure DNS. If [YES] is selected, configure the items below. DNS Service Select this item to enable or disable DNS Service Configuration. Host Name Settings Select this item to automatic or manual Host Name Settings. Bond Register BMC Select this item to enable or disable Bond Register BMC.
  • Page 97 GENOA2D24TM3-2L+ Domain Name Server Setting Select this item to configure DNS Server Settings. IP Priority Select this item to configure IP Priority.

  • Page 98: System Event Log

    3.5.3 System Event Log SEL Components Change this to enable ro disable event logging for error/progress codes during boot. Erase SEL Use this to choose options for earsing SEL. When SEL is Full Use this to choose options for reactions to a full SEL. Log EFI Status Codes Use this item to disable the logging of EFI Status Codes or log only error code or only progress code or both.

  • Page 99: Bmc Tools

    GENOA2D24TM3-2L+ 3.5.4 BMC Tools KCS control Select the KCS interface state after POST end. If [Enabled] is selected, the BMC will remain KCS interface after POST stage. If [Disabled] is selected, the BMC will disable KCS interface after POST stage. Restore AC Power Loss This allows user to set the power state after an unexpected AC/power loss.

  • Page 100: Event Logs

    3.6 Event Logs Change Smbios Event Log Settings Select item to configure the Smbios Event Log Settings. When entering, the items as below are displayed: Smbios Event Log Use this item to enable or disable all features of the SMBIOS Event Logging during system boot.
  • Page 101 GENOA2D24TM3-2L+ Log EFI Status Code Enable or disable the logging of EFI Status Codes as OEM reserved type E0 (if not already converted to legacy). Convert EFI Status Codes to Standard Smbios Type Enable or disable the converting of EFI Status Codes to Standard Smbios Types (Not all may be translated).

  • Page 102: Boot Screen

    3.7 Boot Screen In this section, it will display the available devices the system for user to configure the boot settings and the boot priority. Boot Option #1/#2/#3/#4/#5/#6 Use this item to set the system boot order. UEFI USB Drive BBS Priorities Specifies the Boot Device Priority sequence from available UEFI USB Drives.
  • Page 103 GENOA2D24TM3-2L+ Boot Beep Select whether the Boot Beep should be turned on or off when the system boots up. Please note that a buzzer is needed. Full Screen Logo Use this item to enable or disable OEM Logo. The default value is [Enabled]. CSM (Compatibility Support Module) Select this item to enable or disable the Compatibility Support Module support.

  • Page 104: Exit Screen

    3.8 Exit Screen Save Changes and Exit When selecting this option, the following message “Save configuration changes and exit setup?” will pop-out. Press <F10> key or select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When selecting this option, the following message “Discard changes and exit setup?”...

  • Page 105: Chapter 4 Software Support

    Please download the operating system from the OS manufacturer. Please refer to the OS documentation for more instructions. *Please download the Intel® SATA Floppy Image driver from the ASRock Rack’s website (www.asrockrack.com) to the USB drive while installing OS in SATA RAID mode.

  • Page 106: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting 5.1 Troubleshooting Procedures Follow the procedures below to troubleshoot the system. Always unplug the power cord before adding, removing or changing any hardware compo- nents. Failure to do so may cause physical injuries to personal and damages to mother- board components.
  • Page 107 1. Verify if the battery on the motherboard provides ~3VDC. Install a new battery if it does not. 2. Confirm whether the power supply provides adaquate and stable power. Other problems... 1. Try searching key words related to the problem on ASRock Rack ’s FAQ page: http://www.asrockrack.com/support...

  • Page 108: Technical Support Procedures

    5.2 Technical Support Procedures If having tried the troubleshooting procedures mentioned above and the problems are still unsolved, please contact ASRock Rack’s technical support with the following information: 1. Contact information 2. Model name, BIOS version and problem type. 3. System configuration.
  • Page 109 Contact Information Contact ASRock Rack or want to know more about ASRock Rack, you’re welcome to visit ASRock Rack’s website at http://www.asrockrack.com; or contact the dealer for further information. For technical questions, please submit a support request form at https://event.
