Function Buttons and Indicators:
1. Control Buttons - Hazard Light, Horn, Right Indicator, Headlight, Left Indicator,
Turtle(decelerate), H/L Speed, Rabbit(accelerate).
2. LED Indicators - Status Indicator (Green), Headlight Indicator (Green), Left / Right Indicators
(Green), High/Low Speed Indicator (Green).
3. Connector - 20PIN.
4. LCD Back Light - Blue LEDs illuminate while key on.
Function Descriptions:
5. Full Lighting Control - Headlight , Tail light, Left/Right Indicator, Hazard Light, Brake Light.
6. Speedometer - 7 Segment display (2 1/2 digits + 1 decimal) "km/h" and "mph" symbol.
7. Digital High / Low Speed Control - Low (L) Speed: 1 - 5 Rate, High (H) Speed: 1 - 5 Rate.
8. Power Indicator - Battery charging indicator (6 segments).
9. Malfunction Messages - Error code: 1-7 (1 digit) + LED Indicator.
10. Key On Display - LCD full segments display.
11. Warning Tone Setup - Volume adjustment for tones of Left/Right Indicator, Parking light,
Low voltage warning and horn.

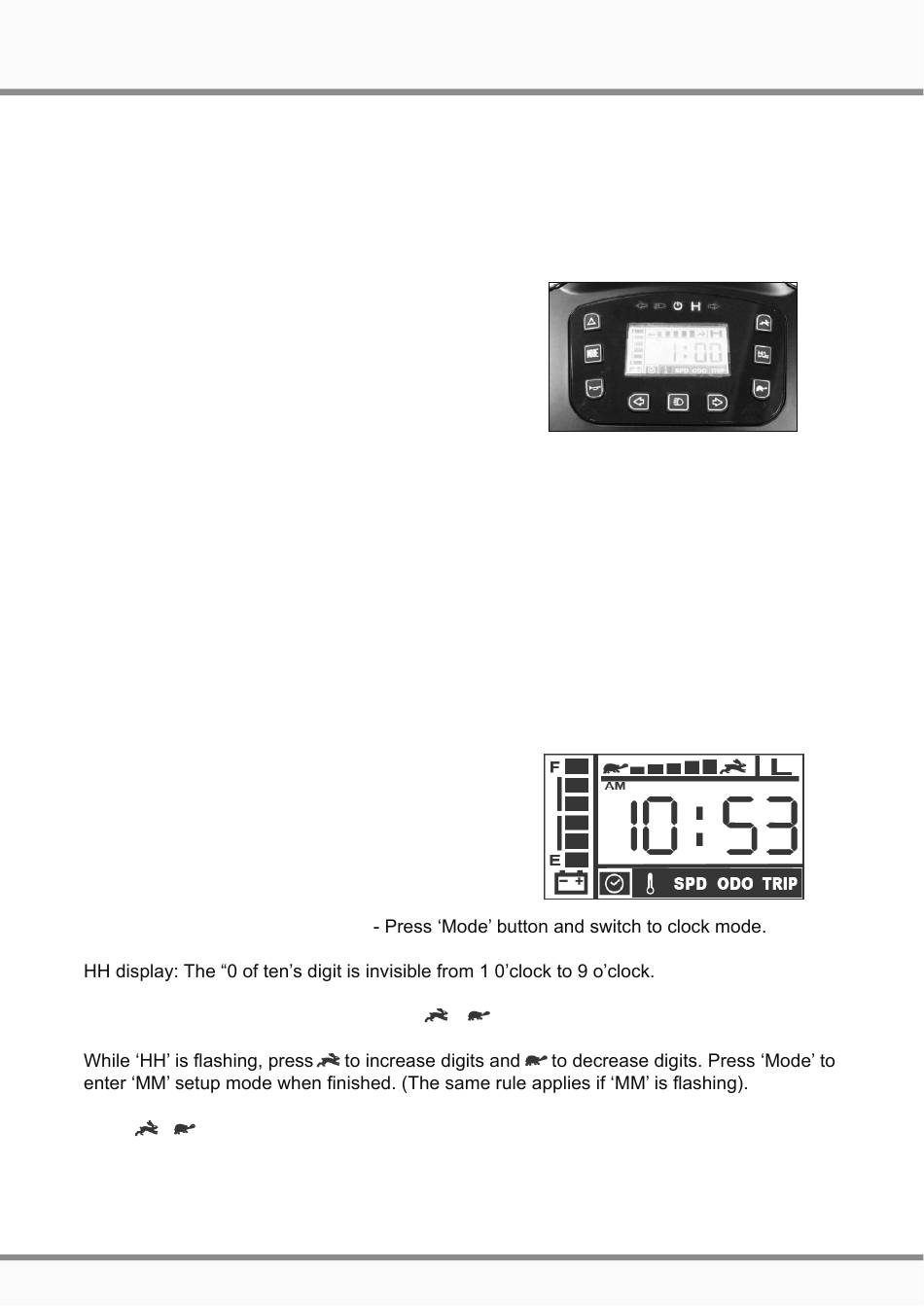

Clock:
1. Timekeeping error per day - + 2 seconds.
2. Initial Display - Hour, Minute, Mode: AM 12:00.
3. Time Format (12 hours - AM/PM)
Display range: AM12:00 - PM11:59.
4. Setup Mode (Time Adjustment) - Press
Press
( ) once to increase (decrease) one digit. The digits can increase (decrease)
( )
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
accumulating when you press the buttons for more than 2 seconds. The display is cycling. It
takes 2 seconds to increase from 0 to 9 for each position.
14
+
together for 3 seconds to enter setup mode.
