Sharp SDW6888JS Installation Manual

BEFORE YOU BEGIN READ THESE
INSTRUCTIONS COMPLETELY AND
CAREFULLY.
IMPORTANT – Observe all governing codes and ordinances.
Note to Installer – Be sure to leave these instructions for the
1
consumer's and local inspector's use.
Note to Consumer – Keep these instructions with your Owner's
2
Manual for future reference.
Skill Level – Installation of this dishwasher requires basic
3
mechanical and electrical skills. Proper installation is the
responsibility of the installer. Product failure due to improper
installation is not covered under the SHARP Consumer Limited
Warranty.
Completion Time – 1 to 3 Hours. New installations require more
4
time than replacement installations.
IMPORTANT – The dishwasher MUST be installed to allow for
future removal from the enclosure if service is required.
If you received a damaged dishwasher, you should immediately
contact your dealer or builder.
INSTALLATION PREPARATION
PARTS SUPPLIED:
NAME & DESCRIPTIONS
Flat Head Wood Screws to secure
dishwasher to underside of
countertop (in literature package)
Screw Type Hose Clamps
Drain Hose
Top Mounting Clips

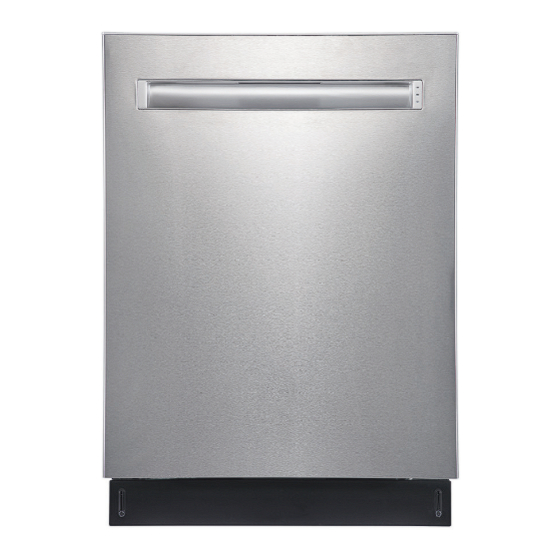

Dishwasher: SDW6888JS
INSTALLATION MANUAL
QTY. PARTS
4
1
1
2
FOR YOUR SAFETY - Read and observe all CAUTIONS
and WARNINGS shown throughout these instructions. While
performing installations described in this booklet, gloves, safety
glasses or goggles should be worn.
To reduce the risk of electric shock, fire, or injury to
persons, the installer must ensure that the dishwasher
is completely enclosed at the time of installation.
READ CAREFULLY.
SAVE THESE INSTRUCTIONS.
If you have an installation problem, contact your dealer or installer.
You are responsible for providing adequate electrical, exhausting
and other connecting facilities.
MATERIALS REQUIRED:
NAME & DESCRIPTIONS
3
90° Fitting ( / "). The other end
4
should be sized to fit the water
supply line.
Thread Seal Tape
UL Listed Wire Nuts
1 1
WARNING
QTY. PARTS
1
1
3
