Sharp SDW6757ES Operation Manual

Hide thumbs

Advertisement

Quick Links

................................... 2
IMPORTANT SAFETY INSTRUCTIONS .........................
................................... 5
CONTROL PANEL .................................................
.................................... 9

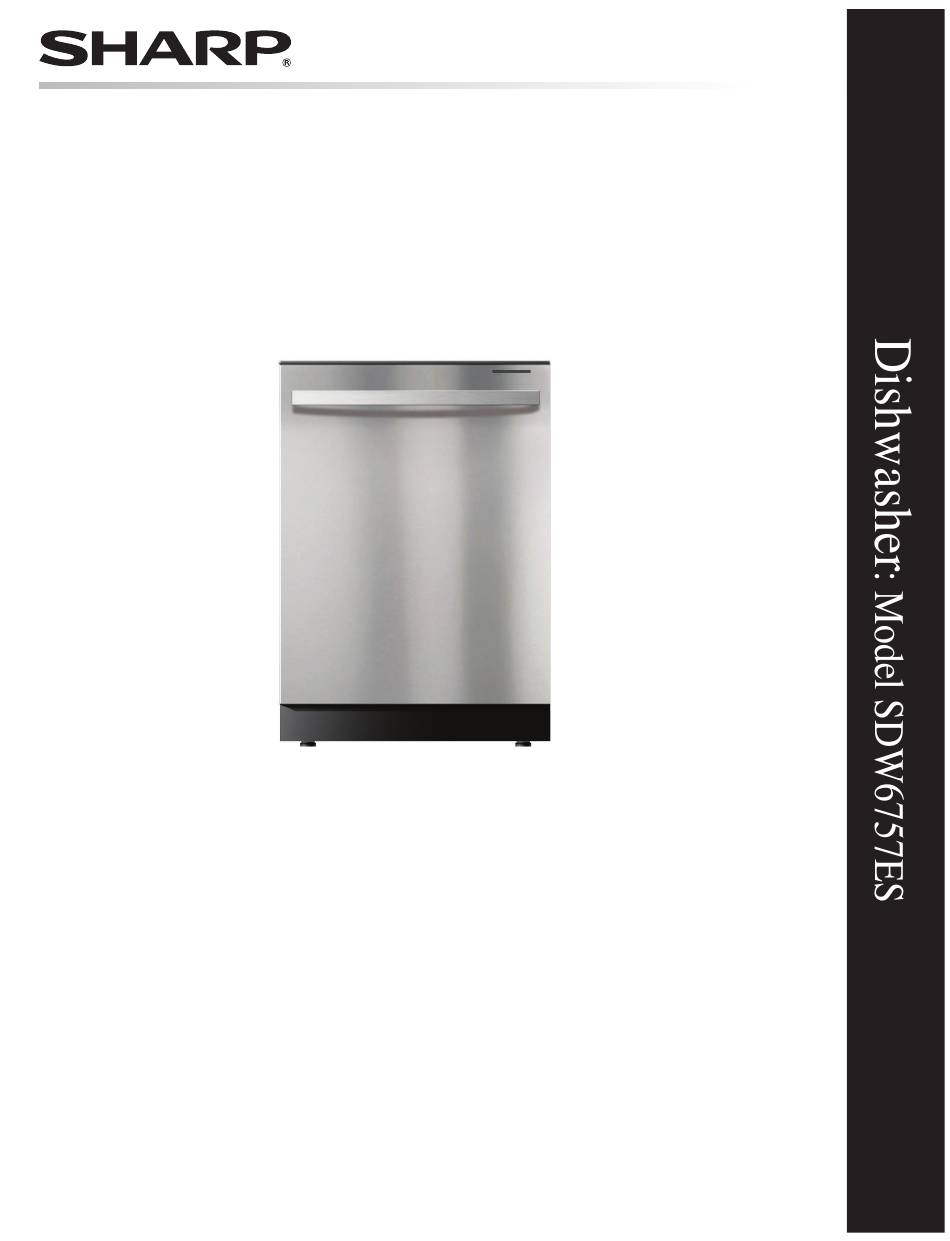

DISHWASHER
MODEL : SDW6757ES
.......................... 3
4
6
OPERATION MANUAL
.........................................11
......................................16
.......................................18
.............................................20
...........................14

Advertisement

loading

  Also See for Sharp SDW6757ES

  Summary of Contents for Sharp SDW6757ES

  • Page 1: Table Of Contents

    OPERATION MANUAL DISHWASHER MODEL : SDW6757ES ........2 .........11 CUSTOMER ASSISTANCE GETTING STARTED ......3 ......14 CONSUMER LIMITED WARRANTY DISHWASHER CYCLE OPTIONS ........16 IMPORTANT SAFETY INSTRUCTIONS ......CARE AND CLEANING ........5 ........18 APPEARANCE OVERVIEW TROUBLESHOOTING ..........20 CONTROL PANEL ..........
  • Page 2: Customer Assistance

    Æ Downloads including the Installation Guide, Spec Sheet, and Owner’s Manual CONTACT US If at any time you have questions or comments concerning your SHARP product, please contact the SHARP Customer Assistance Center. We are available to assist you through multiple contact methods for your convenience:...
  • Page 3: Consumer Limited Warranty

    Sharp. The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser.
  • Page 4: Important Safety Instructions

    When loading items to be washed: in a dishwasher and keep them out of the reach of children. • Load sharp items and knives so that they are not likely to Do not use the dishwasher if it has a damaged power line or damage the door seal and tub.
  • Page 5: Appearance Overview

    APPEARANCE OVERVIEW LED Light Adjustable 3 Rack Tub Gasket Adjustable Upper Rack Cup Shelf Upper Spray Arm Power Wash Spray Heating Element Lower Spray Arm Filter System Lower Rack Detergent Dispenser Rinse Aid Dispenser Control Panel SPECIFICATION Capacity 14 place settings Dimension (W x D x H) "...
  • Page 6: Control Panel

    CONTROL PANEL WASH CYCLE SELECTIONS OPTIONS Auto Half Load This cycle detects the turbidity degree and loading level For lightly soiled or pre-rinsed dishes and silverware. This of the washing items and automatically selects an optimal option will save water consumption. wash cycle for best performance.
  • Page 7 CONTROL PANEL dishwater fresh. cycle begins. Delay Rinse Aid Indicator Light To delay the start of a selected cycle, press the DELAY Illuminates when the dishwasher requires additional pad until the desired delay time shows in the LED display rinse aid. screen.
  • Page 8 CONTROL PANEL CYCLE PROGRESS INDICATOR STATUS WINDOW The cycle progress lights indicate the progress of the cycle while DELAY TIME the dishwasher is running. They are located on the front of the If the DELAY option is selected, the number of delay start hours dishwasher panel on the right side.
  • Page 9: Convenient Features

    CONVENIENT FEATURES LED LIGHTS ADJUSTABLE UPPER RACK Your dishwasher has two LED lights on the top of the tub, The Upper Rack height can be raised or lowered to accommodate which automatically turn on while the door is open. loading taller dishes in either rack. The Upper Rack clearance height H1 goes from 8"...
  • Page 10 CONVENIENT FEATURES FOLDABLE TINES POWER WASH SPRAY The upper and lower racks include flexible tines that can be Your dishwasher is equipped with Power Wash spray in addition folded down to create more space for dishes. The tines may be to the upper spray arm and the lower spray arm.
  • Page 11: Getting Started

    GETTING STARTED HOW YOUR DISHWASHER CLEANS LOADING THE UPPER RACK Your dishwasher cleans by spraying a mixture of hot water and The Upper Rack is designed for cups, glasses, small plates, bowls detergent through the spray arms against soiled surfaces. and plastic items marked dishwasher safe.
  • Page 12 FOR BEST RESULTS: • To avoid injury, load utensils such as knives and skewers with handles pointing up and sharp metal edges pointing down. Items such as forks and spoons may be loaded with handles pointing up or down, using separators to prevent the edges LOADING THE SILVERWARE BASKET of the silverware from nesting.
  • Page 13 GETTING STARTED Replace the dispenser cap. FILLING THE RINSE AID Rinse aid greatly improves drying and reduces water spots and filming. Without rinse aid, your dishes and dishwasher interior will have excessive moisture. The Heat Dry option will not perform as well without rinse aid. The Rinse Aid Dispenser, located next to the detergent dispenser, automatically releases a measured amount of rinse aid during the final rinse.
  • Page 14: Dishwasher Cycle Options

    DISHWASHER CYCLE OPTIONS CYCLE CHART DETERGENT - OZ (G) PROGRAM DESCRIPTION OF CYCLE WATER - GAL (L) CYCLE TIME (MIN.) (PRE-WASH/MAIN WASH) Pre-Wash Wash 118 - 126˚F (48 - 52°C) CU : 0.5/0.5 (1.5/1.5) 3.0 - 5.9 AUTO 90 - 121 Others : 0/0.3 (0/9.9) (11.4 - 22.5 ) Rinse 136˚F (58°C)
  • Page 15 DISHWASHER CYCLE OPTIONS CYCLE TIME WITH OPTIONS CYCLE TIME HALF POWER HI TEMP SANITIZE HEAT DRY W/O OPTIONS LOAD WASH WASH PROGRAM DESCRIPTION OF CYCLE MINUTES Pre-Wash Wash 118 - 126˚F (48 - 52°C) AUTO 90 - 121 N.A. N.A. 116 - 148 123 - 158 108 - 145...
  • Page 16: Care And Cleaning

    CARE AND CLEANING CLEANING THE EXTERIOR DOOR CLEAN THE FINE FILTER AND PANEL Take out the Cylinder Filter and remove the Fine Filter from the dishwasher tub bottom. To remove the Fine Filter, you must first Stainless steel panel - Clean the stainless steel door and remove the bottom spray arm as shown below.
  • Page 17 CARE AND CLEANING AIR GAP CLEAN THE DOOR GASKET If there is an air gap installed with your dishwasher, make sure Clean the door gasket with a damp cloth regularly to remove it is clean, so the dishwasher will drain properly. food particles.
  • Page 18: Troubleshooting

    TROUBLESHOOTING BEFORE CALLING FOR SERVICE PROBLEM POSSIBLE CAUSE SOLUTION Door may not be closed properly Ensure the door is properly closed Power supply or power line is not connected Ensure power supply is correctly connected Dishwasher won't Delay Start option has been selected Refer to delay start section in this manual to reset start Child lock activated (selected models)
  • Page 19 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Water remains in the Previous cycle has not finished or has been Select the proper cycle as indicated by the manual dishwasher interrupted Drain is clogged Check the air gap if it is installed Make sure the disposer is empty if the dishwasher is Dishwasher does not connected to the disposer drain properly...
  • Page 20: Error Codes

    • If overflow occurs, turn off the main water supply before calling for service. • If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. SHARP ELECTRONICS CORPORATION • 100 Paragon Drive • Montvale, New Jersey 07645 • USA...
