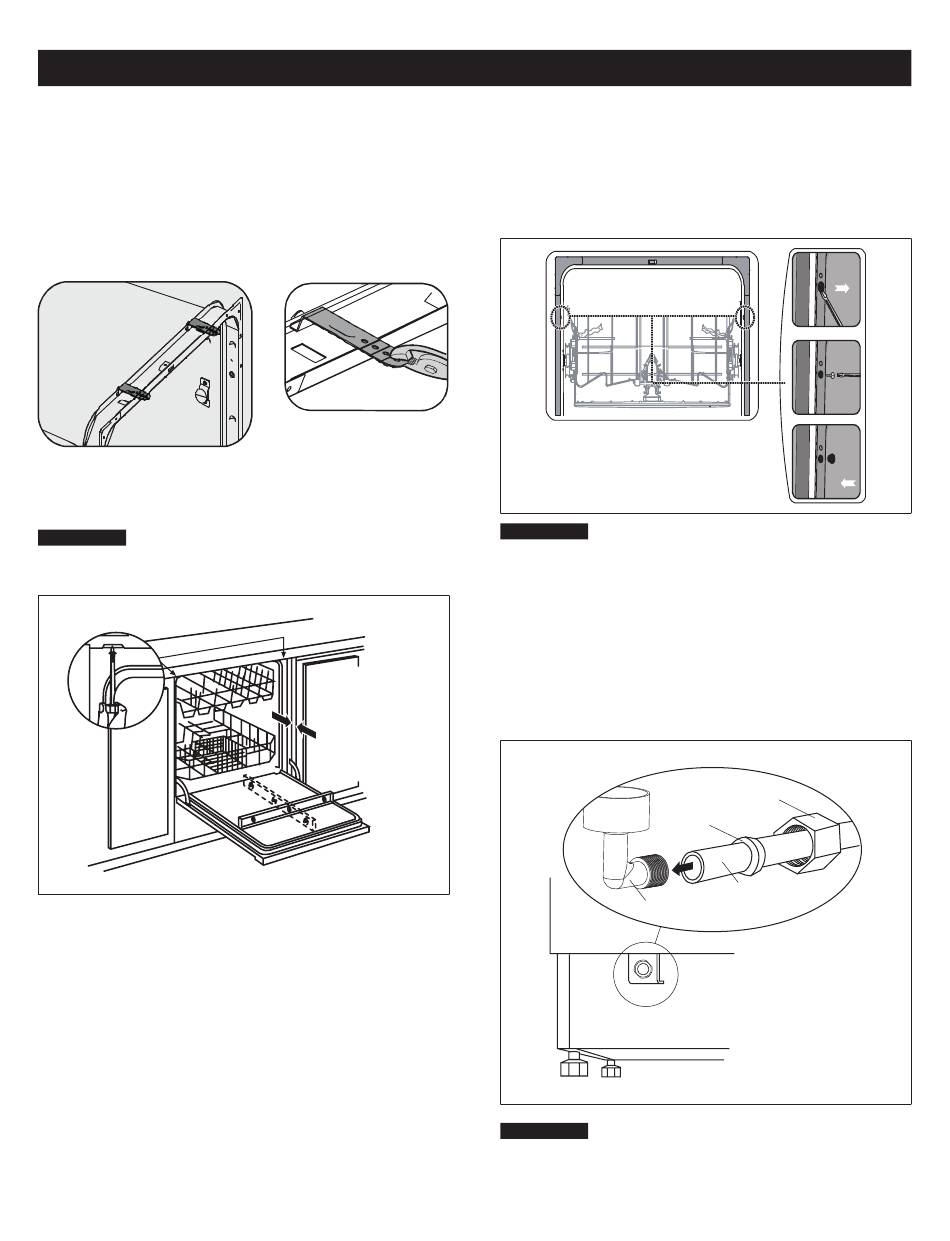

STEP 11: SECURE DISHWASHER TO CABINET

METHOD 1 - To install using Top Mount Cabinet Clips:
Depending on the depth of the cabinet, the Top Mount Clips have
a break-off point that can be removed if necessary.
NOTE: Install Top Mount Clips before unit is installed into the
cabinet. Insert the installation brackets to the front top slots of the
dishwater. (See image below.)
The dishwasher must be secured to the countertop. Position the
dishwasher so that the tub flange aligns with the front face of the
cabinet frame.
IMPORTANT
Make sure the dishwasher is centered in the opening
and there is no interference with adjacent cabinets when opening
or closing the door.
Fasten the dishwasher to the underside of the countertop with the
2 Phillips screws provided.
METHOD 2 – To install on the side boards:
In case counter tops are made of marble, granite, or other hard
materials that could not be drilled, use the installation method below.
Open the door and remove the tub caps on both sides of the tub.
Install screws through the dishwasher side holes to the wall of the
cabinet. Reinstall tub caps.
IMPORTANT
heads will scratch the top of the control panel and can interfere with
the door's ability to close. If the gap is less than
panel and the screws, method 2 is recommended.

STEP 12: CONNECT WATER SUPPLY

Connect water supply line to 90° elbow.
• Slide compression nut, then ferrule over end of water line.
Align Tub
Flange
• Insert water line into 90° elbow.
to Front
• Slide ferrule against elbow and secure with compression nut.
Face of
Cabinet
Frame
IMPORTANT
the fill hose or water supply line. Test by opening and closing the
door. Reroute the lines if a rubbing noise or interference occurs.
8
Drive screws straight and flush. Protruding screw
Compression
Nut
Ferrule
Hot Water
Supply Line
90° Elbow
Make sure the door spring does not rub or contact
3
/ " between control
8
