Entry Phone Specifications
Power: Telephone line powered. Minimum 24V DC talk battery voltage,
with a minimum loop current of 20mA loop. Loop current may be boosted
on low current lines with a Viking Model TBB-1A talk battery booster (Fax
Back # 630).
Dimensions: Overall: 127mm x 127mm x 57mm (5" x 5" x 2.25"), Plastic
electrical box: 102mm x 102mm x 57mm (4" x 4" x 2.25")
Shipping Weight: 1.6 kg (3.5 lbs)
Speaker Volume: Approximately 70 db maximum @1m
Ring Voltage: 25V AC RMS minimum (for auto answer)
CPC Disconnect Time: 500ms minimum
REN #: 0.5 A

Camera Specifications

Power: 5-9V DC regulated 150mA (6V DC adapter included)
Image Sensor: 1/4" color CMOS
Video Output: 1 VP-P composite, NTSC, 75 ohms
Resolution: 420 lines (640 x 480 @ 30fps / 307,200 pixels)
Sensitivity: 0.26 LUX (20 IRE) F 2.0
Lens: 3.4mm, pinhole 70° FOV (Field of View)
Tilt/Swivel Adjustment: Vertical +/- 20°, horizontal +/- 30° (see Diagram A)
Maximum Wire Run Length: 1000 ft with *RG59/RG6 for video and CAT5 for power (dou-
bled pairs) and entry phone audio. 150 ft with CAT5E for video, power and entry phone audio
(longer video runs are possible by using video balun transceivers, see Installation section F,
page 5). * Note: RG59 or RG6 with solid center conductor and 95% bare copper braid shield.
2
i o n s
i o n s
Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI 54016 (715) 386-866
Entry Phone / Camera Specifications
Operating Temperature: -34° C to 65° C (-30° F to 150° F)
Humidity: Standard model: 5% to 95% non-condensing, EWP
model: Up to 100%
Connections: Standard model: (3) gel-filled butt connectors (3M
Scotchlok UR2), EWP model: (5) gel-filled butt connectors (3M
Scotchlok UR2)
Recommended Surface Mount Box: Viking model VE-5x5 (Fax
Back Document 424)

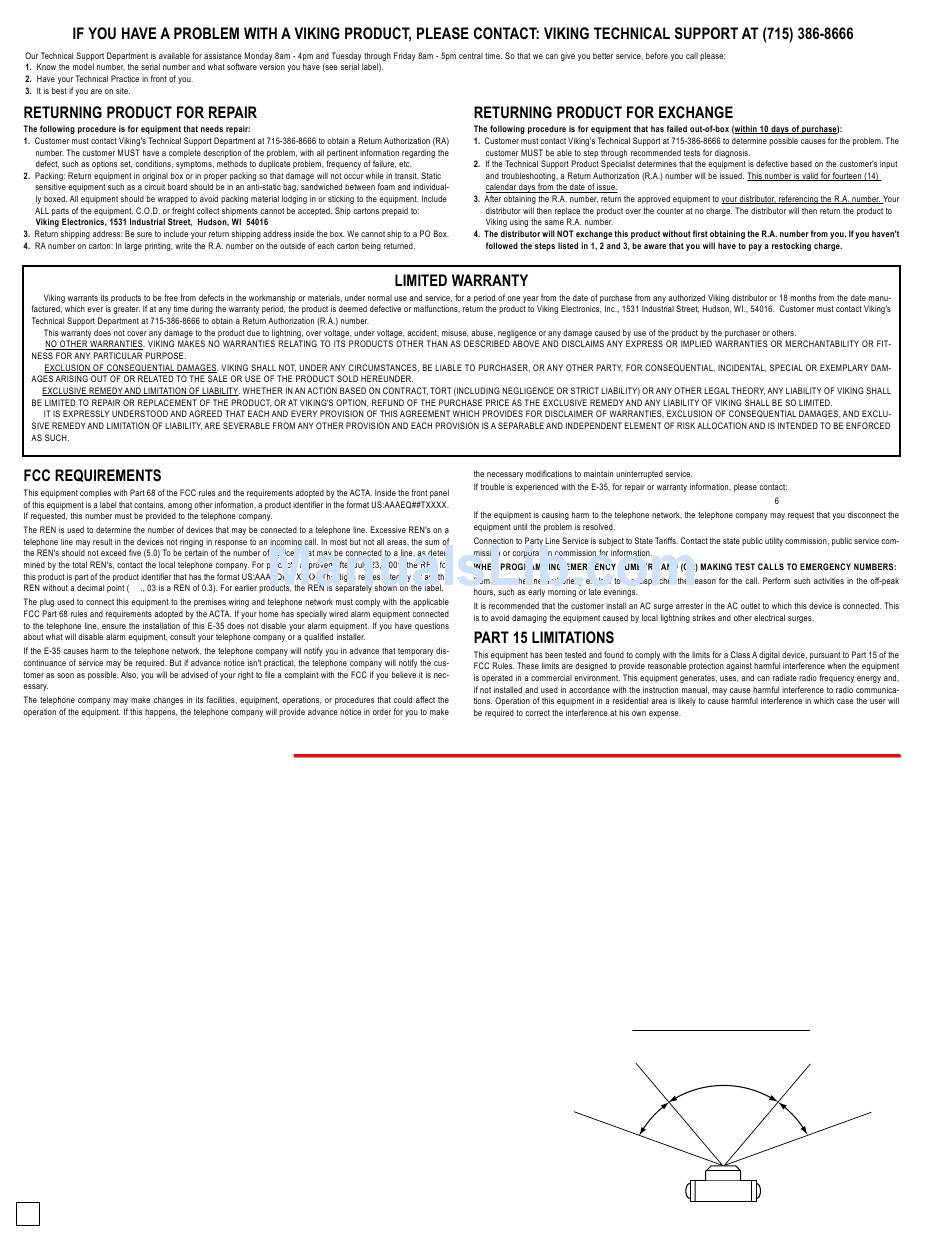

Camera Field of View:
Rotate
Left 30°
Diagram A
70° Lens FOV
Rotate
Right 30°
Camera Lens
