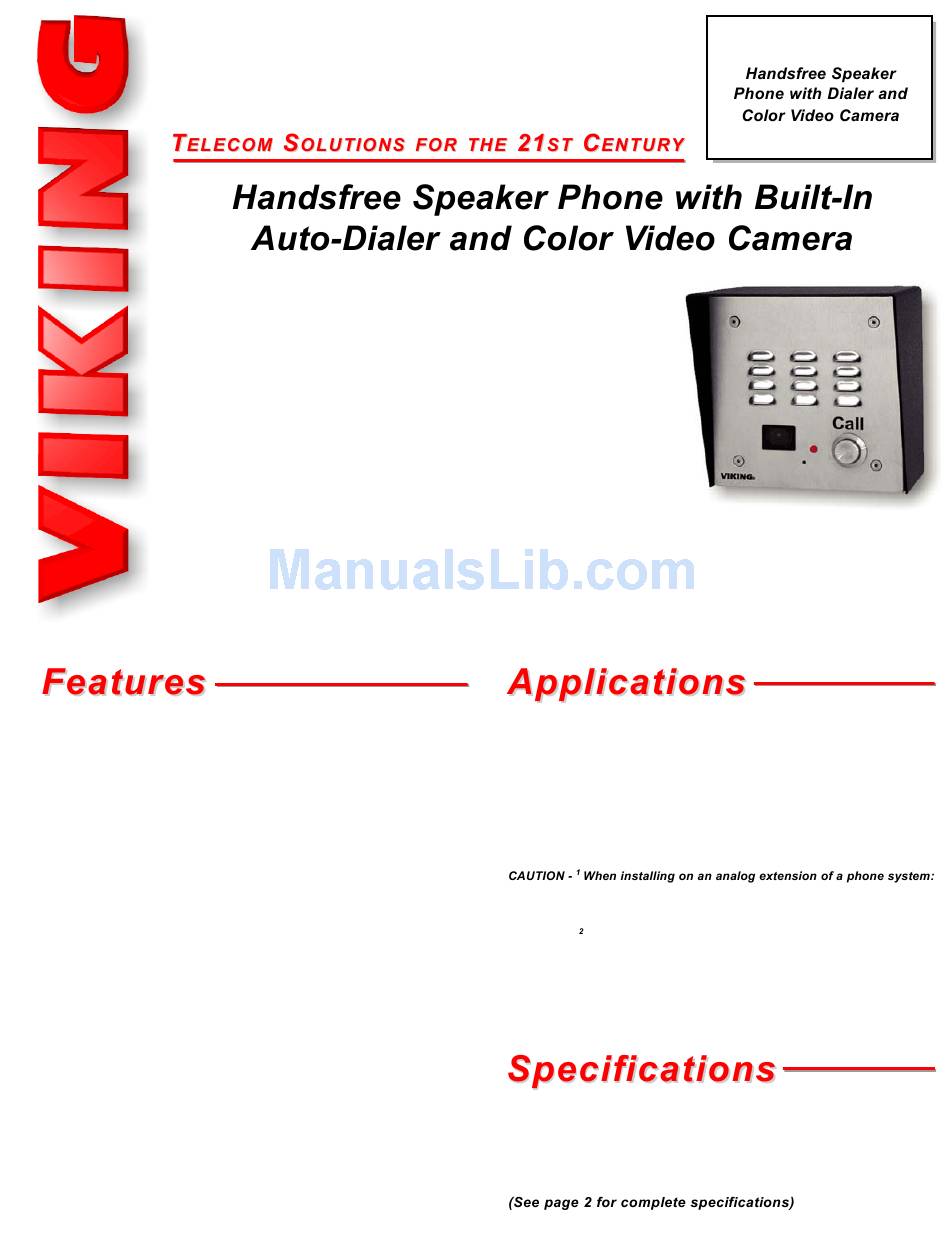

TECHNICAL
TECHNICAL
The E-35 is a weather and vandal resistant handsfree video phone
designed to provide quick and reliable handsfree communication
and CCTV video of who is at your door or gate. The E-35 can be
connected directly to a C.O. line, analog PABX/KSU station, or a
Viking Door/Gate Controller: C-200, C-250 or C-2000B.
The E-35 features non-volatile memory, a built in dialer, a built-in
high resolution color video camera, and intelligent call progress
detection for automatic hang-up when the call is completed.
The E-35 can be programmed to dial up to 5 different numbers on
ring no answer or busy and can be configured to dial these num-
bers until answered.
The E-35-EWP shares all of the features of the E-35 in addition to
Enhanced Weather Protection (EWP) for outdoor installations
where the unit is exposed to precipitation or condensation. EWP products feature foam rubber gaskets
and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted
circuit boards with internally sealed, field-adjustable trim pots and DIP switches for easy on-site pro-
gramming. For more information, see DOD# 859.
• Built-in 5 number auto-dialer
• Built-in high resolution color video camera with wide viewing
angle, tilt/swivel adjustments and wide operating temperature
• Audio and video transmission on one CAT5E cable (page 5)
• Vandal Resistant Features: 14 gauge louvered 316 stainless
steel faceplate with permanent laser etched graphics,
stainless steel speaker/mic screen, heavy duty metal "Call"
button, impact and scratch resistant camera lens and hex
drive mounting screws
• Weather Resistant Features: Marine grade 316 stainless
steel faceplate, Mylar speaker, faceplate gasket, mic and
speaker gasket, internally sealed (IP67) push button switch,
sealed camera lens, potted camera circuit board, stainless
steel phone and camera mounting hardware
• E-35-EWP is designed to meet IP66 Ingress Protection Rating
(see DOD# 859 for more information)
• Red "off-hook" LED
• Volume adjustments for microphone and speaker
• Advanced call progress detection: disconnects on busy
signal, return to dial tone, CPC, reorder signal, maximum
call time out and selectable silence time out
• Selectable auto-answer feature for monitoring
• Selectable push button disconnect
• Optional VE-5x5 surface mount box available
• Selectable maximum call time
• Selectable VOX switching speed
h
t
t
p
:
/
/
w
w
w
.
v
i
k
i
n
g
h
t
t
p
:
/
/
w
w
w
.
v
i
k
i
n
g
e
l
e
c
t
r
o
n
i
c
s
.
c
o
m
e
l
e
c
t
r
o
n
i
c
s
.
c
o
m
P
r
a
c
t
i
c
e
P
r
a
c
t
i
c
e
Gate and Door Entry Phones for:
• Business lobbies
• Auto or pedestrian gates
Non-ADA Hot-Line Phones for:
• Elevators
• Parking lots/ramps
• ATM machines
Some phone systems do not conform to analog telecom standards and might
not be compatible with the E-35 speaker phones. For a detailed description of
the telephone line specifications required for any of the E-35 phones, see
DOD# 869.
In louder background noise environments, the push to talk ver-
sion may be required (E-30-PT or E-30-PT-EWP).
P
Dimensions: Overall-127mm x 127mm x 57mm (5" x 5" x 2.25"),
Plastic Electrical Box-102mm x 102mm x 54mm (4" x 4" x 2.12")
Shipping Weight: 0.9 Kg (2 lbs)
Operating Temperature: -26°C to 54°C (-15°F to 130°F)
Connections: (5) gel-filled butt connectors (3M Scotchlok UR2)
E-35/E-35-EWP
E-35/E-35-EWP
August 29, 2012
E-35 / E-35-EWP
Brushed 316 Stainless Steel
(shown in optional VE-5x5)
• Residences
• Stadiums
• Convention centers
h
o
n
e
.
.
.
7
1
5
.
3
8
6
P
h
o
n
e
.
.
.
7
1
5
.
3
8
6
.
8
8
6
1
.
8
8
6
1
Advertisement
Table of Contents
Related Manuals for Viking E-35
Summary of Contents for Viking E-35
- Page 1 The E-35 is a weather and vandal resistant handsfree video phone designed to provide quick and reliable handsfree communication and CCTV video of who is at your door or gate. The E-35 can be connected directly to a C.O. line, analog PABX/KSU station, or a Viking Door/Gate Controller: C-200, C-250 or C-2000B.
-
Page 2: Camera Specifications
The standard camera is NOT compatible with IR illumi- nators. If IR illumination is required, you will need to replace the exisiting camera with a Viking model VCAM-1IR. For more information, see DOD# 190. - Page 3 Front View of 3.25” 5.22” for double gang box Plastic Rough-In Box (included) (2) 0.2 x 0.43 slots for single gang box E-35 shown with Viking Model VE-GNP 5.0” Gooseneck 5.14” Pedestal (1) .74" dia 3.0” 3.3”...
- Page 4 ** Note: The maximum camera power supply wire run length is 250 ft of 24 gauge wire (CAT 5/6), longer runs are possible by doubling pairs, increasing the wire gauge or using a 6V DC 200mA power adapter (Viking part # L122110). Go to www.vikingelectronics.com and click on “Spare Parts”.
-
Page 5: Adjusting The Camera
Step 2. From a Touch Tone phone call the line attached to the E-35. Step 3. When the E-35 answers, enter the 6-digit security code (factory set to 845464 - see section C). A double beep should then be heard indicating you have entered the programming mode. -
Page 6: Speed Dial Numbers
(memory location #19) The security code allows the user/installer to program the E-35 phone while DIP switch 3 is in the ON (normal) posi- tion. The factory set security code is 845464 (V-I-K-I-N-G). It is recommended that the factory set security code be changed. -
Page 7: Miscellaneous Options
The lap counter is a programmable counter that determines how many times the E-35 will cycle through its list of up to 5 emer- gency number (or up to 3 “Info” phone numbers), before it stops the dialing process and hangs up. When all of the programmed phone numbers have been dialed, the lap counter is incremented and the dialing process repeats. -
Page 8: Programming Examples
E-35 phone board. With power supplied to the camera, it will continuously output a video signal. Due to the dynamic nature of the product design, the information contained in this document is subject to change without notice. Viking Electronics, and its affiliates and/or subsidiaries assume no responsibility for errors and omissions contained in this information.
