Viking C-200 Technical Practice page 5

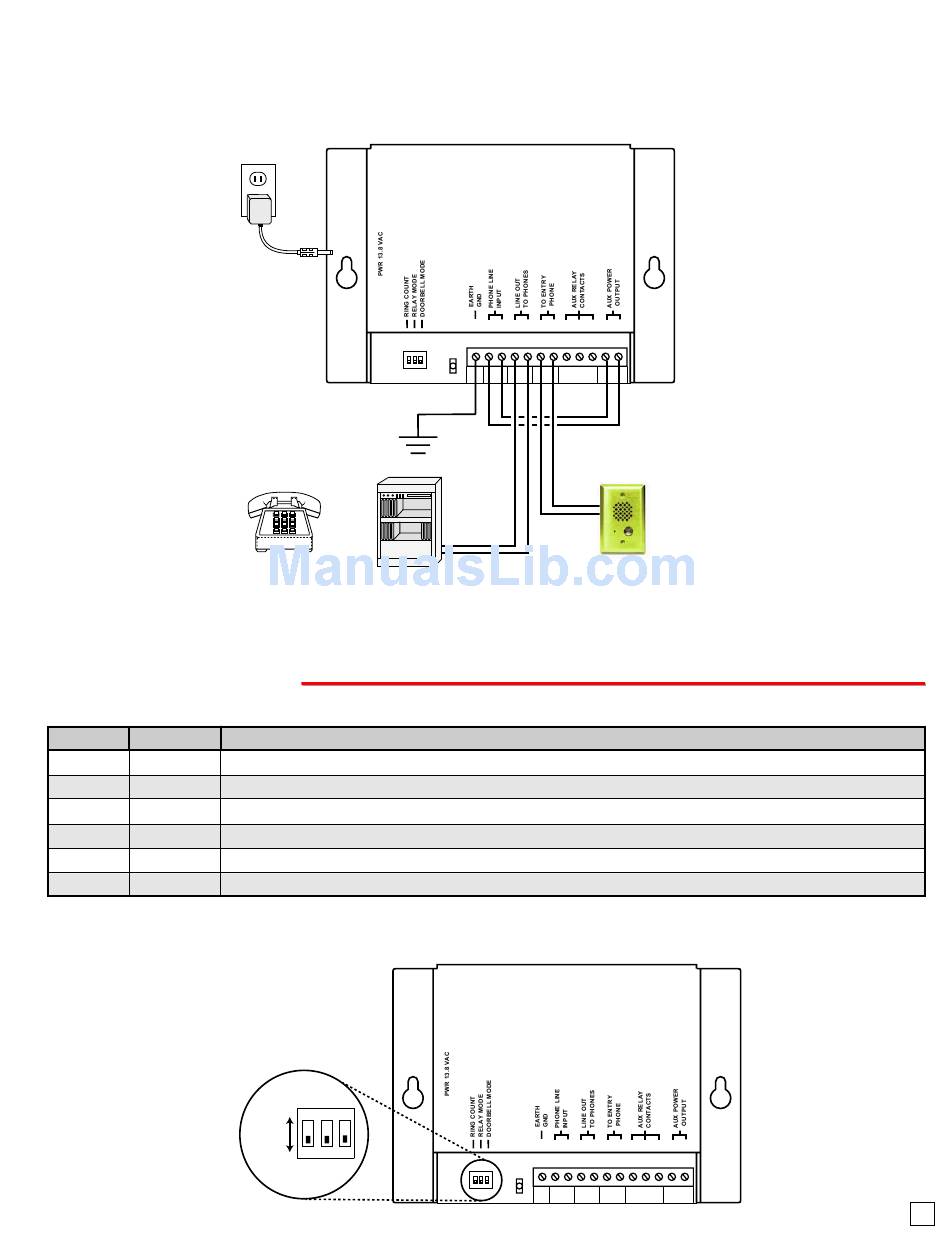

D. Using the C-200 on an Unused Trunk / Line Input
The C-200 can also be used without a phone line. This is ideal for connecting the C-200 to an unused trunk/phone line
of a phone system, or connecting to phones used only for door communications.
13.8V AC
Adapter
included
P r o g r a m m
P r o g r a m m
Switch Position
1 OFF
1 ON
2 OFF
2 ON
3 OFF
3 ON
120V AC
VIKING
* Earth Ground
(optional)
-OR-
Dedicated
Analog Phone(s)
Analog Trunk / Line
Input of a Phone System
i n g
i n g
Description
Maximum ring count set to 3 rings
Maximum ring count set to 10 rings
Auxiliary relay activates a doorbell
Auxiliary relay activates a camera or courtesy lights for the duration the door phone is in use
Ringing enabled (normal mode)
Ringing disabled (doorbell mode) Note: Aux Relay Contacts must be connected to a doorbell
DIP Switches shown
in the factory default
positions
ON
ON
OFF
1 2 3
MODEL C-200
©
VIKING
ELECTRONICS
HUDSON, WI 54016
SINGLE ENTRY PHONE
CONTROLLER
1 2 3 4 5 6 7 8 9 10
ON
1 2 3
EARTH C.O. LINE OUT TO ENTRY N.O. COM N.C.
GND INPUT PHONES PHONE AUX CONTACTS
(
VIKING
©
VIKING
ELECTRONICS
HUDSON, WI 54016
SINGLE ENTRY PHONE
CONTROLLER
1 2 3 4 5
ON
1 2 3
EARTH C.O. LINE OUT TO
GND INPUT PHONES
11 12
AUX POWER
OUTPUT
Entry Door
Phone
E-40-PB
not included)
MODEL C-200
6 7 8 9 10 11 12
ENTRY N.O. COM N.C. AUX POWER
PHONE AUX CONTACTS OUTPUT
5
