Panel Telephones
The K-1500 Series provides simple vandal resistant,
communication in a flush mount, stainless steel, panel
telephone. The K-1500-7 and K-1500-6A work ideally
with Viking's DLE-200B line simulator or on a dedi-
cated ringdown circuit. If dialing is necessary, use
Viking's K-1900-7 or combine the K-1500 Series
phones with Viking's K-1900-5 Hot-Line Dialer.

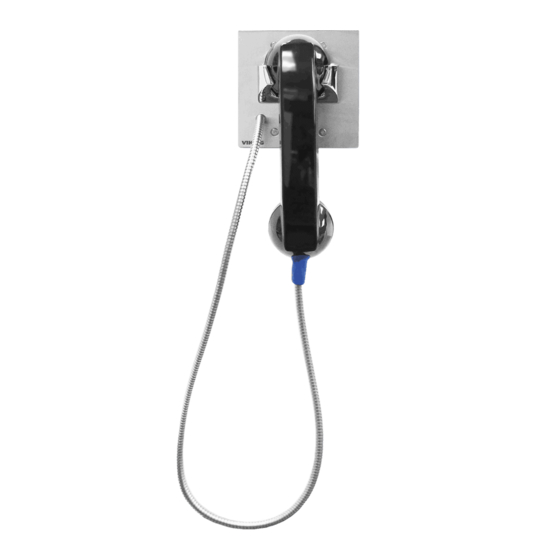

The K-1500 Series phones consist of a heavy gauge
stainless steel panel, an armored cable, a heavy duty
black hearing aid compatible amplified handset, and
an all metal cradle. Both phones are designed to
mount to a standard double gang electrical box.
A
p
p
A
p
p
• Ringdown phones
• Catalog sales
• Kiosks in malls
• Courtesy and customer service phones
• Automated tellers
• Security and emergency phones
• Hot-Line phone when used with a K-1900-5
Hot-Line Dialer
• Point to point communication when used with
the DLE-200B Line Simulator
Document 605)
S
p
e
S
p
e
Power: Telephone line powered
Dimensions: K-1500-6A - 116mm x 115mm x 70mm (4.56" x
4.5" x 2.75"), K-1500-7 - 127mm x 254mm x 102mm (5" x 10"
x 4")
Shipping Weight: K-1500-6A - 0.9 kg (2 lbs), K-1500-7 - 1.7
kg (3.7 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95%
noncondensing humidity
Connections: K-1500-6A - (1) RJ14 jack, K-1500-7 - (2) gel-
filled butt connectors
Panel Material: K-1500-6A - 0.074" thick stainless steel, K-
1500-7 - 0.125" thick stainless steel
Mounting: K-1500-6A - Flush mount to a standard double
gang box, K-1500-7 - Flush mount to a standard double gang
box or surface mount using optional VE-5x10 or VE-9x20
