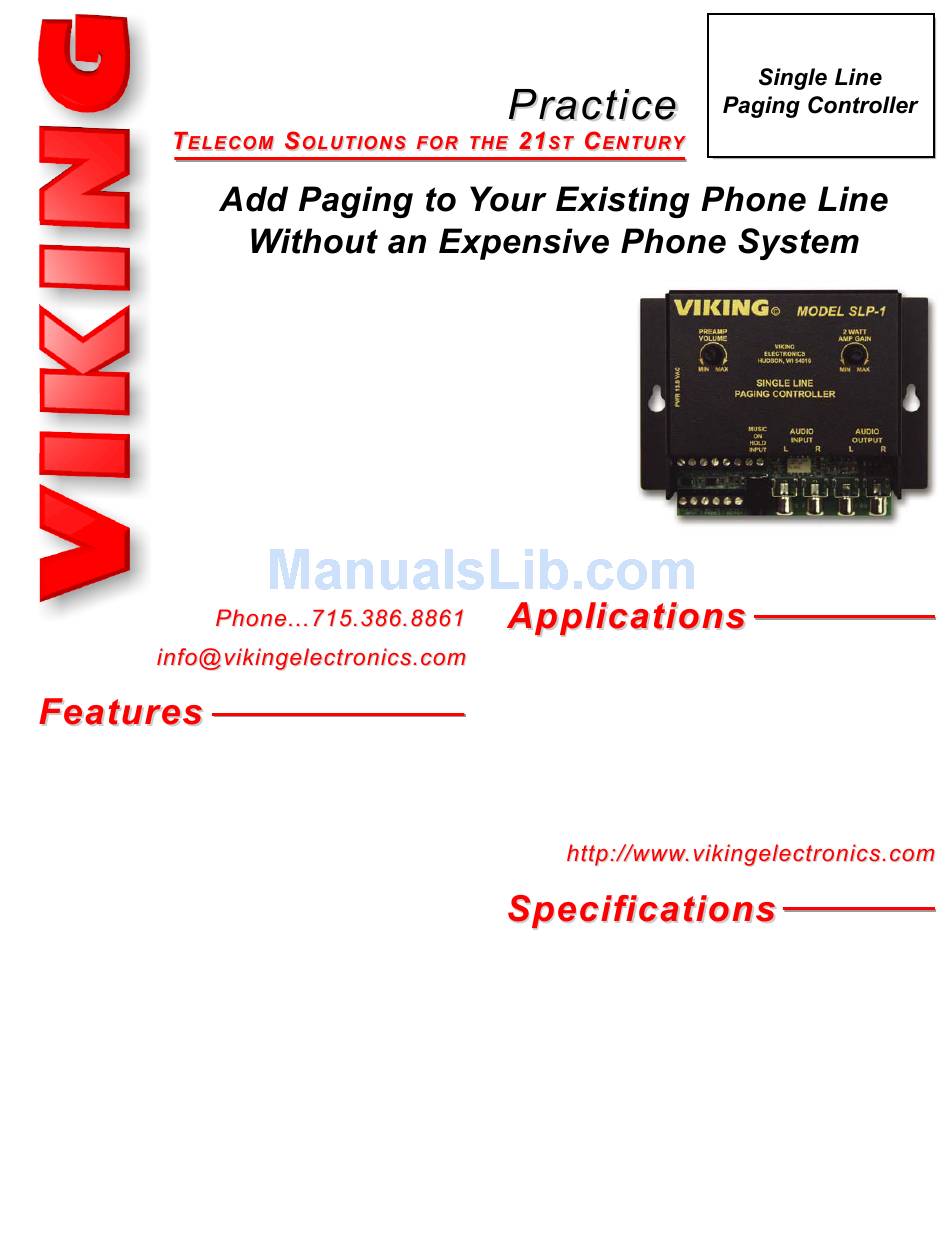

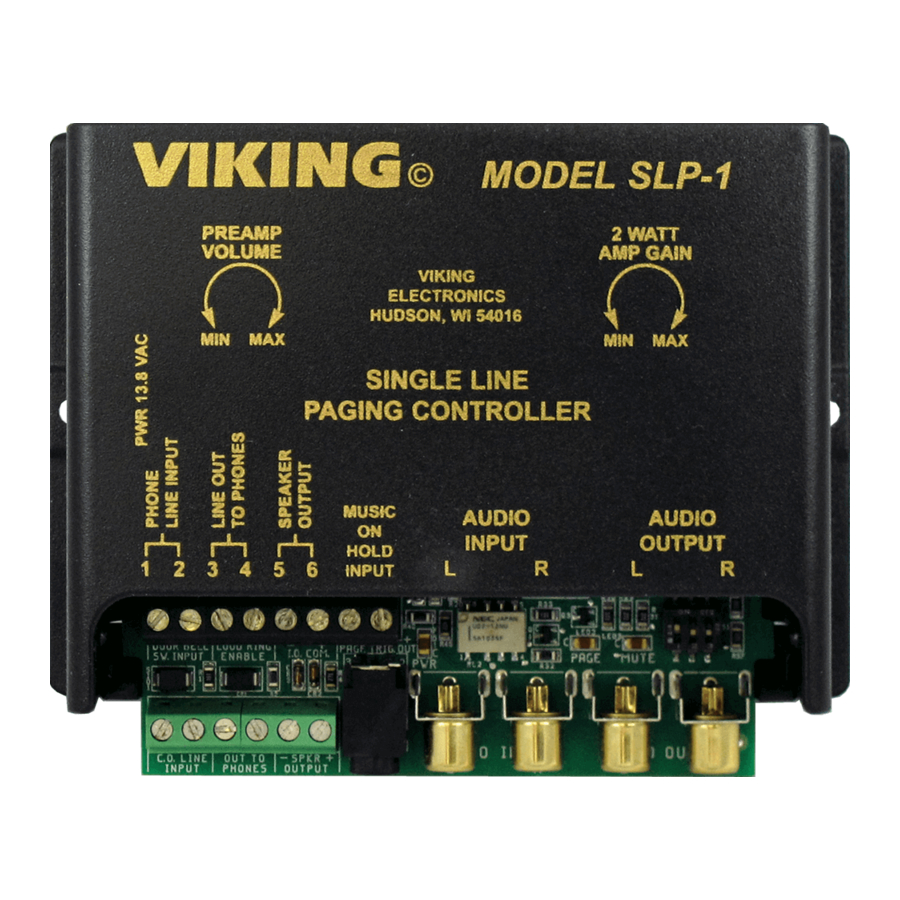

The SLP-1 Single Line Paging controller will allow
you to page family members or co-workers from
any phone in your home or small office. The pages
can be heard over the same speakers that are
installed for multi-zone music distribution.
The SLP-1 connects in series with a single existing
phone line. The unit has a built-in 2 watt amplifier,
pre-amp output, music on hold input, intercom fea-
tures and selectable loud ringing. The SLP-1 pro-
vides an input for a lighted doorbell switch, allowing
a door chime to be heard over existing speakers. Page from several different phone
lines by connecting multiple units.
• Whole house/small business paging from existing phones
• Built-in two-watt mono paging amplifier with gain control
• Phone to phone intercom
• Page from several different phone lines by connecting
multiple units
• Music on hold
• Caller on hold
• Can provide background music from an external source
• Background music mute (automatic during paging or
touch tone selectable while you are on a call)
• Selectable loud ringing (electronic warble over speakers)
• Doorbell switch input (lighted or non-lighted) for activating
door chime (ding-dong sound over speakers)
• Unique front and back door chimes when used with a
C-1000B or C-2000A doorbox controllers
• Switch selectable On-Hold alarm tones
• Stereo pre-amp input and line level output for use with
receivers and high wattage amplifiers
• Simple control commands - no touch tone programming
• Page trigger output (12V signal for enabling paging
source input on multi-source amps)
• Pre-amp volume control
• Bypass code - ignores all touch tones on next off-hook
allowing you to steer through auto attendants, etc.
• Comes complete with power supply
• Whole house paging from an existing phone
line
• Add paging, intercom, and music on hold
features for small businesses
• Loud ringing / night bell
• Provide unique front and back door chimes
when used with a C-1000B or C-2000A
Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided
Dimensions: 133mm x 89mm x 44mm (5.25" x 3.5" x 1.75")
Shipping Weight: 1.36 kg (3 lbs)
Environmental: 0°C to 32°C (32°F to 90°F) with 5% to 95% non-
condensing humidity
Paging Amplifier Output: 2 watts - powers up to (3) 8 ohm or
(16) 45 ohm speakers
Sound Pressure: 100 dB @ 1 meter (loud electronic warble from
25AE paging horn)
REN: 0.5A
Max Speaker Output Wire Run: 91m (300 ft) max, 18 AWG
Max Doorbell Switch Wire Run: 305m (1000 ft) max, 24 AWG
Max Load on Page Trigger Output: 1K Ohm
Talk Battery: 36V DC
Connections: (1) 6-position and (1) 8-position screw terminal
blocks, (1) 3.5mm (1/8") jack, (4) RCA jacks, 2.13m (7 ft) audio
cord with 3.5mm (1/8") double ended mono plugs included
SLP-1
SLP-1
June 15, 2007
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Viking SLP-1
Summary of Contents for Viking SLP-1
- Page 1 The SLP-1 connects in series with a single existing phone line. The unit has a built-in 2 watt amplifier, pre-amp output, music on hold input, intercom fea- tures and selectable loud ringing.
- Page 2 IF YOU HAVE A PROBLEM WITH A VIKING PRODUCT, PLEASE CONTACT: VIKING TECHNICAL SUPPORT AT (715) 386-8666 RETURNING PRODUCT FOR REPAIR The following procedure is for equipment that needs repair: Viking Electronics, 1531 Industrial Street, Hudson, WI 54016 FCC REQUIREMENTS Pre-Amplifier Volume Control - For paging, loud ringing, door chime and on-hold alarm tones.
- Page 3 * Tape Out 1/8" (3.5mm) Double Ended Standard Analog Phone or Ceiling Speakers may be connected 25AE Paging Call (715) 386-4345 and select 498. Horn (not included) VIKING MODEL SLP-1 © PREAMP VOLUME VIKING ELECTRONICS HUDSON, WI 54016 SINGLE LINE PAGING CONTROLLER...
- Page 4 J9 1-3 (see diagram above). Users often turn off all zones when they retire for the evening. In this event, we recommend dedicating up to three 8-ohm speakers on the SLP-1’s 2 watt speaker output. They should be placed in central locations (hallways, etc.) on each level so the door chime can be heard when all zones are disabled.
- Page 5 Technical Practice for programming details. The C-1000B CCTV Video Control Mode can NOT be used in conjunction with unique front and back door chimes. See Operation section I, page 7. If CCTV video control is required, a Viking VC-1000 can be used. The caller’s music on hold is limited to 5 seconds while com- municating with a doorbox.
- Page 6 Viking model FBI-1A Digital Anti-Feedback Paging Interface and Viking model TDR-1 Time Delay Relay. For more information on installing the FBI-1A and TDR-1 with the SLP- 1, call 715-386-4345 and request fax back document 873.
- Page 7 D. On-Hold Alarm Tones The SLP-1 can provide on-hold alarm tones to alert you that a caller has been left on hold. After each minute the call has been left on hold, the SLP-1 will momentarily mute the background music and output a double beep tone over the speakers. This feature can be disabled by setting DIP switch 1 to OFF (see DIP Switch Programming page 6).
-
