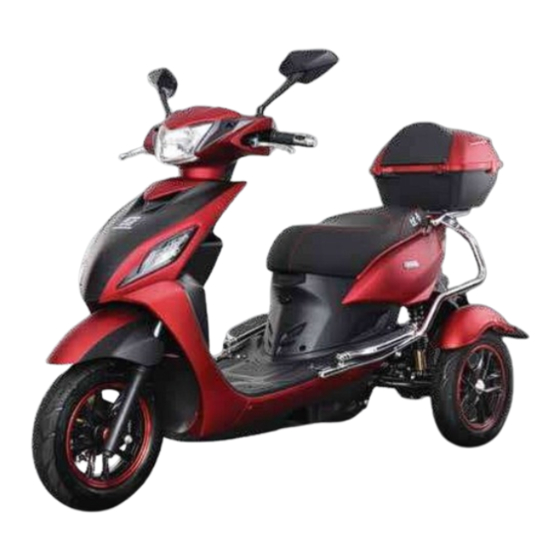

  • Page 1 PRIDE...
  • Page 2 HELMETS SAVE LIVES! Always wear a properly fitted helmet that complies with CE safety standards when you ride your vehicle. Correct Fitting: Make sure your helmet covers your forehead. Incorrect Fitting: Forehead is exposed and vulnerable to serious injury.
  • Page 3 This manual is designed to give you the information you need for the safe operation and maintenance of your PRIDE. Please read if thoroughly before riding your PRIDE.

  • Page 4: Battery Maintenance

    Your PRIDE is a personal transporter. Our technology and production processes are developed with strict testing for each PRIDE Electric Vehicle. Operating the PRIDE without following the contents of this manual may lead to damage to your PRIDE, or body injury. PACKAGE CONTENTS ●...
  • Page 5 Disconnect store it in dry and ventilated area. ● Dropping the battery may cause fire or explosion. Any PRIDE that does not work properly can cause you to lose control and fall. Inspect the entire vehicle thoroughly before every ride, and do not ride it until any problem has been corrected.
  • Page 6 PRE-RIDE PRIDE CHECKLIST Ensure that your PRIDE is in proper working order each and every time you ride. If a part of the PRIDE does not function correctly, please contact our Customer Support Center. ● Always wear a helmet that meets CE safety standards. In the case of an accident, a helmet can protect you from serious injury and in some cases, even from death.
  • Page 7 ● Close the lid of the charging port and secure it. ● If your PRIDE is not to be used for an extended period of time, you may need to recharge the battery every 2 months to maintain the battery life.
  • Page 8 PRIDE is susceptible; it cannot protect you in a crash, against impact, or loss of control the way driving a car can. The PRIDE can tip over sideways or pitch you over the front wheel. It does not have bumpers or airbags as a car does.
  • Page 9 ● Do not swerve from side to side while driving. ● An accident may cause additional stress on PRIDE components, affecting them to fatigue early. Components suffering from stress fatigue can fail easily, causing loss of control or even severe injury.

  • Page 10: Safety Checklist

    Brakes do not have the same performance under wet conditions as they do in dry conditions. It is recommended that you do not ride your PRIDE in rainy weather, as there are electronic components integrated into your vehicle that may be damaged if exposed to water.
  • Page 11 ● When driving downhill, decrease your speed. ● Do not use your PRIDE incorrectly. Always be careful to avoid and anticipate any possible obstacle. There may be additional risk of injury if you use your vehicle incorrectly. For example: ● Bouncing your vehicle.

  • Page 12: Operating Your Vehicle

    OPERATING YOUR VEHICLE Make sure that the battery is fully charged before the first use. The vehicle is equipped with a built-in 650-Watt Brushless Motor, that allows you to accelerate up to 25km/h and decelerate. Turn the main switch to the ON position to activate the motor.
  • Page 13 ● Do not let the battery fall from high places, as it may damage the internal circuitry. ● Do not attempt to disassemble the battery. ● Use only the charger provided with the PRIDE. Avoid using water or other liquids for cleaning. If water or other liquids enter the scooter, it will cause permanent damage to the internal components.
  • Page 14 PRIDE DIAGRAM FEATURES/PARTS 1. Mirror 2. Headlight 3. Front Brake Lever 4. Turn Signal 5. Tire 6. Disc brake 7. Dashboard 8. Throttle 9. Seat 10. Charging Port 11. Top box 12. VIN (Vehicle Identification Number)

  • Page 15: Specifications

    4. Dashboard 10. Light Switch 5. Forward / Reverse Switch 11. Speed Adjustment Button 6. Front Brake lever 12. Throttle SPECIFICATIONS* Model: PRIDE Max. Load: 130 kg Max Speed: 25 km/h Max Distance Range: 40 km Max incline Angle: Brake Type:...
  • Page 16 TURNING ON VEHICLE Turn the key clockwise to “START” position and to activate the vehicle motor. TURNING OFF VEHICLE To turn the vehicle off, turn the key to “OFF” position. OPEN SEAT Turn the key to “OPEN” position, to unlock seat cover and open. LOCK Push key in and turn the key to “LOCK”...
  • Page 17 Your PRIDE comes with a seat compartment for extra storage and to house your battery. To access the seat compartment simply put the key in the ignition and turn it to “OPEN” position. In the storage area, you will find the: 1.
  • Page 18 CHARGING YOUR PRIDE ● Locate the charging port underneath the front end of the seat. ● Lift the charging port flap to reveal the charging port.
  • Page 19 To deactivate your parking brake, squeeze the left-hand brake lever to release the Parking Brake tab. Insert the key into the ignition and turn clockwise to the “ON” position to turn on your PRIDE. The Meter Display will turn on. Set your max speed using the three-position speed-switch.
  • Page 20 Turn the throttle slowly. The PRIDE will begin to move forward. When the PRIDE begins to move forward, put your feet in front of you on the footrest. Your speed will be determined by the turn of the throttle and your speed level setting.
  • Page 21 To stop your PRIDE, release the throttle and press your front & rear brake levers slowly until you reach a complete stop. *Do not attempt to stop suddenly as this may lead to injury or damage to your brake discs.

  • Page 22: Wiring Diagram

    WIRING DIAGRAM...

  • Page 23: Vehicle Identification

    For warranty information, please visit your Local agent. VEHICLE IDENTIFICATION You can write your scooter’s identification numbers here: Vehicle identification number (VIN) NOTES For details, updates or other technical information you may visit www.nipponia.nl ……………………………………………………………………… ……………………………………………………………………… ……………………………………………………………………… ……………………………………………………………………… ……………………………………………………………………… ………………………………………………………………………...
  • Page 24 DESIGN PRIDE is designed to be easily controlled, providing a safe, stable form of travel. The built-in rechargeable battery allows you to power up whenever you travel. The ultra bright LED headlight and brake lights provide safety as you explore your surroundings.
