STEP 10
DB9000-RX allows you to set your own

alternative frequencies.

Disabled - disable corresponding
Ÿ
Alternative frequencies;
LF/MF Follows - This tool indicates
Ÿ
that next Alternative frequency is in
the Low or Medium frequency range;
Filler is used to fill the Alternative
Ÿ
frequency list to even length.
1 to 204 - Alternative frequency. For
Ÿ
more information see "AF reference
table" placed on the right part of the
WEB Interface.

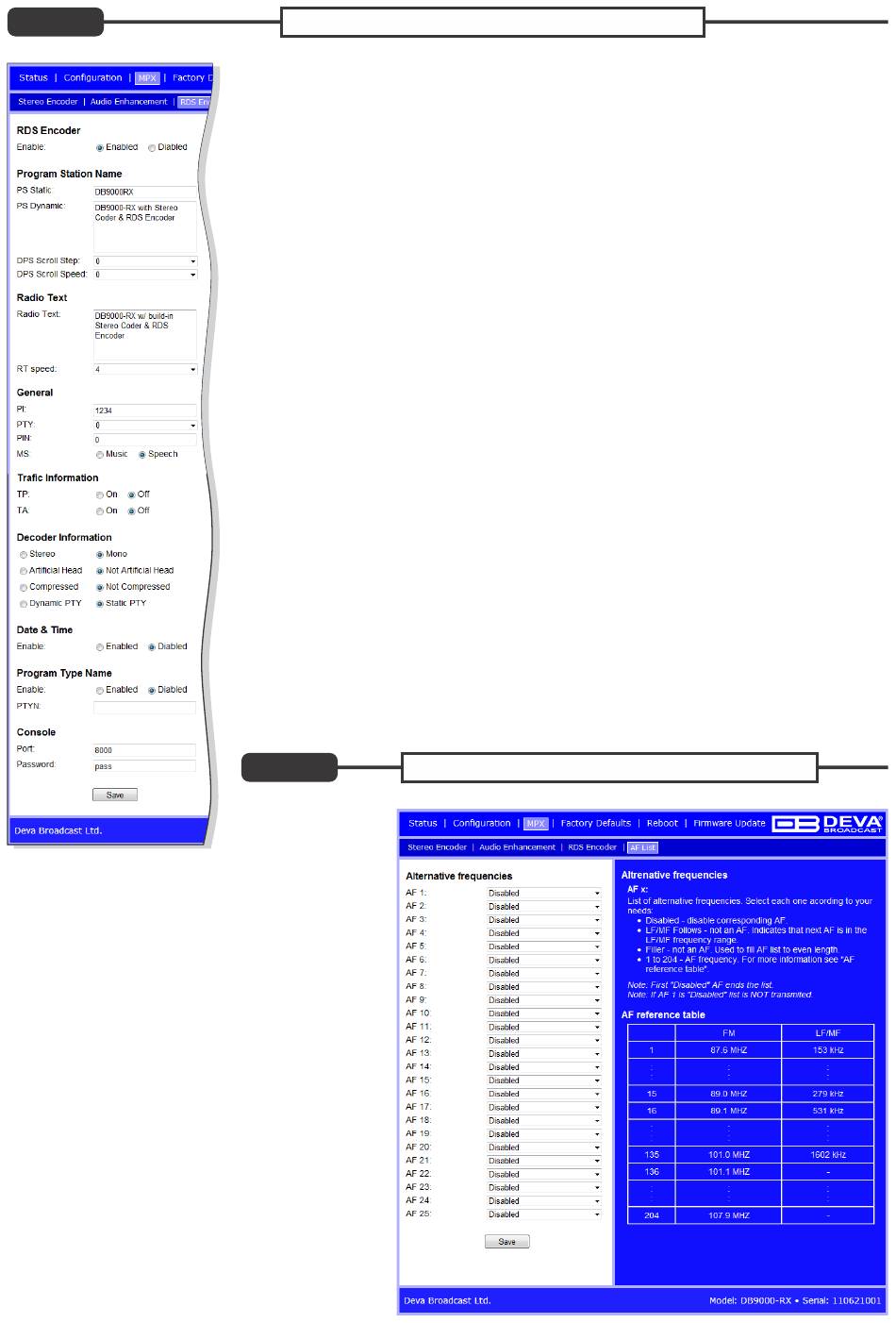

DB9000-RX has a built-in RDS Encoder, it allows you to brand your
station.
Program Station (PS) Name Settings
Comprise of PS Static, PS Dynamic, DPS Scroll Step, DPS Scroll Speed.
Radio Text Settings
After pressing the INFO button on the receiver, up to 64-character block
for visual display will appear on the faceplate of the radio.
RT Speed –Select RT transmission speed from RT off to Fast.
General Settings
Comprise of PI – Program Identification: "digital signature" of the station,
PTY – Program Type, M/S – Music / Speech Switch.
Trafic Information
TP – Traffic Program Identification. Turn TP on or Off.
TA – Traffic Announcement: Turn TA on or Off.
Decoder Information
DI – Decoder Information: This is one of several 'flags' that convey yes/no
or other very basic data.
Console Settings
Enter the TCP port of the RDS console used to edit RDS settings in real
time. Enter a Password for the RDS console: the first symbols that must be
sent to authenticate to the RDS console, otherwise the connection will drop.
If left blank, NO security is used.
STEP 11

Stereo Encoder

Alternative Frequencies
