Quick Start Guide
GFK-3268A
Oct 2023
PACSystems™ IPC 2010
QUICK START GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PACSystems IPC 2010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Emerson PACSystems IPC 2010

  • Page 1 Quick Start Guide GFK-3268A Oct 2023 PACSystems™ IPC 2010 QUICK START GUIDE...
  • Page 2: Table Of Contents

    Contents Initial Checks ..............1 Front Panel Description ..........2 Power-Input ..................3 Serial Console .................. 6 Secure Shell (SSH) ................7 IP-Addresses ................... 7 Pre-Installed Software Images ........8 Ubuntu Server Quick Start ............... 9 Default User and Passwords ........... 9 Networking Configuration ............
  • Page 3: Initial Checks

    As the consignee, it is your responsibility to register a claim with the carrier for damage incurred during shipment. Emerson will fully cooperate with you, however, should such action be necessary. After unpacking the equipment, record all serial numbers. Serial numbers are required if you should need to contact Customer Care during the warranty period.

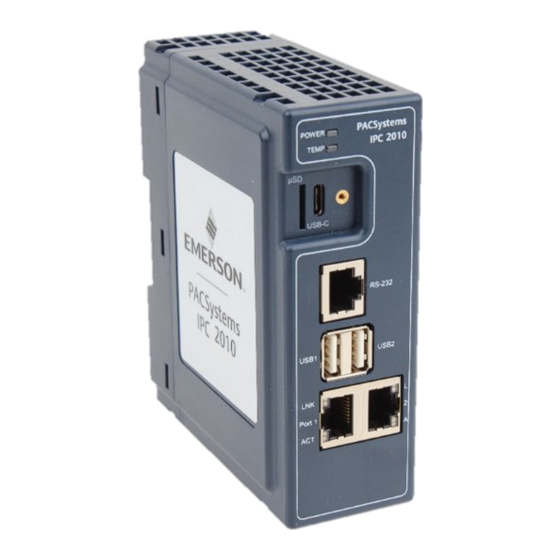

  • Page 4: Front Panel Description

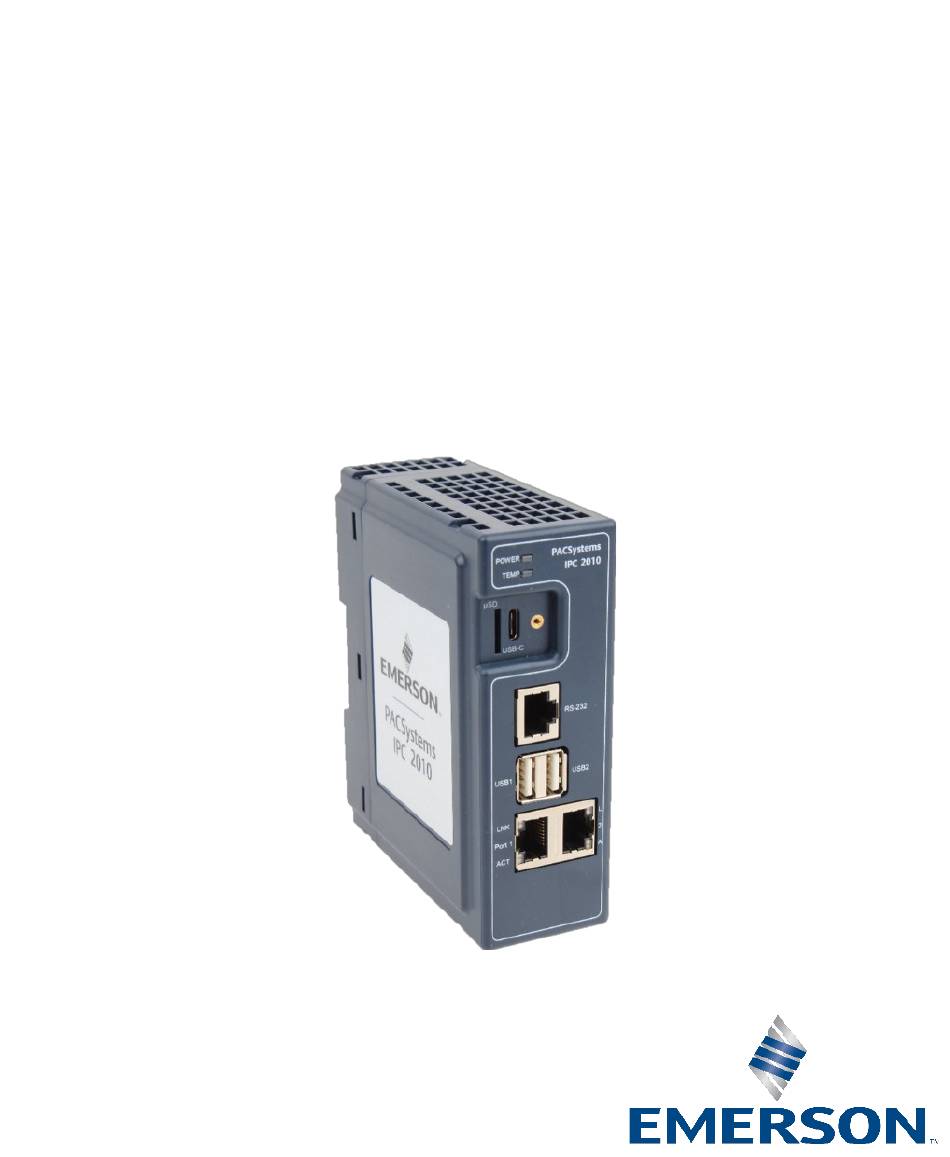

    Front Panel Description Figure 1: Overview Number Description Power & Temperature LED µSD Card slot USB-C port Serial port USB ports Ethernet ports Power Connector PACSystems™ IPC 2010 GFK-3268A...
  • Page 5: Power-Input

    Power-Input To power the system, a voltage of 24 V DC must be supplied to the power connector. The IPC 2010 power supply must meet the requirements for SELV (safety extra-low voltage)/LPS (limited power source) or ES1/PS2 appropriately rated for the ambient and altitude of the application.
  • Page 6 CAUTION Equipment is intended for installation in Restricted Access Area. Les matériels sont destinés à être installés dans des EMPLACEMENTS À ACCÈS RESTREINT. Battery The IPC 2010 contains a CR2032 lithium coin battery. It is a industrial CR2032 (-40°C to 125°C) battery and is accessible on the right side of the IPC 2010.
  • Page 7 Battery Maintenance To replace the battery, pull the battery holder (on the right side of the system) out of the system, replace the battery and insert the battery holder back into the system. Figure 3: Battery Removal CAUTION - Only replace with CR2032 battery. Batteries may explode if mistreated.
  • Page 8: Serial Console

    Serial Console To gain access to the system, utilize the serial console port (4) by connecting it to the host PC’s RS232 interface using a null modem cable. Once connected, the host can establish a connection by running a terminal emulator such as HyperTerminal or minicom. The default serial port parameters are 115200, 8N1 The connector is RJ-45 style with pinout as defined in EIA/TIA-561, so that off-the-shelf adapters to DB9 or USB can be used.
  • Page 9: Secure Shell (Ssh)

    Secure Shell (SSH) To establish a connection with the system, Ethernet can be used instead of the serial console. The system has an SSH server running on port 22, and the default IP address settings are described below. To connect to the system, use Putty on a Windows host or the default SSH tools on Linux.
  • Page 10: Pre-Installed Software Images

    Pre-Installed Software Images IPC 2010 comes with two pre-installed software options: • Ubuntu Server 20.04.05 LTS • PACEdge v2.3.0 (based on Ubuntu 20.04 Server) Depending on pre-installed software login credentials and some of the configuration tasks are different. Sections bellow will guide through the getting started process for each of these software options.
  • Page 11: Ubuntu Server Quick Start

    Ubuntu Server Quick Start Ubuntu Server 20.04.05 LTS software package provides a basic Linux operating system environment on IPC 2010. Software installation contains only basic software packages, but user can easily install additional packages by using apt command. Default User and Passwords ubuntu Default Username ubuntu...
  • Page 12: Networking Configuration

    Networking Configuration In Ubuntu Server, the interface Port 1 is named lan1, the interface Port 2 is named lan0. CAUTION MULTIPLE DEVICES WITH THE SAME IP ADDRESS ON THE SAME NETWORK CAN LEAD TO ADDRESS CONFLICTS WITH UNPREDICTABLE BEHAVIOR. If you are using several microIPC devices in the same network, it is strongly recommended to change the static IP Address.
  • Page 13: Additional Network Configuration

    Additional network configuration If the system obtains an IP address via DHCP, the server may supply additional information like DNS server addresses or the default gateway to configure the client system. If this is not the case, or when using manual IP configuration, some additional settings must be made to obtain full network functionality.
  • Page 14: Pacedge Quick Start

    PACEdge Quick Start PACEdge version 2.3.0 software package is a data acquisition, analytics and visualization platform based on Ubuntu 20.04 Linux. Following sections will describe steps to get started. For additional information please consult PACEdge v2.3.0 User Manual. On IPC 2010 PACEdge operates in a headless mode with the user accessing it remotely via Ethernet using a web interface.
  • Page 15: Getting Started

    The message will state that the identity of the device could not be confirmed. To proceed please click on Advanced and Accept. Please read and accept the Emerson End User License Agreement (EULA). PACSystems™ IPC 2010...
  • Page 16 Once EULA has been accepted you will be redirected to the Password Management screen. PACEdge software consists of multiple software tools and applications, each having its user management and password settings. To simplify the process, PACEdge comes with pre-configured users: admin, developer, service, and operators, each having its own password.
  • Page 17 Figure 5: Password Management Screen (top portion: PACEdge Applications, bottom portion: Cockpit/Linux) GFK-3268A PACSystems™ IPC 2010...
  • Page 18 Once the passwords have been changed, click on the Emerson logo in the upper-left corner. The logo is a shortcut to the PACEdge Landing Page, which has further shortcuts to Node-RED, Grafana, Cockpit, Portainer, and other applications. The user can return to the Password Management screen from the PACEdge landing page by clicking Password Management in the Settings drop-down list on the right side.
  • Page 19: Additional Information

    To explore PACEdge, click on Node-RED and log in with: • user: admin • password: edgestack (or the password that was set on the Password Services page) Start exploring example flows or create your own flows. Consult the PACEdge User Manual (GFK-3178) for example details. Important: Please consult the PACEdge Secure Deployment Guide (GFK-3197) for recommended password changes and other cybersecurity...
  • Page 20: Led Control

    U-boot console. More information about the boot loader and its functionality can be found in the document ‘CPU1v2 U-boot Manual’, which is available from Emerson. PACSystems™ IPC 2010 GFK-3268A...
  • Page 21: Additional Information

    All Rights Reserved. We reserve the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice. Emerson does not assume responsibility for the selection, use or maintenance of any product.
