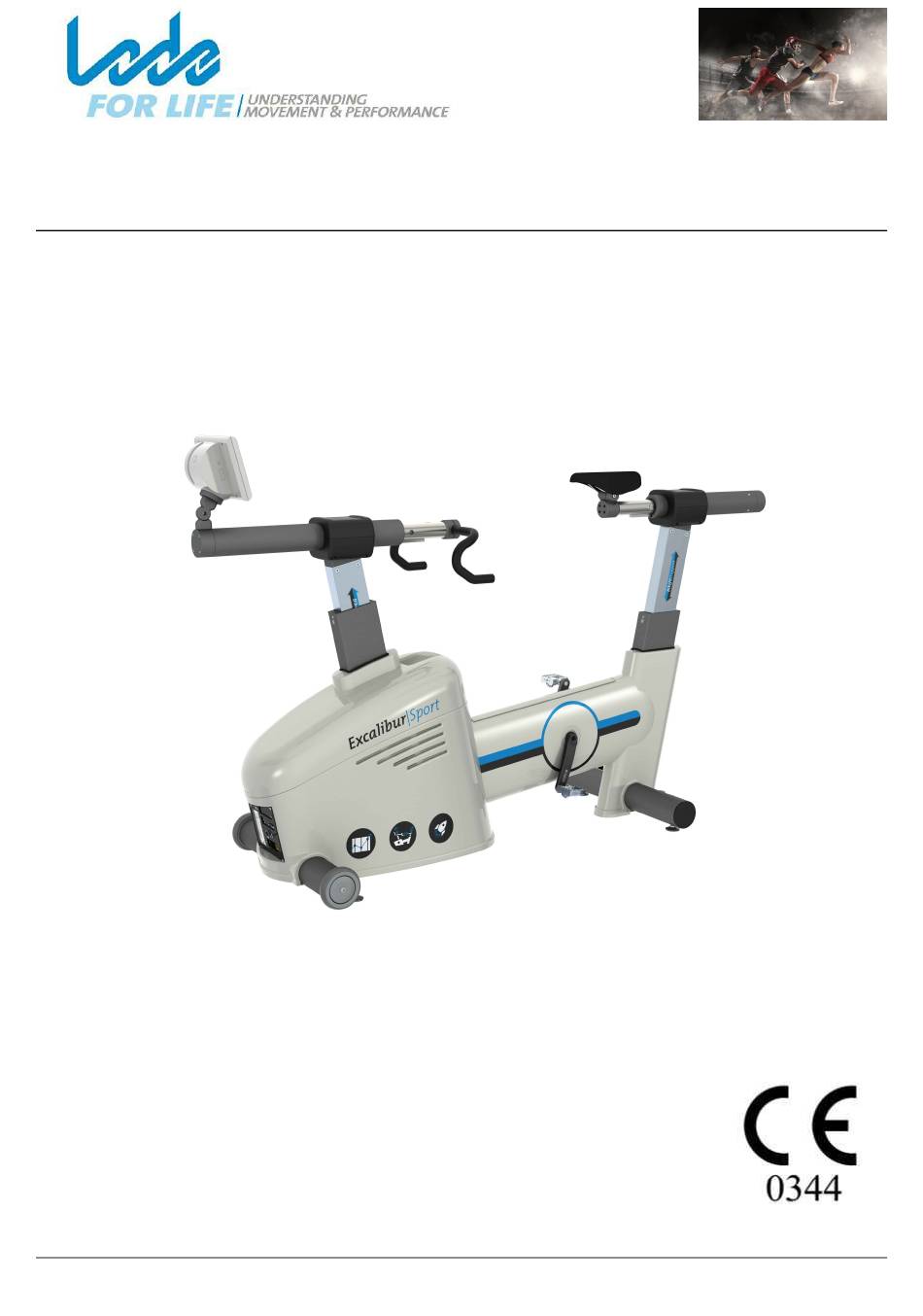

- Page 1 - Manual Excalibur Sport 2019 Sports Medicine Lode BV Zernikepark 16 NL 9747 AN Groningen The Netherlands t: +31 50 571 28 11 f: +31 50 571 67 46 @: ask@lode.nl www.lode.nl M965910 / VERSION: 1.5 - 2021-12-22...
-
Page 2: Table Of Contents
8 - Terminal - external control 8 - Terminal - external control 8.1 - External control with ECG or Ergospirometry system 8.2 - External control with Lode Ergometry Manager 8.3 - Display 9 - Excalibur PFM (965920) 9 - Excalibur PFM (965920) - Page 3 15 - Specifications 15 - Specifications...
-
Page 4: Intended Use
The maintenance and service of the medical device has to be done by a well-trained service engineer who is working for a Lode distributor and is specifically trained regarding the MD by the International Service Coordinator of Lode. - Page 5 The operator should not touch accessible parts and the patient simultaneously. Read this manual before using the device and follow it carefully. The operator should instruct the test subject prior to performing an exercise protocol. If, at any time during exercise, the test subject feels faint, dizzy, or experiences pain, stop the test and he or she should be consulted by the physician.
- Page 6 Be sure that no cables are in the area of the crank shaft. Check for completeness of all warning labels on the equipment. A regular check of the fixation and guiding of the power cord is needed. The operator should clean the device (handgrips, cushions) after each exercise test.
- Page 7 Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the ergometer, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
-
Page 8: Contra Indication
3 - Contra Indication Although the ergometer does not have any contra indication other than the maximum weight and length of the test subject, in respect of exercise testing the following contra indication should taken into account: -Acute myocardial infarction (within 2 days) -Unstable angina not previously stabilized by medical therapy -Uncontrolled cardiac arrhythmias causing symptoms or hemodynamic compromise -Symptomatic severe aortic stenosis... -
Page 9: Validity
4 - Validity This manual covers all Excalibur versions starting with the following serial number: 965910 Excalibur Sport: S/N 20190001 - 965920 Excalibur Sport PFM: S/N 20190001 - Date of first issue: 2019-07-01 4.1 - Description of parts 1. Display (APPLIED PART) 2. -
Page 10: Installation
5 - Installation 5.1 - Install the device - Unpack the device while leaving the transport straps in place. - Place the device in the location where it will be used. - Remove transport straps and remaining packaging materials. - Connect the power cord to the line output at the required voltage (see type plate). - Remove all objects from the device. -
Page 11: Connecting Cables
5.3 - Connecting cables The connection for the power cord and optional connectors for external devices are placed at the front side of the ergometer, so they are easy to reach. The operator is instructed not to connect any device to the optional connectors unless it possesses an approval to 60601-1 or 60950 issued by an... -
Page 12: Preparation
The saddle and handlebar adjustments are electrical and can be done in the control unit of the Excalibur or in the Lode Ergometry Manager software (see manual LEM). When the test subject sits on the Excalibur and slowly pedals without a load the saddle and handlebar settings can be fine tuned. -
Page 13: Exchange Parts Of The Excalibur
"Ergometer Adjustment" is used to change saddle and handlebar position. The button in the middle is used to select in which direction (horizontal or vertical) the saddle or handlebar needs to be changed. Press on the button until the correct direction is selected. -
Page 14: Exchange Saddle
7.1 - Exchange saddle Use Allen key #6 to loosen the screw. When possible remove the saddle and place the desired saddle. Tighten the screw again. 7.2 - Exchange handle bar Use Allen key #4 to loosen the four screws and remove the small frontpanel. -
Page 15: Exchange Pedals
1. Connect the device with the supplied USB cable to the external device (optionally RS232 cable can used (930911)). You can control the device with e.g. an exercise ECG device or Metabolic Cart. 2. Download the interfacing instructions from the internet at www.lode.nl after you have registered your device. -
Page 16: External Control With Lode Ergometry Manager
LEM (see for detailed instructions the user manual of LEM). Note: Lode Ergometry Manager (LEM) is a PC software program having it's own medical CE mark. The RS232 connection and the USB connection on the Excalibur can only be used for external CPET devices. -
Page 17: List Of Symbols Used
10 - List of symbols used General warning Read manufacturer’s guide, advices and instructions and manual Alternating Current IEC 60417-5032 The equipment has a safety earth (ground) connection and must be connected to an earthed (grounded) wall socket. Potential Equalization Conductor Caution "ON"... -
Page 18: Maintenance
Opening of the equipment by unauthorized agencies is not allowed and will terminate any claim to warranty. Lode will make available on request circuit diagrams, component part lists, descriptions, calibration instructions, or other information that will assist authorized service personnel to repair those parts of the ergometer that are designated by Lode as repairable by authorized service personnel. -
Page 19: Cleaning
The ergometer should be calibrated once a year. In case any damage is observed of the ergometer Lode B.V. or his representative should be informed in order to execute the necessary repair(s). Service of the ergometer is restricted to factory-trained personnel only. -
Page 20: Accessories
14 - Accessories Add program function Colour Display 3.5" - External Blood SpO2 for control unit Bluetooth Smart heart to 7" touch screen for 2nd screen Pressure monitor for with touch panel (extra rate ergometer bicycle ergometer long ... Partnumber: U945835 Partnumber: U945835 Partnumber: 945819 Partnumber: 945819... - Page 21 USB to Serial converter RS232 cable Network module Packaging upgrade to Custom pack connection cable wooden box Powercable 100 - 127 V for ergometers Partnumber: 226012 Partnumber: 226012 Partnumber: 930911 Partnumber: 930911 Partnumber: 930930 Partnumber: 930930 Partnumber: U501155W Partnumber: U501155W Partnumber: 945892 Partnumber: 945892 Easy connection...
- Page 22 15 - Specifications Workload User Interface Minimum load 10 W English user interface Maximum peak load 3000 W Chinese user interface Isokinetic workload control Croatian user interface Minimum load increments Czech user interface Hyperbolic workload control Danish user interface Linear workload control Dutch user interface Fixed torque workload control Finnish user interface...
- Page 23 Control Unit with touch screen 7" for Minimum operational temperature 14 °C ergometer Maximum operational temperature 40 °C Lode interface protocol Minimum operational air pressure 80 kPa Ergoline P10 interface protocol Maximum operational air pressure 106 kPa Ergoline P4 interface protocol...
