- Page 1 Service documentation Lode BV Zernikepark 16 NL 9747 AN Groningen The Netherlands t: +31 50 571 28 11 f: +31 50 571 67 46 @: ask@lode.nl www.lode.nl INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03...
-
Page 2: Table Of Contents
1 - List of symbols used 1 - List of symbols used 2 - Validity 2 - Validity 3 - Setup instructions GE MAC 1200ST 3 - Setup instructions GE MAC 1200ST 3.1 - Cable selection 3.2 - Software Setup 3.3 - Ergometer setup... -
Page 3: List Of Symbols Used
* All Valiant treadmills starting with serial number 932900-20122XXX and 9329XX-20121XXX * All Valiant 2 treadmill starting with serial number 9389xx-20140001 If your treadmill or ergometer is not covered by this interface form please contact Lode service service@lode.nl INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03... -
Page 4: Setup Instructions Ge Mac 1200St
7. Save setup to system by using the configure button. 3.3 - Ergometer setup 3.3 - Ergometer setup The following protocol needs to be set in the Lode ergometer to communicate with the external equipment. Treadmill ergometer: Trackmaster The next chapters describe the procedures to setup these protocols depending on the type of ergometer. -
Page 5: Setting Up The Hardware

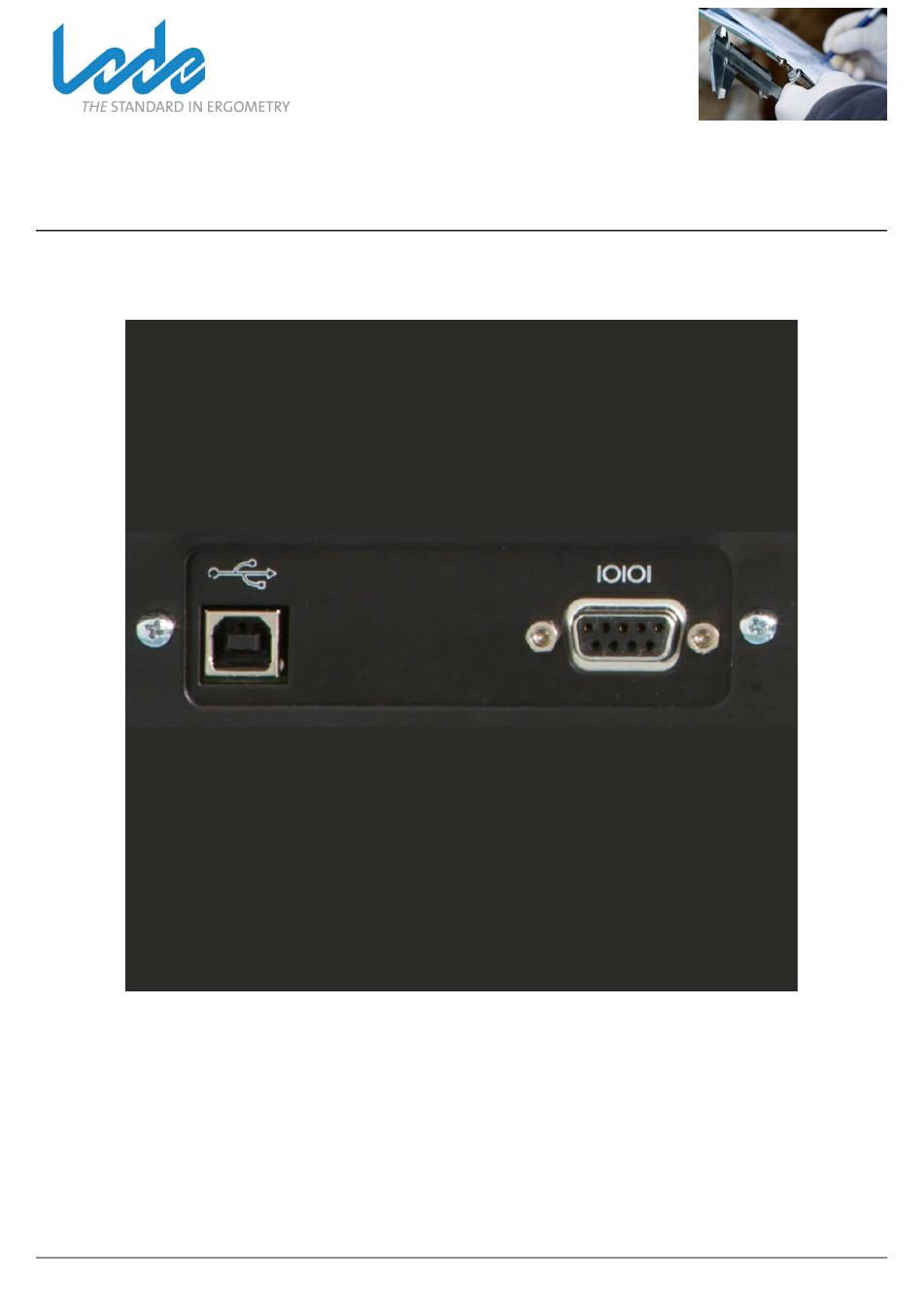

4 - Setting up the hardware Setting up the hardware Lode ergometers have two ways of connecting external devices. The cable selection depends on the connection possibilities of the external device. The previous chapter tells you which cable you need. This can be a RS232 cable or a USB cable. -
Page 6: Connecting With The Usb Cable
If there is no other connection available you can also use a USB cable to connect. 1. You will need an USB A to B cable (Lode part no. 930916) to establish communication between the Lode ergometer and your stress system or ergospirometrysystem. -
Page 7: Treadmill Or Ergometer With 3.5" Touch Screen Unit
Swipe with your finger over the screen as indicated with the red arrow in the picture to go to the main menu. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 7/21... - Page 8 The menu "Service" is only intended for service purposes to be executed by factory trainend personel. Select "Terminal Settings" to change the communication protocol. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 8/21...
- Page 9 Select the Communication protocol as desribed in "Ergometer setup" chapter. Select "Default" for the baudrate. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 9/21...
- Page 10 Select "RS232" or "USB" depending in which cable you have connected to the Lode ergometer. Select the button with the house to go back to the main menu. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 10/21...
- Page 11 Select "Terminal" to set the ergometer in terminal mode. Your device is now ready for external control. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 11/21...
-
Page 12: Treadmill Or Ergometer With 7" Touch Screen Control Unit
*Note that for this instruction the graphic view for a Lode Corival is used. The view for a treadmill might difer a bit but the procedure is the same. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 12/21... - Page 13 "Terminal". Select the communication protocol ad described in the "Ergometer setup" chapter. Use the scroll button to view the complete list. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 13/21...
- Page 14 Select "Default" for the baudrate. Select "RS232"or "USB" depending on the type of cable that you connected to the Lode ergometer. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 14/21...
- Page 15 - Go to the settings menu - Select "Default Start Menu" - Select "Terminal" - Switch the ergometer off and on. It will boot directly into terminal mode. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 15/21...
-
Page 16: Nummerical Control Unit - Treadmill Only
7 - Nummerical Control Unit - Treadmill only 7 - Nummerical Control Unit - Treadmill only 1. Press and hold key #1 and #2 as shown on "Figure 1" for 10 seconds. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 16/21... - Page 17 3. By using the "+" and "-" keys for the grade adjustment #3 you can change the "0" behind terminal to "1" to activate the Terminal mode. 4. Press enter #4 and "prot id" will be shown on the display, for Lode protocol this should be set to "1". Set the protocol as described in the "Ergometer setup" chapter.
-
Page 18: Treadmill Or Bicycle Without Control Unit
Connect an USB cable from the computer to the USB port of the treadmill or use a RS232 cable from the computer to the RS232 port Start the Lode Service Manager and login with the same account details that you use to login on the website. - Page 19 6. Switch the device off, wait 10 seconds 7. Switch the device on The screen as shown left should show up within 5 seconds after powering up. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 19/21...
- Page 20 Lode ergometer. Select default for the baudrate. Note that Default should always be selected unless different specified by your dealer. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 20/21...
- Page 21 Your device is now ready for use with the external controller. Note that the device is automatically switched to terminal mode when no manual controller is present at the device itself. INTERFACE SHEET - GE MAC 1200ST - CPET TREADMILL / VERSION: 1.0 - 2015-11-03 21/21...
