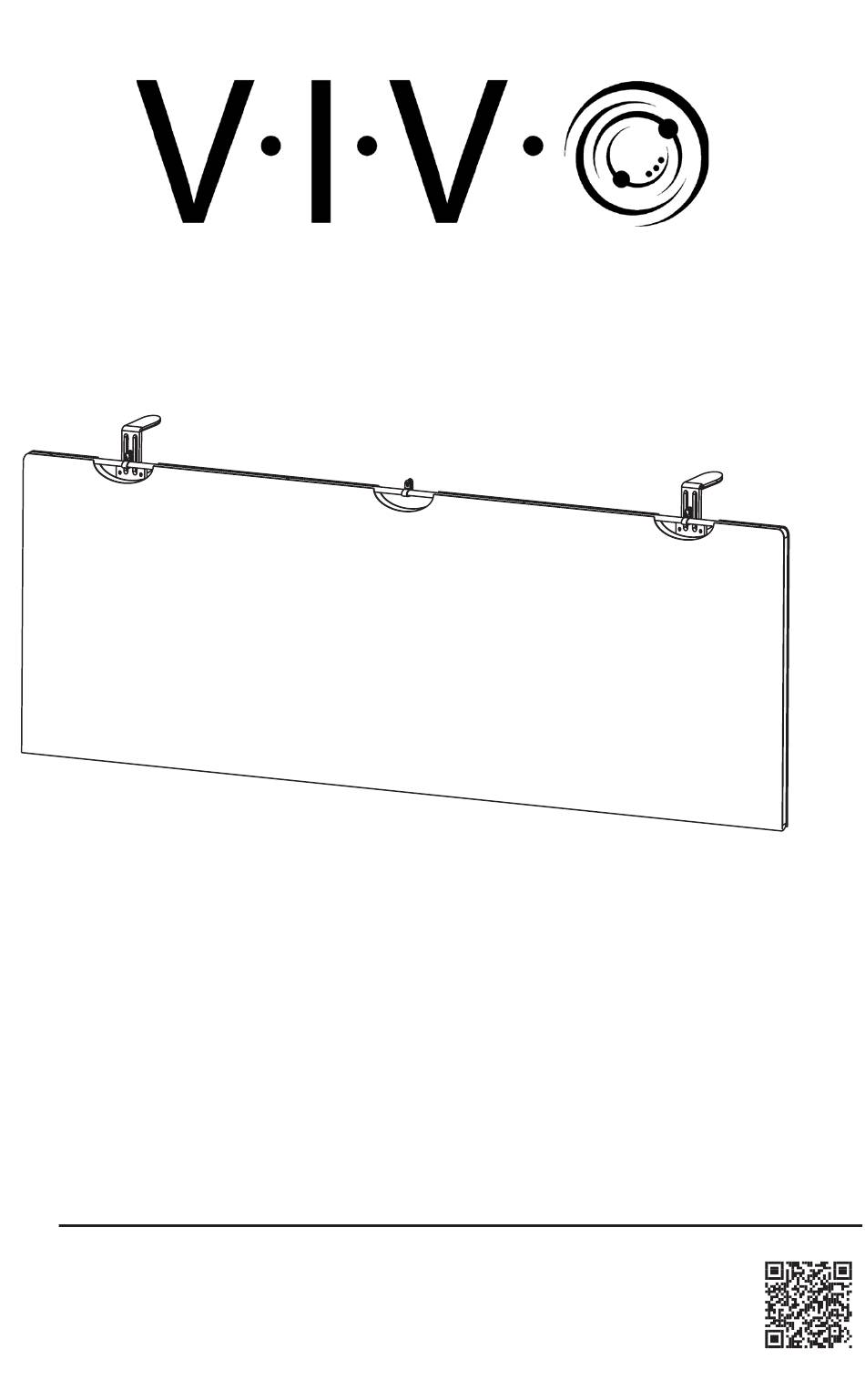

- Page 1 Clamp-On 60” Cable Management Desk Organizer SKU: DESK-SKIRT-60-P Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-skirt-60-p...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents A (x1) B (x2) C (x4) Panel Side Bar T Joiner D (x2) E (x3) F (x6) Clamp Mounting Clip Upper/Lower G (x2) H (x4) Middle Bar Joiner Included Hardware S-A (x2) W-A (x1) Screw 3/4” Screw Tools Needed: Phillips Screwdriver... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Connect the centers of the T Joiners (C) to the ends of the Middle Bars (G). Connect the Upper/Lower Bars (F) to the sides of the T Joiners (C), then connect the Joiners (H) and Side Bars (B) to the sides to complete the frame assembly. Lighty tap each joint against a hard surface to ensure all bars and joiners are full pressed in. - Page 5 STEP 2 Open the flap and straps of the Panel (A) and insert the frame, making sure the frame is fully inserted and the material is tightly stretched around it. Note: Confirm that frame pieces are fully secure into each other before sliding into panel.
- Page 6 STEP 3 Place the plastic Mounting Clips (D) in the center of each exposed portion of the steel bars. NOTE: Make sure the wire management flap on the Panel (A) is facing the inside of the desktop. S-A (x1) <1.5”/40mm Desktops For thinner desktops (<1.5”/40mm), adjust Clamp (D) by disassembling, flipping the bottom bracket, and reassembling using a Phillips screwdriver.
- Page 7 STEP 4 Secure Mounting Clips (E) to Clamp (D) in one of four mounting locations using 3/4”Screws (S-A).
- Page 8 STEP 5 Mount the assembled panel to the desktop and tighten Clamps (D) to secure the assembly in place. Route and organize the cables and secure them using the flap on the panel (A).
-
Page 9: Screw Mount
OPTIONAL: Screw Mount If you need to convert you desk skirt into a screw mount, please use the following instructions for how to use the screw mount method. STEP 1 Follow original steps 1-3 and proceed. Center the assembled panel under the desktop and use a pencil to mark the locations of Plastic Mounting Clips (D). - Page 10 STEP 2 Drill pilot holes using a 1/8” (3mm) bit. Mount the assembled panel to the underside of the desk using 3/4” Screws (W-A) as shown into Plastic Mounting Clips (D). Route and organize the cables and secure them using the flap on Panel (A).
- Page 11 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
-
Page 12: Last Updated
LAST UPDATED: 01/08/24 REV1.1 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
