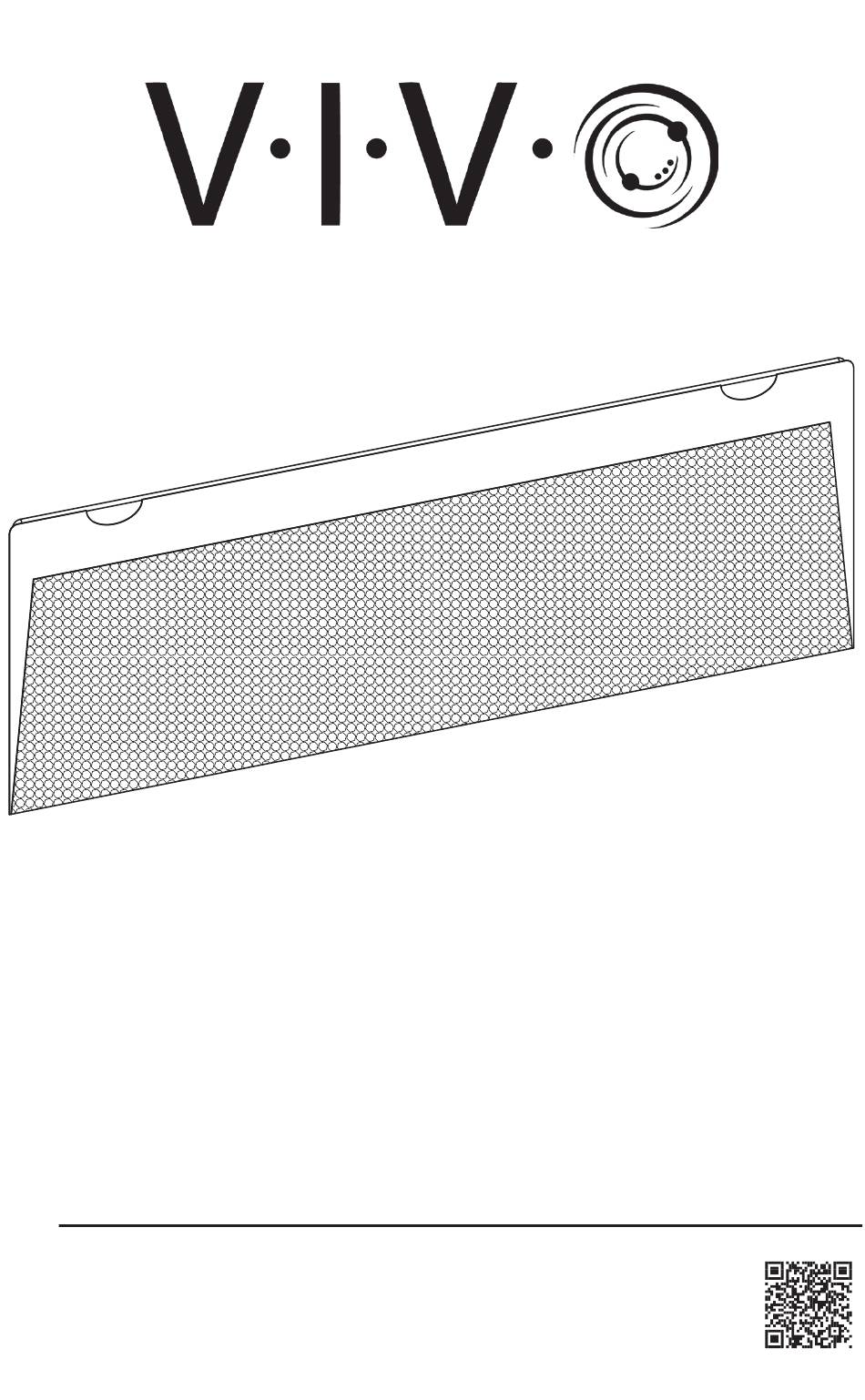

- Page 1 48” Cable Management Desk Organizer SKU: DESK-SKIRT-48 Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-skirt-60...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
-
Page 3: Package Contents
Package Contents B (x2) C (x4) A (x1) Side Rod T Joiner Panel D (x2) E (x8) F (x4) Mounting Clip Joiner Included Hardware S-A (x2) ST4.8x19mm Screw Tools Needed: Phillips Drill 9/64” (3.5mm) Pencil Screwdriver Drill Bit... -
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Connect the centers of the T Joiners (C) to the ends of two Rods (E). - Page 5 STEP 2 Connect additional Rods (E) to the sides of the T Joiners (C), then connect the Joiners (F) and Side Rods (B) to the sides to complete the frame assembly. Lightly tap each joint against a hard surface to ensure all rods and joiners are fully pressed in.
- Page 6 STEP 3 Open the flap and straps of the Panel (A). Insert the Frame into the Panel (A), making sure the frame is fully inserted and the material is tightly stretched around it. Frame Snug Fit: Fabric on Panel has a tight fit around the frame and may need to be stretched before inserting the frame.
- Page 7 STEP 3 - Cont’d (A1) Fasten Straps on inside of Panel to secure the frame. STEP 4 Place the plastic Mounting Clips (D) in the center of each exposed portion of the steel bars.
- Page 8 STEP 5 Center the assembled panel under the desktop. Mark drilling locations using a pencil. Pre-Drilling Instructions Drill mounting holes using illustration below. 9/64” (3.5mm) Drill Bit 5/8” (16mm) Hole Depth...
- Page 9 STEP 6 Mount the assembled panel to the underside of the desk using the ST4.8x19mm Screws (S-A) and a Phillips screwdriver as shown. ≥1” WARNING Desktop must be at least 1” thick to prevent screws from poking out through the top and damaging the surface. NOTE Ensure the wire management flap on the Panel (A) is facing the inside of the desktop.
- Page 10 STEP 7 Route and organize the cables and secure them using the flap on Panel (A).
- Page 11 [ THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK ]...
-
Page 12: Last Updated
LAST UPDATED: 11/07/24 REV1.1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
