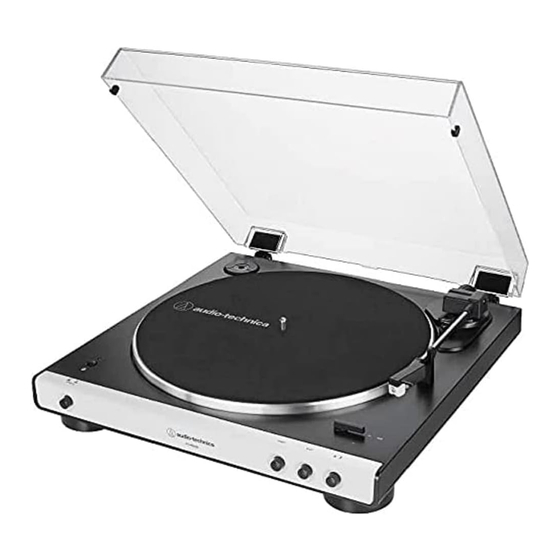

- Page 1 AT-LP60XBTa User Manual Automatic Wireless Turntable...
-
Page 2: Package Contents
Introduction Thank you for purchasing this Audio-Technica product. Read through this user manual before using the product to ensure its correct use. Also, keep this manual for future reference. This product can be used only in the countries where the product is sold. Make sure that the operating voltage and the plug of AC adapter of the product are correct for the country you live in. -
Page 3: Safety Precautions
Safety precautions Safety precautions RF Exposure Statement: Although this product was designed to be used safely, failing to use it correctly may result in an accident. To ensure safety, This transmitter must not be co-located or operated in observe all warnings and cautions while using the product. conjunction with any other antenna or transmitter used in other systems. -
Page 4: Part Names And Functions
Part names and functions 45 RPM adapter (shown in receptacle) Dust cover Adapts 7" records with large center holes to fit center Platter speed button spindle. Select the platter speed (33-1/3 or 45 RPM). Platter START button Spindle Spins the platter and moves the tonearm. Felt mat STOP button Returns the tonearm to its original position and stops the... -
Page 5: Preparation For Use
Preparation for use 2. Place the belt on the motor pulley (brass-colored). Installing the turntable Align one of the platter openings with the brass motor • pulley, and, while pulling both ends of the red ribbon that Mount the product on a level surface. •... -
Page 6: Rotating The Platter
Preparation for use Rotating the platter Wireless/wired connection 1. Using your hands, rotate the platter ten times. You can connect to a speaker, etc. via Bluetooth technology or RCA audio cable. Remove the tie that locks the tonearm and press the •... - Page 7 Preparation for use 3. When pairing is complete, the indicator LED lights in blue. Connecting via Bluetooth wireless technology The product supports Bluetooth wireless connection. It can be connected with Bluetooth-compatible headphones, active speakers and wireless stereo speakers (hereinafter referred to Blue as Bluetooth receiver devices).
-
Page 8: Setting Pre-Amplifier Selector Switch
Preparation for use Setting pre-amplifier selector switch Connecting the device This product has a built-in phono equalizer function. You can Align the settings for the pre-amplifier selector switch and use the product even if you do not have a phono amplifier or connect the RCA audio cable to an input jack that is compatible connectable equipment with a built-in phono amplifier. -
Page 9: Playing A Record
Playing a record Before playing a record Manual operation 1. Remove the cartridge’s protector. Lower the volume of the amplifier, speakers, etc. sufficiently. Pull the protector straight forward to remove it. • 1. Press the tonearm lift button. Applying a downward force may cause the stylus to come •... -
Page 10: Pausing The Record
Playing a record Pausing the record How to use with Bluetooth connection 1. After lowering the volume of the amplifier, speakers, To connect for the first time, pair the product and your device • etc. sufficiently, press the tonearm lift button to lift the via Bluetooth wireless technology. -
Page 11: Replacing The Stylus
Care Replacing the stylus Turntable body Removing the stylus When the turntable body is dirty or dusty, first disconnect the In addition to the deterioration of sound quality, records may • • AC adapter, and then wipe off the dirt and dust with a soft, also be damaged as the cartridge’s stylus tip wears down. -
Page 12: Replacing The Belt
Replacing the belt Replacing the belt 5. Place the belt on the motor pulley (brass-colored). The belt is a consumable part. Replace the belt if the speed of • playback slows down or irregular rotation occurs. As a rule of Grasp the belt that was attached in step 3 and, while •... -
Page 13: Troubleshooting
Troubleshooting Problem Solution The platter does not spin. Is the AC adapter connected to the outlet? Connect the AC adapter to the outlet. • Has the belt slipped from the platter? Correctly place the belt on the platter. • Is the belt placed on the motor pulley? Check that the belt is placed on the motor pulley •... -
Page 14: Specifications
Dimensions Specifications Turntable 359.5 Type Belt-drive, fully automatic operation Motor DC servo-controlled Speeds 33-1/3 RPM, 45 RPM Turntable platter Aluminum Wow and flutter < 0.25% (WTD) at 3 kHz Signal-to-noise ratio > 50 dB (DIN-B) Cartridge Type Outputs levels “PHONO” 2.5 mV nominal at 1 kHz, 5 cm/sec “LINE”... - Page 15 • The Bluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Audio- Technica Corporation is under license. All other trademarks are property of their respective owners. • Qualcomm aptX is a product of Qualcomm Technologies, Inc.
