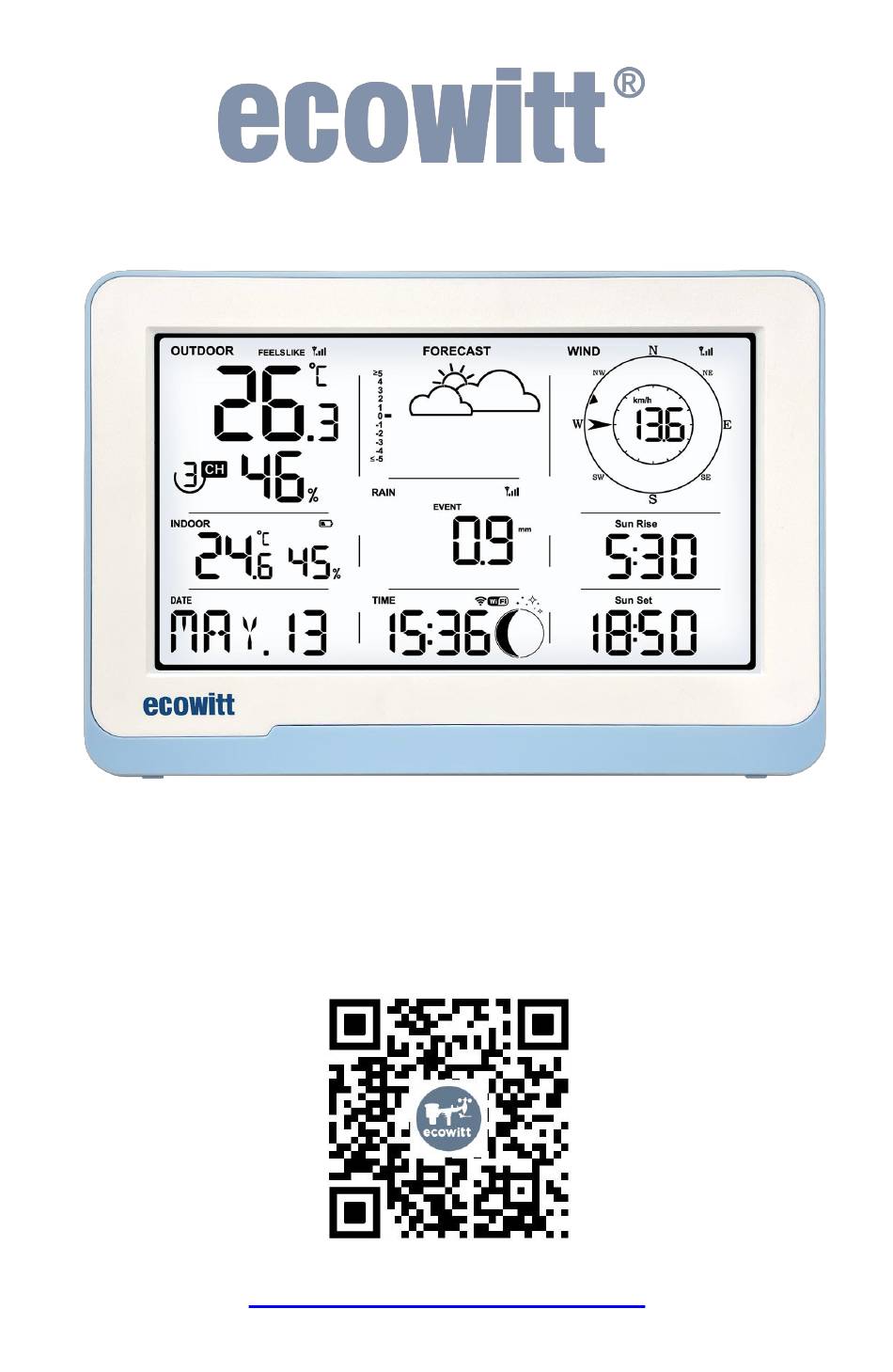

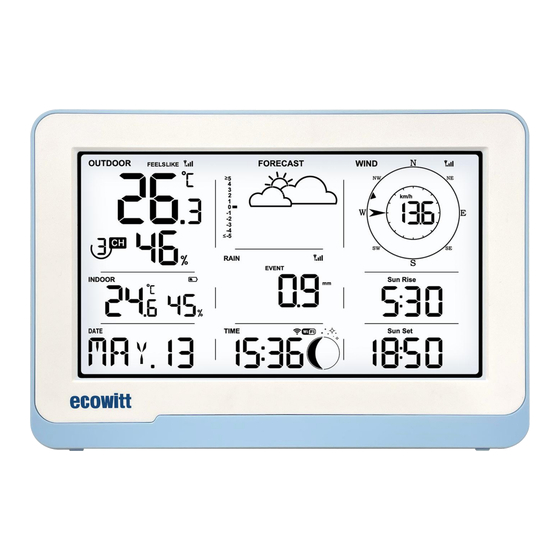

- Page 1 Weather Station Receiver Manual Model: WS3800 https://s.ecowitt.com/FD6USP...
-
Page 2: Table Of Contents
2.2.1 Power-up ................... 5 2.2.2 Download the Ecowitt App ............6 2.2.3 Connect the Station to Wi-Fi via Ecowitt App ......7 2.2.4 Connect the Station to Wi-Fi via Web Page 192.168.4.1 ..11 2.2.5 Device Location, Timezone, DST, and Data Public ....14 2.2.6 Replacing Wi-Fi Router ............15... - Page 3 3.8 Firmware Upgrade ................. 37 4. Optional Sensors .................. 38 4.1 Sensors ................... 38 4.1.1 Sensor Data Can be Displayed on the WS3800 ..... 39 4.1.2 Sensor Data Can Only be Uploaded to the Cloud ....41 4.2 IoT Device ..................42 4.2.1 Method 1 to Add Sub-device ..........
-
Page 4: Introduction
Just so you know, the WS3800 needs to be used with optional sensors to obtain outdoor weather data and is not a standalone product. The following user guide provides step by step instructions for installation and operation. -
Page 5: Installation
2. Installation 2.1 Part List 1 x WS3800 Weather Station Receiver 1 x User Manual 1 x DC to USB Cable 2.2 Wi-Fi Configuration 2.2.1 Power-up Figure 2 Insert the 5V 1A Power Adapter into an outlet, and then plug it into the Power Jack on the back of the station. -
Page 6: Download The Ecowitt App
Visit the App Store or Google Play Store or scan the QR code below to download the free Ecowitt App onto your mobile device. Open the Ecowitt App, follow the on-screen setup instructions to create an account, add a new device, and follow Section 2.2.3 or 2.2.4 below to connect your station to your Wi-Fi network. -
Page 7: Connect The Station To Wi-Fi Via Ecowitt App
2.2.3 Connect the Station to Wi-Fi via Ecowitt App (1) Open Ecowitt App →"My Devices"→"Add New Devices"→click WS3800 icon→choose WiFi Provisioning： Figure 4... - Page 8 (2) Hold WS3800's button TEMP + - for more than 2s in normal mode will turn on its hotspot, Wi-Fi icon will flash fast on the screen. Use mobile phone to connect to the hotspot "WS3800x-WIFIxxxx" emitted by WS3800. Then tick "Operation Completed"→"Next".
- Page 9 Figure 6 (4) Fill in the Wi-Fi SSID and password, then click "Submit". Figure 7...
- Page 10 (5) Now the gateway setup is successful. Switch the network of phone to the same Wi-Fi WS3800 is connected to. WS3800 has been successfully added to the App, then the data can be viewed online. Note: If you are unable to connect the...
-
Page 11: Connect The Station To Wi-Fi Via Web Page 192.168.4.1
2.2.4 Web Page 192.168.4.1 (1) Hold TEMP + - to turn on WS3800’s hotspot and connect to this hotspot with your mobile device. Use mobile browser to search the URL: 192.168.4.1. No password is set by default. Click login. Figure 9... - Page 12 Figure 10 (3) Now the WS3800 is successfully connected to the Wi-Fi router. Copy the MAC address for the following steps. Figure 11: Copy the MAC address...
- Page 13 (4) Switch the network of phone to the same Wi-Fi WS3800 is connected to. Open Ecowitt App →"My Devices"→ "Add New Devices" →click WS3800 icon →choose Manually Adding. Figure 12 (5) Edit the Device Name and paste the MAC address copied in step (3) into the box, and click "Save", then the data can be viewed online.
-
Page 14: Device Location, Timezone, Dst, And Data Public
4. Click "Save", then reboot the WS3800 device, the WS3800 will automatically synchronize time and DST. Figure 14: Related settings via Ecowitt App Note: After completing the above Wi-Fi configuration and related settings, the WS3800 screen will display a stable Wi-Fi signal tower, auto time zone, and DST (when necessary). -
Page 15: Replacing Wi-Fi Router
6. Once successful, you may return to the main interface to check the data. 7. If you know exactly the sensor ID, and want the WS3800 to pair that sensor only, you may enter the sensor ID, and save the change to make... -
Page 16: Upload Data To Server
C. weathercloud.net D. wow.metoffice.gov.uk E. Customized servers Upload servers management: (1) Ensure that the mobile phone and WS3800 receiver are using the same Wi-Fi. (2) Ecowitt App → "..." at the top right corner → "Others" → "DIY Upload Servers". -
Page 17: Instructions For Use
Figure 17: Upload data to server 3. Instructions for Use 3.1 Multiple Views and Size Figure 18: Main view... - Page 18 Figure 19: Right view Figure 20: Top view...
-
Page 19: Features
Figure 21: Rear view (Refer to Section 3.5 for Button functions) 3.2 Features 7.5" LCD display 8 physical buttons Support DC powered and 3 x AA alkaline or lithium batteries powered (3 fresh AA batteries (not included) can only run for 24H. - Page 20 Support uploading data to the weather station server after connecting to the Wi-Fi network: ■ ecowitt.net (Default upload to this server) ■ wunderground.com ■ weathercloud.net ■ wow.metoffice.gov.uk ■ Customized servers Support optional sensors, please refer to Section 4...
-
Page 21: Icon Explanation
3.3 Icon Explanation See Figure 22 to help you identify icons of the console's display screen. Figure 22 Description Description Multi-channel temperature Auto-Scroll and humidity sensors Outdoor humidity Outdoor temperature Feels like/Apparent Dew point temperature RF signal bar and low battery power indicator for WS69 Pressure trend function outdoor sensor array or... -
Page 22: Date & Time
PM10/AQI Low battery power/no battery indicator for 27 Indoor temperature WS3800 Table 1: Icon explanation 3.3.1 Date & Time The date and time will be automatically updated when the Wi-Fi configuration is finished, and the automatic time zone is set. (refer to Section 2.2 for Wi-Fi configuration) -
Page 23: Co₂/Pm1.0/Pm2.5/Pm10/Aqi
+ button. Note: PM4.0, temperature, and humidity (measured by WH46) readings are only available in the Ecowitt App or web page, not on the display. Temperature and humidity measured by WH45 are also the same. Figure 24: CO₂/PM1.0/PM2.5/PM10/AQI 3.3.3 Weather Forecast... - Page 24 Sunny Partly Cloudy Cloudy Pressure increases for a Pressure increases slightly Pressure decreases sustained period of time or initial power up slightly Rainy Stormy Snowy Pressure decreases for a Pressure rapidly decreases Pressure decreases sustained period of time for a sustained period of time, and temperature ≤0℃...
-
Page 25: Pressure Trend Function
Situation 1: Device power up or hold TEMP Flash Situation 2: WS3800 is not connected to the router. WS3800 is connected to the router but has no internet access. The data hasn't been Slow flash successfully uploaded. The data has been uploaded to the server. -
Page 26: Indoor Temperature, Humidity, And Pressure
2. Wind values and units: When the wind speed unit is selected via buttons (refer to Section 3.6.2 to adjust the unit) or web page 192.168.4.1 (Unit Settings), the WS3800 will display the corresponding unit and value on the screen. Units set by the Ecowitt App or Ecowitt.net website will not be synchronized to the... -
Page 27: Rainfall
> WS69 Piezoelectric rainfall: WS90 2. Display rules The WS3800 can display either rainfall or piezoelectric rainfall, simply by selecting the rainfall rule you want to display via the "Rainfall data priority" on the App or web page. 3. Units Refer to 3.3.8 Wind units setting. -
Page 28: Moon Phase
3.3.11 Moon Phase The WS3800 will be set to the Southern or Northern Hemisphere by default depending on the RF frequency: 915/868MHz: Northern Hemisphere 433MHz: Southern Hemisphere The following moon phases are displayed based on the calendar date. Northern Hemisphere:... -
Page 29: Lcd Display Brightness
"Feels Like" on the LCD screen will be displayed as the value of "Apparent Temperature". 3.4 LCD Display Brightness The WS3800 has 5 levels of brightness, which are Max → High → Medium → Low → Off. A. When Battery Powered:... - Page 30 Figure 28: 8 Buttons There are 8 buttons on the top of the display console. The following tables briefly explain the function of these buttons. Buttons Functions Setting button Press to switch MAX/MIN/Alarm setting/MAC mode. Press to switch setting option in setting mode. Hold to enter setting mode.
-
Page 31: Product Modes
Brightness adjustment button Press to adjust backlight when powered by DC. Press LIGHT to snooze and press the other to exit while LIGHT alarming. Hold LIGHT to exit while snoozing. Hold & LIGHT for a factory reset. Table 5: Button functions 3.6 Product Modes There are 5 modes in total: Normal mode, Setting mode, Max/Min value mode, Alarm setting mode, and MAC address display. - Page 32 Figure 29: Switching display of rainfall and pressure ① Press RAIN to switch RAIN RATE/EVENT/DAILY/WEEKLY/ MONTHLY/YEARLY/TOTAL display. ② Press PRE to switch PRESSURE ABS/REL display. ③ If the current display is RAIN, press PRE to switch to PRESSURE ABS/REL display. On the other hand, press RAIN to switch to rain display.
-
Page 33: Setting Mode
adjust the backlight in 5 levels: Max → High → Medium → Low → Off. 12. Hold TEMP + - for more than 2s to open hotspot, Wi-Fi signal icon fast flash, you can connect to this hotspot on a mobile phone or PC. 13. -
Page 34: Alarm Setting Mode
Figure 31：Max/Min value mode 3.6.4 Alarm Setting Mode A. Alarm Function In Normal mode, press SET to enter Alarm setting mode. Sequence: Normal mode → Maximum value → Minimum value → Alarm setting. In the alarm setting mode, press SET to switch the alarm clock setting item: ①... -
Page 35: Mac Address Display
B. Snooze Function When the alarm clock is set and the alarm is triggered, press LIGHT to enter snooze mode, the snooze icon will be displayed near the alarm clock icon , and the alarm will sound again after 10 minutes. Hold any button for 2 seconds after entering snooze mode will exit snooze mode. -
Page 36: Historical Data Export And Clear
WS3800 doesn't support a memory card to store data, when the Wi-Fi configuration (refer to Section 2.2 for Wi-Fi Configuration) is completed, you can log in to Ecowitt.net to export the data in CSV file format. Figure 35: Export Historical Data from Ecowitt.net Note: Data with a query period of days/24 hours is retained for 3 months. -
Page 37: Clear History Data
Devices →"…" (Open the edit gateway page) → tap the firmware version number to upgrade if there is a new version available. When the upgrade is complete, the WS3800 will reboot into the latest version. Figure 37: Upgrade Firmware on the App... -
Page 38: Optional Sensors
Method 2: Via web page 192.168.4.1 If you choose "Automatically upgrade firmware" on the web page 192.168.4.1(refer to Section 2.2.4 to access the web page), WS3800 will enter OTA every time when there is a new firmware, and the screen will display the "OTA"... -
Page 39: Sensor Data Can Be Displayed On The Ws3800
(the frequency is different for various countries because of regulations). Note: Max QTY of the following table means the maximum number of different sensors that can be connected to the WS3800. 4.1.1 Sensor Data Can be Displayed on the WS3800 Sensor Model... - Page 40 Temperature and humidity WN30 Temperature WN36 Pool temperature Table 6: Optional sensors Note: 1. Some data of WS90/80/69/68/WH40/WN32 exist display priority, please refer to Section 3.3.7~3.3.9. 2. Some data of WH45/WH46 would not show on the WS3800. Please refer to Section 3.3.2.
-
Page 41: Sensor Data Can Only Be Uploaded To The Cloud
4.1.2 Sensor Data Can Only be Uploaded to the Cloud Sensor Model Max QTY Picture Functions WH57 Lightning detection WH41/WH43 PM2.5 WH55 Water leak detection WH51L Soil moisture WH51 Soil moisture WN34L/S/D Temperature WN35 Leaf wetness Table 7: Optional sensors... -
Page 42: Iot Device
AC1100 Smart plug Table 8: IoT device After the Wi-Fi configuration of WS3800 is finished (refer to Section 2.2), IoT products can be connected to the App in two methods. Take WFC01 for an example: 4.2.1 Method 1 to Add Sub-devices... -
Page 43: Method 2 To Add Sub-Device
Method 1 to connect IoT device Figure 39: 4.2.2 Method 2 to Add Sub-devices... - Page 44 Method 2 to connect IoT device Figure 40:...
-
Page 45: Calibration
1. Make sure your mobile device is connected to the same Wi-Fi network that WS3800 is connected to. 2. Click "…" on top right corner and choose "Calibration". 3. For a certain parameter (Take Outdoor temperature as an example in the Figure 41). -
Page 46: Others
5.1 Lightning Distance Unit WS3800 can connect one WH57 lightning sensor, and the lightning data can only be viewed through Ecowitt App, website, and web page, if you need to modify the lightning distance unit, you can modify it by modifying the wind speed unit on the App, website or web page. -
Page 47: Specifications
6. Specifications Model WS3800 Name Weather Station (receiver) Dimensions 8.2 x 5.6 x 1.1 inch Screen Size 6.6 x 3.7 inch Weight 368.9(g) Material of Plastic Casing Material of Screen HTN-LCD Temperature Metering Range -9.9°C to 60°C (14°F to 140°F) Temperature Metering Accuracy ±0.2°C (±0.4℉) -
Page 48: Warranty
Indoor Temperature -9.9 to 60℃ Outdoor Temperature -40 to 60°C Humidity 1% to 99% Wind Speed 0 to 180km/h Wind Direction 0 to 359 degrees Rainfall 0 to 9999mm 0 to 15 Solar 0 to 300Klux CO₂ 0 to 40000ppm PM1.0, PM2.5, PM10 0 to 999ug/m³... -
Page 49: Care And Maintenance
8. Care and Maintenance When batteries of different brand or type are used together, or new and old batteries are used together, some batteries may be over-discharged due to a difference of voltage or capacity. This can result in venting, leakage, and rupture and may cause personal injury. -
Page 50: Contact Us
9. Contact Us 9.1 After-sales Service Order Issues: If you encounter any missing or incorrect shipments of Ecowitt products purchased, please reach out to the respective platform's customer service from the store where you bought the product for assistance. Usage Inquiries: Our product is continuously changing and improving, particularly online services and associated applications.
