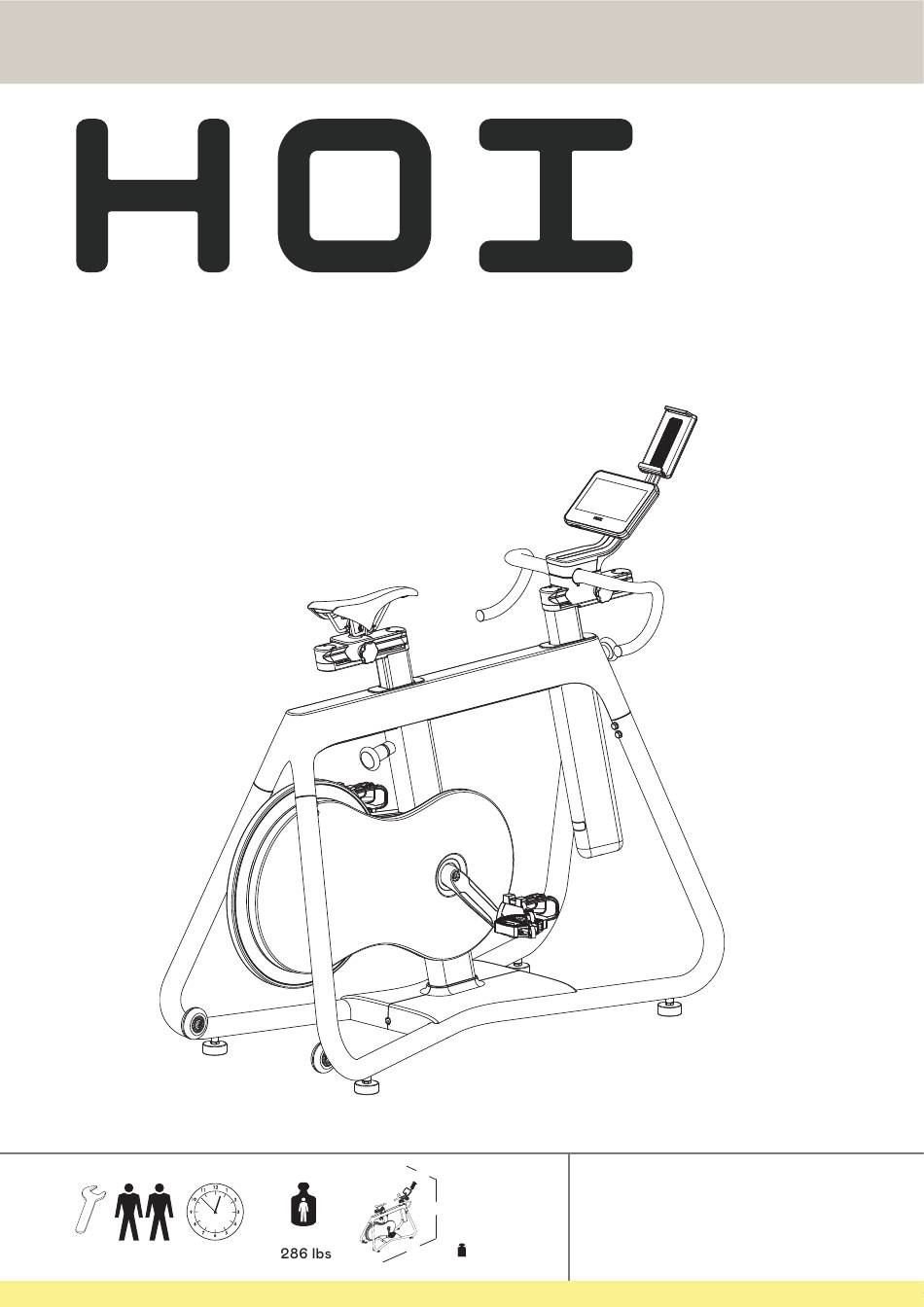

- Page 1 ASSEMBLY MANUAL HOI FRAME ARTICLE NO. BK1055-400US BK1055-700US A 145cm B 60cm C 150cm max. 65,5kg ~45 - 60 Min.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS information which is important for your safety as well as for the use and maintenance of the device. Keep these instructions in a safe place for reference purposes, maintenance work and to assist you when ordering spare parts. FOR YOUR SAFETY This device can be used by people 14 years of age and family doctor clarify whether your health is suitable for... -
Page 3: Handling The Equipment
ASSEMBLY INSTRUCTIONS DANGER! Ensure that your working area is free of possible exactly as instructed. sources of danger, for example don’t leave any tools lying Please note that there is always a possible risk of injury around. Always dispose packaging material in such a way with every use of tools and with manual activities. - Page 4 MEASURING HELP FOR SCREW CONNECTIONS Tools included. (1PC) 3mm (1PC) 4mm (1PC) 5mm (1PC) 13mm/15mm (1PC) 6mm (1PC) Tools not included. DISTANCE 1 metre The screwed connections must be con- trolled at regular intervals.
-
Page 5: Checklist (Contents Of Packaging)
CHECKLIST (CONTENTS OF PACKAGING) Stck. M8x20mm (12PCS) M8x25mm (4PCS) 8mm (12PCS) M5x12mm (3PCS) 16mmOD x 9mmID x 1.6mmT (12PCS) M5x8mm (2PCS) M5x10mm (4PCS) M5x8mm (4PCS) - Page 6 20 Nm Attention: Components are located in the styrofoam compartments. M8x20mm (12PCS) 8mm (12PCS) 16mmOD x 9mmID x 1.6mmT (12PCS) 13mm/15mm...
- Page 7 M5x10mm (4PCS)
- Page 8 WARNING! Note that the HOI FRAME bike is very heavy and care must be taken as the bike is rotated from upside down position to the upright position. It is highly recom- mended that two adults perform this operation. The bike and packaging must be supported together during this process.
-
Page 9: Left Pedal
LEFT PEDAL RIGHT PEDAL Tighten to 55 Nm Tighten to 55 Nm Mount pedals to the crank arms. Mount the pedals to the crank arms using an Allen key or an open-end spanner. The crank arms have thread (normal). The left pedal has a left-hand thread (opposing). 13mm/15mm... - Page 11 Mount the handlebars. Mount the handlebars in the handlebar slider base using a 6mm Hex wrench. Initially thread in the four bolts loosely and align the handlebar in the desired angular position. Gradually tighten the bolts alter- nating between the front and rear bolts and side to side so that the gap between the upper handlebar clamp and handlebar slider base has a consistent gap.
- Page 12 The rubber insert is pre-assembled. Please remove before screwing. Mount the console assembly. First use the four (4) M5x8mm Phillips Head Screws to secure the tablet holder onto the console as- sembly. Second lightly thread in the three (3) M5x12mm Socket Head Cap Screws from the rear of the console asembly mounting bracket to attach the console assembly to the handlebar upper mount.
- Page 13 HANDLING CAUTION! The training machine must be Stretch your leg out fully and place your heel positioned on a horizontal, stable surface. Place on the pedal where the crank arm is pointing suitable cushioning material underneath it for vertically downwards. The foot shell on the pedal shock absorption and to stop it from slipping should hang downwards when the seat is at this (rubber mats or similar).
- Page 14 H 3 VERTICAL HANDLEBAR SETTING shoes with the SPD-system (Shimano). The cleats CAUTION! When the handlebars are at its lowest allow the foot to turn sideways to take pressure setting, there is danger of crushing when loose- ning and tightening the handlebar position verti- the pedal lock as required.
- Page 15 HANDLING...
