Installation - Parts
Circulation Kit
Part No. 248652
For use with ProMix
circulate material from proportioner to fluid supply container
5000 psi (34.5 MPa, 345 bar) Maximum Fluid Working Pressure
Read warnings and instructions in the ProMix Easy
operation manual 309908 or the Xtreme Mix 185
operation manual 310665.
Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001
™
Easy and Xtreme Mix

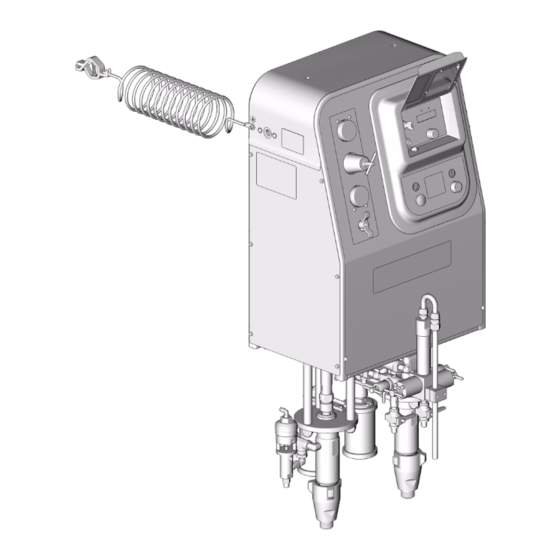

Circulation Kit shown installed on
ProMix Easy wall mount system
310673 Rev.A
™
185 Proportioners, to
TI5090a

Advertisement

loading

Related Manuals for Graco 248652

Summary of Contents for Graco 248652

  • Page 1 309908 or the Xtreme Mix 185 operation manual 310665. Circulation Kit shown installed on ProMix Easy wall mount system TI5090a Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441 Copyright 2004, Graco Inc. is registered to I.S. EN ISO 9001...

  • Page 2: Installation

    Installation Installation Before Installing Kit Install Dispense Valve Letters and numbers in parentheses refer to the Xtreme Mix 185 Proportioners callouts in the figures and the Parts list on page 7. Apply thread sealant to all non-swivel threaded connections. WARNING Some kit parts are not used on the Xtreme Mix 185.
  • Page 3 Installation ProMix Easy Proportioners 5. Screw 1/4 npt elbow (7) into bushing (5). Elbow should face forward. Apply thread sealant to all non-swivel threaded 6. Install swivel (4) in side port of dispense valve (1). connections. 7. Screw swivel (4) onto elbow (7). Adjust position of 1.
  • Page 4 Installation Install Solenoid Valve Two solenoids are standard with the proportioner. If a third solenoid is already installed, skip steps 5-7 1. Close main air shutoff valve on air supply line and and go to Connect Solenoid Lines. Do not install on proportioner.
  • Page 5 Installation Connect Solenoid Lines If two kits are being installed, use the Y-connectors (10) to supply air to the second dispense valve. 1. Remove plugs (M) from solenoid ports C1 and C2. The Y-connectors may be installed at the solenoid See F .

  • Page 6: Operation

    Operation Connect Return Line Operation To operate the proportioner in recirculation mode, see WARNING the proportioner operation manual. Use only high pressure return hoses rated to with- stand the maximum working pressure of the propor- tioner. See proportioner operation manual. 1.
  • Page 7 Parts Parts Ref. Ref. Part No. Description Qty. Part No. Description Qty. 15E274 TEE; 3/8 npt(f); sst 287222 VALVE, dispense; see 310655 114342 ELBOW; 1/4 npt(m); sst 552180 VALVE, solenoid; 12 Vdc 598095 TUBE, clear; nylon; 15E279 ELBOW; 3/8 npt(m); sst 5/32 in.

  • Page 8: Graco Standard Warranty

    Graco distributor. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
