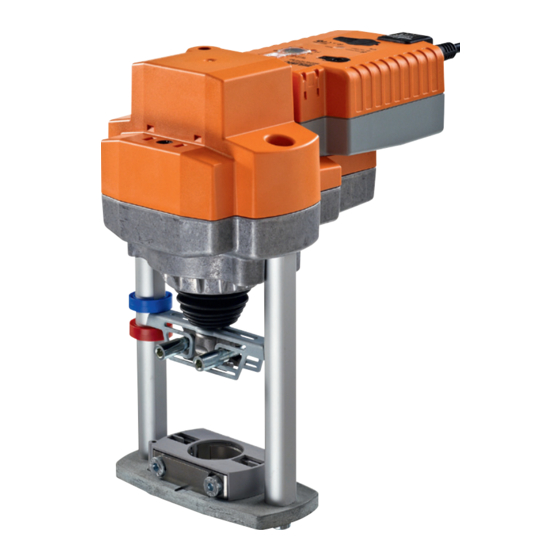

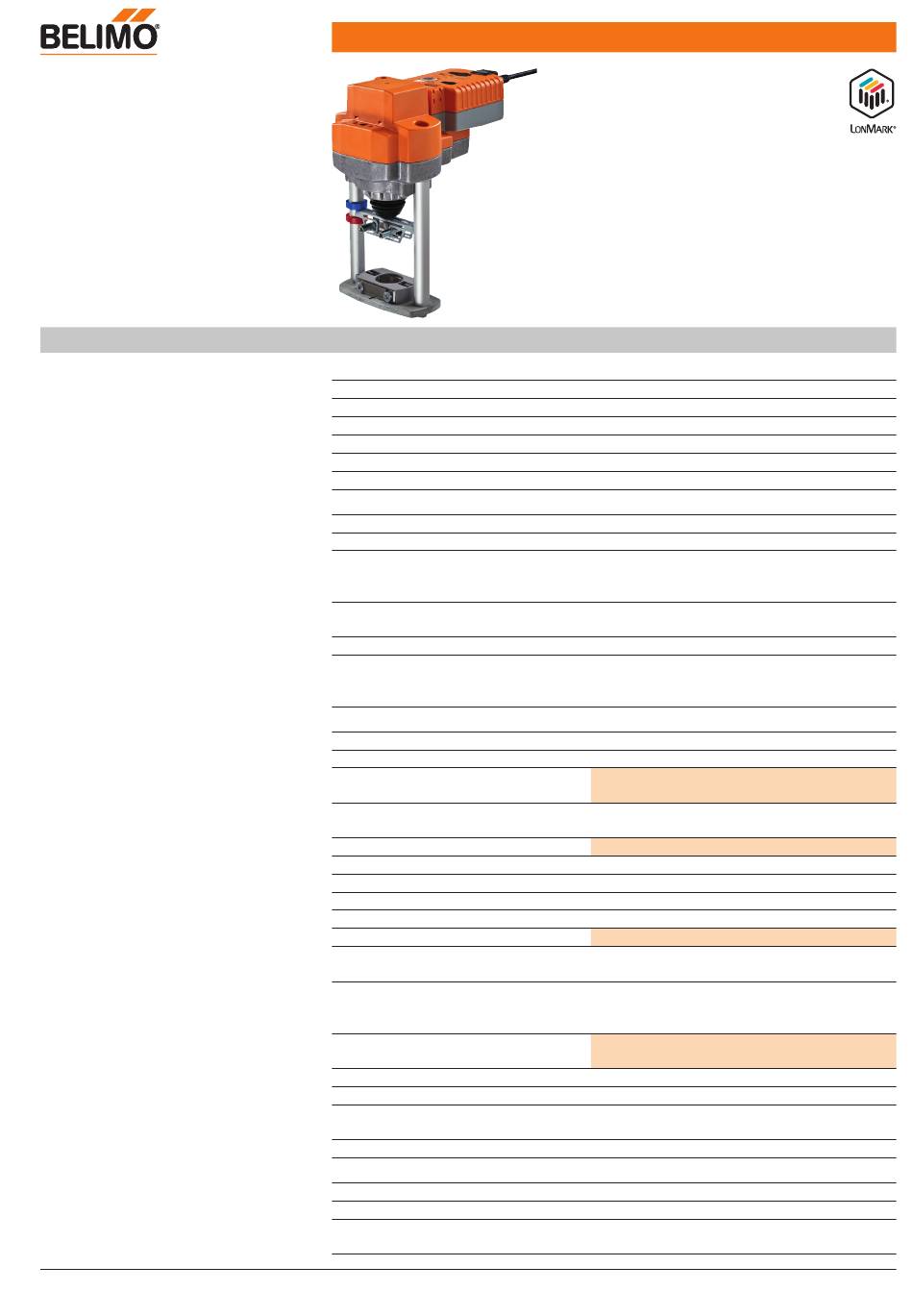

Belimo AVK**A Series Manual

Communication-capable globe valve
actuator with emergency control
function for 2-way and 3-way globe
valves
• Actuating force 2000 N
• Nominal voltage AC/DC 24 V
• Control modulating
• Nominal stroke 32 mm
• Communication via LONWORKS®
(FTT-10A)
• Conversion of sensor signals
• Integrated temperature controller
• Design life SuperCaps 15 years
Technical data
Data for LONWORKS®
Functional data
www.belimo.com
Technical data sheet
Electrical data Nominal voltage
Nominal voltage frequency
Nominal voltage range
Power consumption in operation
Power consumption at rest
Power consumption for wire sizing
Connection supply / control
Certified
Processor
Transceiver
Functional Profile as per LONMARK®
LNS plug-in for actuator / sensor /
controller
Service button and status LED
Conductors, cables
Actuating force
Position feedback U
Position feedback U note
Position feedback U variable
Setting emergency setting position
Bridging time (PF) variable
Position accuracy
Manual override
Nominal stroke
Actuating time
Variable actuating time
Actuating time emergency control
function
Override control, controllable via
nviManOvrd
Override control, controllable via
nviManOvrd, modifiable
Sound power level motor max.
Sound power level motor note
Sound power level emergency setting
position max.
Position indication
Safety Protection class IEC/EN
Degree of protection IEC/EN
EMC
Certification IEC/EN
AVK24ALON • en-gb • 2013-04-03 • Subject to modification
AC/DC 24 V
50/60 Hz
AC 19.2...28.8 V / DC 21.6...28.8 V
5 W
2 W
9.5 VA
Cable 1 m, 6 x 0.75 mm²
According to LONMARK® 3.3
Neuron 3150
FTT-10A, compatible with LPT-10
Damper actuator object #8110
Open Loop Sensor Object #1
Thermostat Object #8060
Can be run with any LNS-based integration tool
(min. for LNS 3.x)
According to LONMARK® guidelines
Signal cable lengths, cable specifications and
topology of the LONWORKS® network in
accordance with the ECHELON® guidelines
2000 N
DC 2...10 V
Max. 0.5 mA
Start point DC 0.5 ... 8V
End point DC 2.5 ... 10V
Actuator spindle 0...100%, adjustable (POP
rotary knob)
1...10 s
5% absolute
Gear disengagement with push-button
32 mm
150 s / 32 mm
35...150 s / 32 mm
35 s / 32 mm
MAX (maximum position) = 100%
MIN (minimum position) = 0%
ZS (intermediate position) = 50%
ZS = MIN...MAX
60 dB(A)
55 dB (A) @ 90 s running time
60 dB(A)
Mechanical 5 ... 32 mm stroke
III Safety extra-low voltage
IP54
CE according to 2004/108/EC
Certified to: IEC/EN 60730-1 and
IEC/EN 60730-2-14
AVK24ALON
