Belimo AMB24-SR-X1 Manual

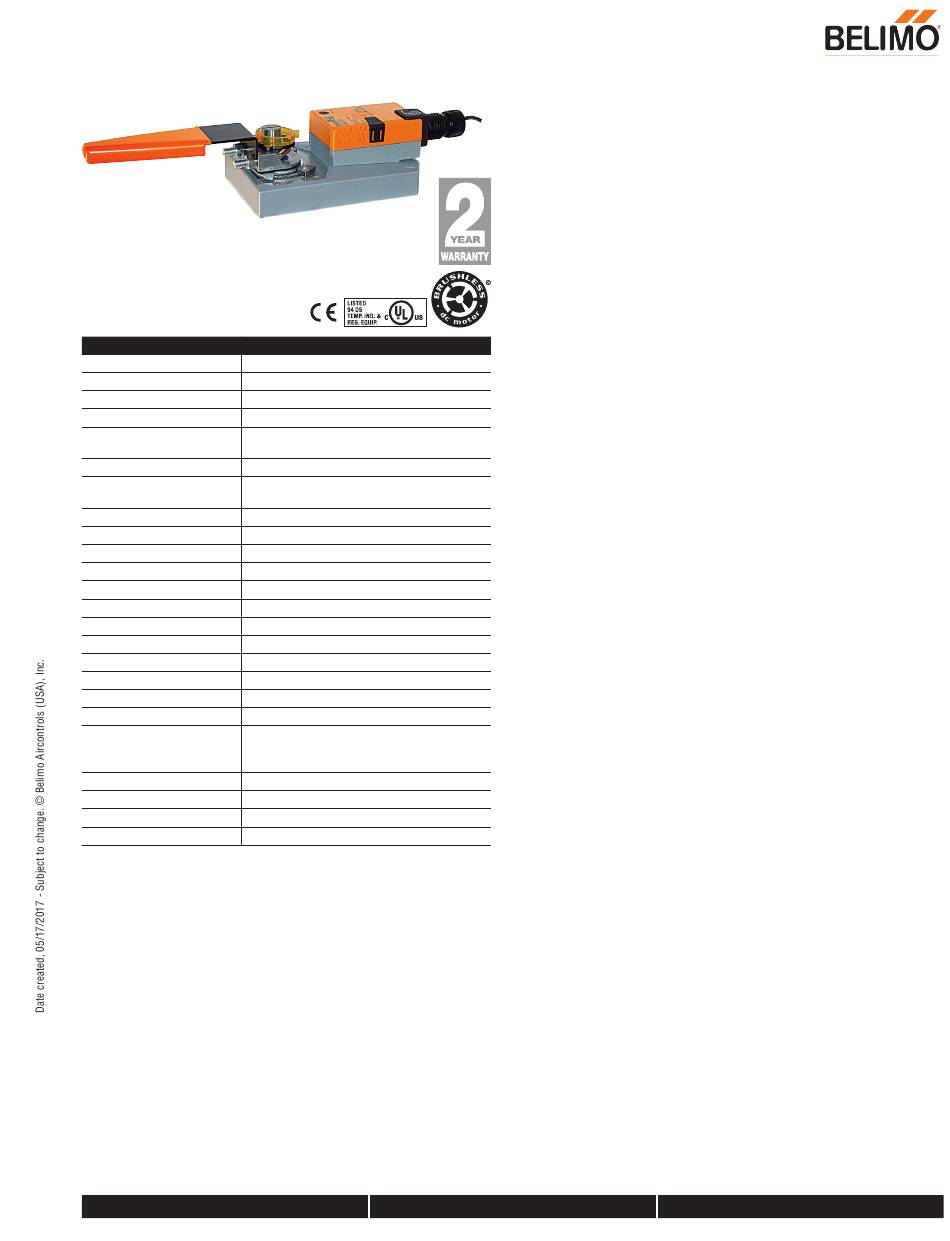

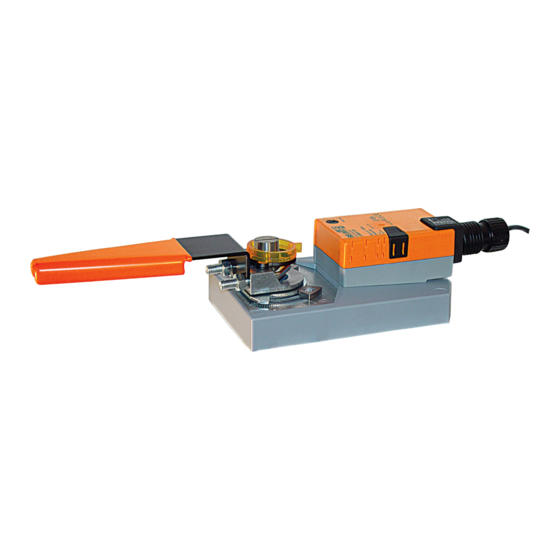

AMB24-SR-X1
Modulating, Non-Spring Return, 24 V, for 2 to 10 VDC or 4 to 20 mA
Technical Data
Power Supply 24 VAC ± 20%, 50/60 Hz, 24 VDC ± 10%
Power Consumption Running 2.5
Power Consumption Holding 0.4 W
Transformer Sizing 5 VA (class 2 power source)
Electrical Connection 3ft [1m], 18 GA appliance cable with 1/2"
conduit connector
Overload Protection electronic throughout 0° to 95° rotation
Operating Range Y 2 to 10 VDC, 4 to 20 mA w/ ZG-R01 (500 Ω,
1/4 W resistor)
Input Impedance 600 Ω
Feedback Output U 2 to 10 VDC
Angle of Rotation Max. 95°, adjustable with mechanical stop
Torque 180 in-lbs [20 Nm] minimum
Direction of Rotation (Motor) reversible with built-in switch
Position Indication reflective visual indicator (snap on)
Manual Override external push button
Running Time (Motor) 95 sec constant, independent of load
Ambient Humidity 5 to 95% RH non condensing (EN 60730-1)
Ambient Temperature Range -22°F to 122°F [-30°C to 50°C]
Storage Temperature Range -40°F to 176°F [-40°C to 80°C]
Housing NEMA 2, IP54
Agency Listings† cULus acc. to UL60730-1A/-2-14, CAN/CSA
E60730-1:02, CE acc. to 2004/108/EC and
2006/95/EC
Noise Level (Motor) <45 dB (A)
Servicing maintenance free
Quality Standard ISO 9001
Weight 2 lb [0.9 kg]
†Rated Impulse Voltage 800V, Type action 1, Control Pollution Degree 3.
