INTRODUCTION:
This is a combination vehicle security alarm and tach-less remote start system for 12-volt motor vehicles. There
are a variety of built-in features, which you may or may not use. Some require the addition of a relay, diode or
other component to function properly, which is not included in the kit. Additional labor and parts will be required
for some vehicle with Anti-Theft Systems such as GM PassKey/Passlock/VATS, or Key-FOB based RF
Transponder systems. This system is designed for single vehicle operation with automatic transmissions only.
Technical support is available from the following sources:
TECHNICAL SUPPORT (800)-998-6880
Monday - Friday 8:00am - 4:30pm Pacific Time
Fax-On-Demand 805-526-9540
Web Site: www.crimestopper.com
E-mail: tech-support@crimestopper.com
CRIMESTOPPER SECURITY PRODUCTS, INC.
1770 S. TAPO STREET, SIMI VALLEY, CA. 93063
CS-9704RS
INTEGRATED ALARM/REMOTE START SYSTEM
INSTALLATION / OPERATING MANUAL
This device complies with FCC Rules part 15. Operation is
subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) This device must
accept any interference that may be received, including
interference that may cause undesired operation. The
manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this
equipment. Such modification could void the user's authority
to use the e quipment.
Advertisement
Related Manuals for CrimeStopper CS-9704
Summary of Contents for CrimeStopper CS-9704
- Page 1 TECHNICAL SUPPORT (800)-998-6880 Monday - Friday 8:00am - 4:30pm Pacific Time Fax-On-Demand 805-526-9540 Web Site: www.crimestopper.com E-mail: tech-support@crimestopper.com CRIMESTOPPER SECURITY PRODUCTS, INC. 1770 S. TAPO STREET, SIMI VALLEY, CA. 93063 CS-9704RS INTEGRATED ALARM/REMOTE START SYSTEM INSTALLATION / OPERATING MANUAL This device complies with FCC Rules part 15. Operation is...
- Page 2 1. BEFORE BEGINNING, check all vehicle manufacturer cautions and warnings regarding electrical service (AIR BAGS, ABS BRAKES, AND BATTERY). 2. TO PREVENT A POSSIBLE DEAD BATTERY remove vehicle dome light fuse while working on the vehicle. MAKE CERTAIN TO REINSTALL FUSE PRIOR TO TESTING FOR DOOR TRIGGERS. 3.
- Page 3 6 PIN HI-CURRENT CONNECTORS (See Wire diagram at back of manual for Details) RED: +12V INPUT RED: +12V INPUT (30 Amp) BROWN: IGNITION 1 (Secondary Ign. Output) YELLOW: IGNITION 1 (Primary Ign. Output AND Input) ORANGE: ACCESSORY (20 Amp) PURPLE: STARTER OUTPUT 10 PIN MAIN HARNESS PLUG WHITE WIRE: PIN 1: PARKING LIGHT CIRCUIT...
- Page 4 WIRING GRAY WIRE: PIN 6: Engine Monitor (used for tach mode only) Used to monitor when the engine is running. Connect to negative terminal of ignition coil, crankshaft position sensor or ECM/PCM tach wire. An alternate method is to wrap several turns around a spark plug wire and fasten with wire ties or hi-temp plastic clamps.
-
Page 5: Operation

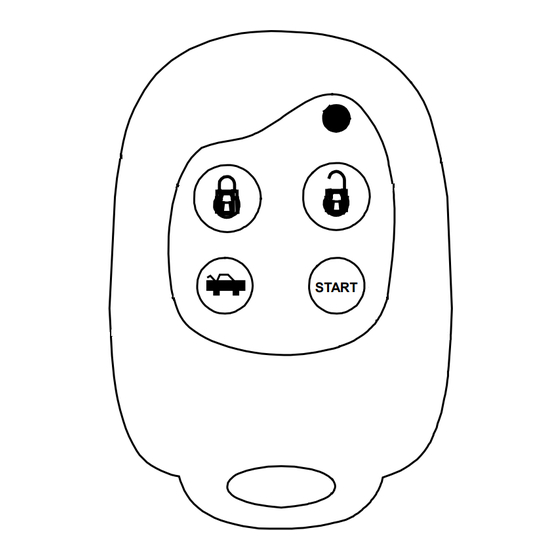

2 PIN PLUG (WHITE) RED-BLACK WIRE: PIN 1: DOME LIGHT ILLUMINATION (-) ( Connect to terminal 85 of relay. This wire turns the dome light on for 30 seconds upon disarming of the alarm. If the ignition is turned on or the alarm is re-armed, the dome light will turn off again. WHITE-YELLOW: PIN 2: HORN HONK OUTPUT (-) This wire provides a pulsed 150mA negative output for honking the vehicle's horn when the alarm is triggered. - Page 6 This system performs the following tasks by pressing one of the buttons on the hand-held transmitter: • ARM / LOCK • DISARM / UNLOCK • TRUNK POP • REMOTE START • PANIC Note: You may not have all of the available features depending on your particular installation. Some features require additional parts and/or labor.
-
Page 7: Additional Features
REMOTE ENGINE START: Press and hold the Remote Start button on the transmitter until you hear 3 siren chirps (release button) then the parking lights will turn on. The vehicle will start and run for 15 minutes unless you press the Remote Start transmitter button again or press the foot brake in the vehicle. - Page 8 ACTIVE RE-ARMING: Active Re-arming means that the system will re-arm itself 30 seconds after disarmed with the transmitter if a door has not been opened. This is handy if the vehicle is accidentally disarmed without you knowing it. This feature can also be turned off with the programming options.
- Page 9 To eliminate siren chirps, turn the ignition on and press the transmitter’s remote start button for about 3 seconds. You will hear a short double chirp. After the ignition is turned off, there will be no siren chirps for arm, disarm and remote start engage/reset confirmation.
-
Page 10: Troubleshooting
This feature controls the length of time the starter stays engaged. If the default (0.8 seconds) is not long enough to start the engine, change the setting to1.25 seconds. GAS / DIESEL: Set this switch to select the proper vehicle fuel type. Selecting Diesel delays starter activation about 10 seconds to allow warming of glow plugs. - Page 11 UNIT SHUTS DOWN 4-5 SECONDS AFTER REMOTE STARTING: The unit does not sense the engine in Tachless mode. Turn dip switch #4 OFF and wrap the gray wire around a plug/coil wire. The module will sense inducted RF/Engine noise in the gray wire allow the engine to stay running longer than 4-5 seconds.
- Page 12 30AMP FUSE 20AMP BATTERY FUSE SECONDARY 10AMP IGNITION 1 FUSE (If Needed) IGNITION 1 (Primary) ACC/IGN 2 (Heat/Air) IGNITION SWITCH STARTER YELLOW +BRAKE SWITCH VIOLET (+) DOOR SWITCH BLUE (-) HOOD /TRUNK SWITCH GREEN (-) DOOR SWITCH GRAY ENGINE MONITOR ORANGE (-) ARMED OUTPUT STARTER DISABLE / ANTI-GRIND...
