Sunny SG-R Series User Manual

USER MANUAL

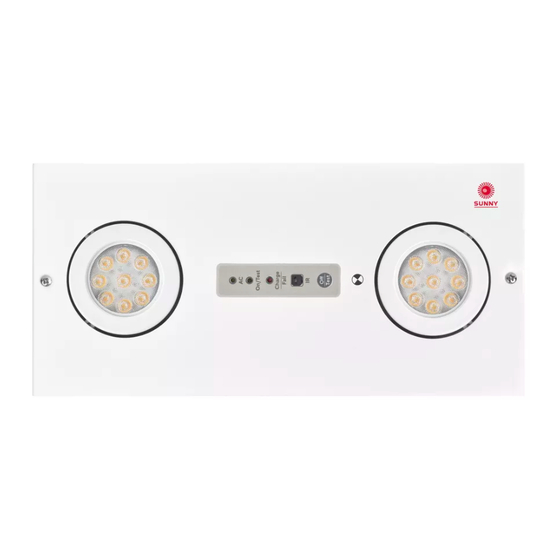

Self-Contained Emergency Light SG-R Series
Installation and Operation
1. The unit can be installed on recessing ceiling.
2. Install properly and securely to prevent accidents that could cause damage to the unit or
other people and property.
3. Connect the unit into a main power with a 220-240VAC power supply. The emergency lamp will
remain on for about 2 seconds before turning off, Notice the LED will show the status as follows.
3.1 The LED "AC" will turn on indicating that the unit is receiving power.
3.2 LED "On/Test" lit or flashing slowly indicates the status of the unit ready to use.
3.3 The LED "Charge/Fail" will be on when the battery is charging.
3.4 The LED "Charge/Fail" will be off when the battery is fully charged.
4. When the unit is operational, tests can be performed.
4.1 Pressing the "Off/Test" switch the emergency lamp will remain on for about 5 seconds before
turning off.
4.2 Disconnect the unit from the 230VAC and the emergency light should turn on automatically
and connect the unit back in should cause the emergency lamp will remain on for about 5 seconds.
5. During power outages the emergency light should automatically turn on and will turn off
automatically and start charging the battery once power is restored.
Caution: Please always read the manual prior to installation and operation.
LED AC
AC
LED On/Test
On/Test
LED Charge/Fail
Charge
Fail
IR
IR
Switch Off/Test
Off
Test
Indicates that the unit is receiving a power supply
Indicates that the unit is receiving a power /
Indicates that the unit is set to perform automatic self-tests /
Indicates if the unit is performing a self-test
Indicates that the unit's battery is charging
or is a problem with the battery
Infrared signal receiver
Press to turn off the lamp and the system of the unit
(while the power is off or the unit is not plugged in)
Press to test the device's availability
(during normal circumstance and the unit is plugged in)
Status Indicators and Testing Buttons
