Sunny SGM Series User Manual

USER MANUAL
Self-Contained Emergency Light SGM Series
Installation and Operation
1. The unit can be installed on leveled ground or hung up.
2. Install properly and securely to prevent accidents that could cause damage to the unit or
other people and property.
3. Plug the unit into a power socket with a 230VAC power supply. The emergency lamp will remain
on for about 2 seconds before turning o , Notice the LED will show the status as follows.
3.1 The LED "AC" will turn on indicating that the unit is receiving power.
3.2 LED "On/Test" lit or flashing slowly indicates the status of the unit ready to use.
3.3 The LED "Charge/Fail" will be on when the battery is charging.
3.4 The LED "Charge/Fail" will be o when the battery is fully charged.
4. When the unit is operational, tests can be performed.
4.1 Pressing the "O /Test" switch the emergency lamp will remain on for about 5 seconds before
turning o .
4.2 Unplug the unit from the 230VAC socket and the emergency light should turn on automatically
and plugging the unit back in should cause the emergency lamp will remain on for about 5 seconds.
5. During normal power conditions, if the surrounding area is dimmer than 5 Lux and the unit
detects a person walking by, it will automatically provide illumination using mains power.
Test
Test
Model: SGM209CD3
LED AC
Indicates that the unit is receiving a power supply
LED On/Test
Indicates that the unit is receiving a power /
Indicates if the unit is performing a self-test
LED Charge/Fail
Indicates that the unit's battery is charging
or is a problem with the battery
LDR
Light datector sensor
Switch O /Test
Press to turn o the lamp and the system of the unit
(while the power is o or the unit is not plugged in)
Press to test the device's availability
(during normal circumstance and the unit is plugged in)

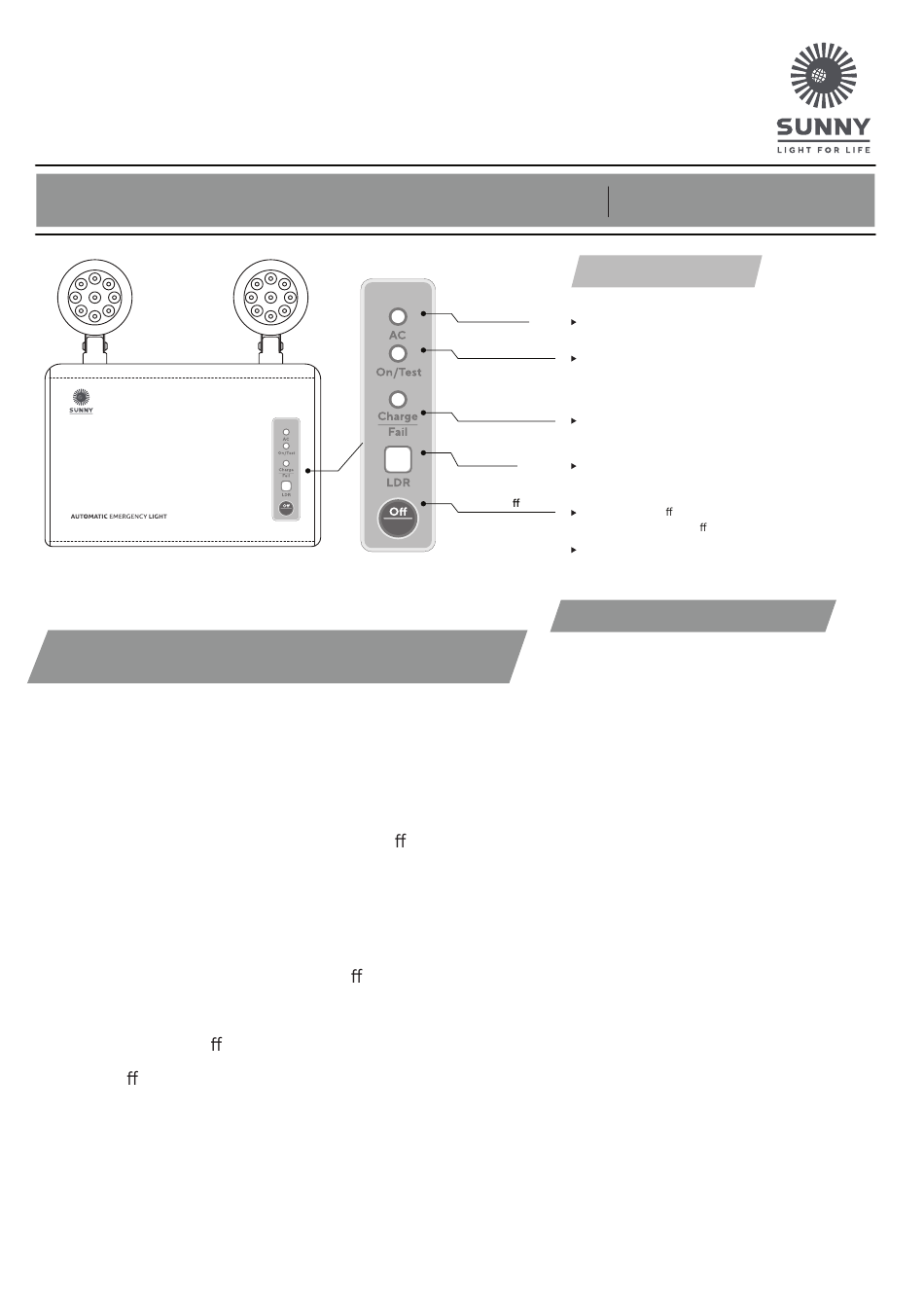

Status Indicators and Testing Buttons
