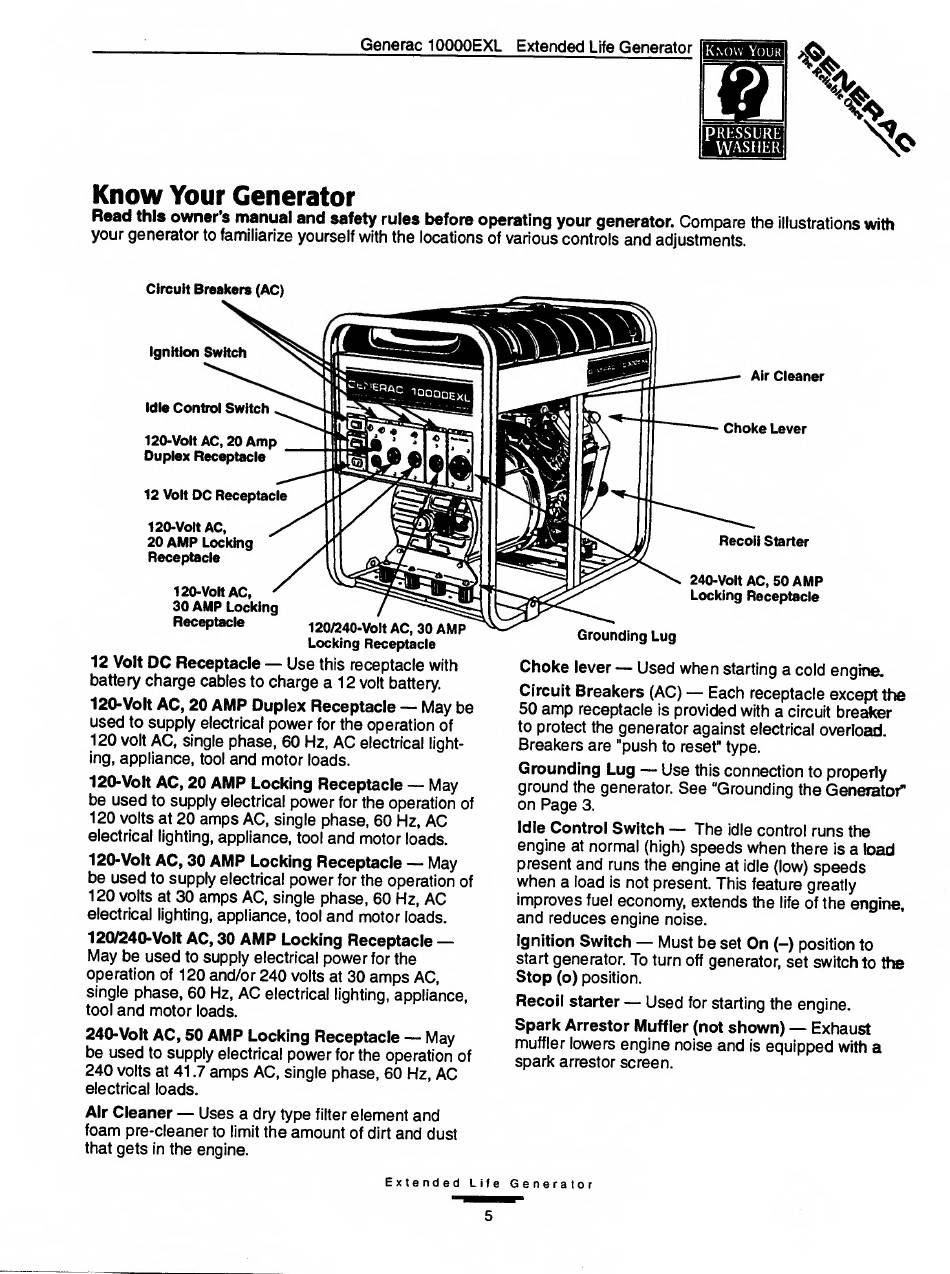

Know Your Generator
Read this owner's manual and safety rules before operating your generator. Compare the illustrations with
your generator to familiarize yourself with the locations of various controls and adjustments.
Circuit Breakers (AC)
Ignition Switch
Idle Control Switch .
120-Volt AC, 20 Amp
Duplex Receptacle
12 Volt DC Receptacle
120-Volt AC,
20 AMP Locking
Receptacle
120-Volt AC,
30 AMP Locking
Receptacle
Recoil Starter
240-Volt AC, 50 AMP
Locking Receptacle
120/240-Volt AC, 30 AMP
Locking Receptacle
Grounding Lug
12 Volt DC Receptacle — Use this receptacle with
battery charge cables to charge a 12 volt battery.
120-Volt AC, 20 AMP Duplex Receptacle — May be
used to supply electrical power for the operation of
120 volt AC, single phase, 60 Hz, AC electrical light¬
ing, appliance, tool and motor loads.
120-Volt AC, 20 AMP Locking Receptacle — May
be used to supply electrical power for the operation of
120 volts at 20 amps AC, single phase, 60 Hz, AC
electrical lighting, appliance, tool and motor loads.
120-Volt AC, 30 AMP Locking Receptacle — May
be used to supply electrical power for the operation of
120 volts at 30 amps AC, single phase, 60 Hz, AC
electrical lighting, appliance, tool and motor loads.
120/240-Volt AC, 30 AMP Locking Receptacle —
May be used to supply electrical power for the
operation of 120 and/or 240 volts at 30 amps AC,
single phase, 60 Hz, AC electrical lighting, appliance,
tool and motor loads.
240-Volt AC, 50 AMP Locking Receptacle — May
be used to supply electrical power for the operation of
240 volts at 41.7 amps AC, single phase, 60 Hz, AC
electrical loads.
Choke lever — Used when starting a cold engine.
Circuit Breakers (AC) — Each receptacle except the
50 amp receptacle is provided with a circuit breaker
to protect the generator against electrical overload.
Breakers are "push to reset" type.
Grounding Lug — Use this connection to properly
ground the generator. See "Grounding the Generator"
on Page 3.
Idle Control Switch — The idle control runs the
engine at normal (high) speeds when there is a load
present and runs the engine at idle (low) speeds
when a load is not present. This feature greatly
improves fuel economy, extends the life of the engine,
and reduces engine noise.
Ignition Switch — Must be set On (—) position to
start generator. To turn off generator, set switch to the
Stop (o) position.
Recoil starter — Used for starting the engine.
Spark Arrestor Muffler (not shown) — Exhaust
muffler lowers engine noise and is equipped with a
spark arrestor screen.
Air Cleaner — Uses a dry type filter element and
foam pre-cleaner to limit the amount of dirt and dust
that gets in the engine.
