Generac 10000EXL Extended Lite Generator

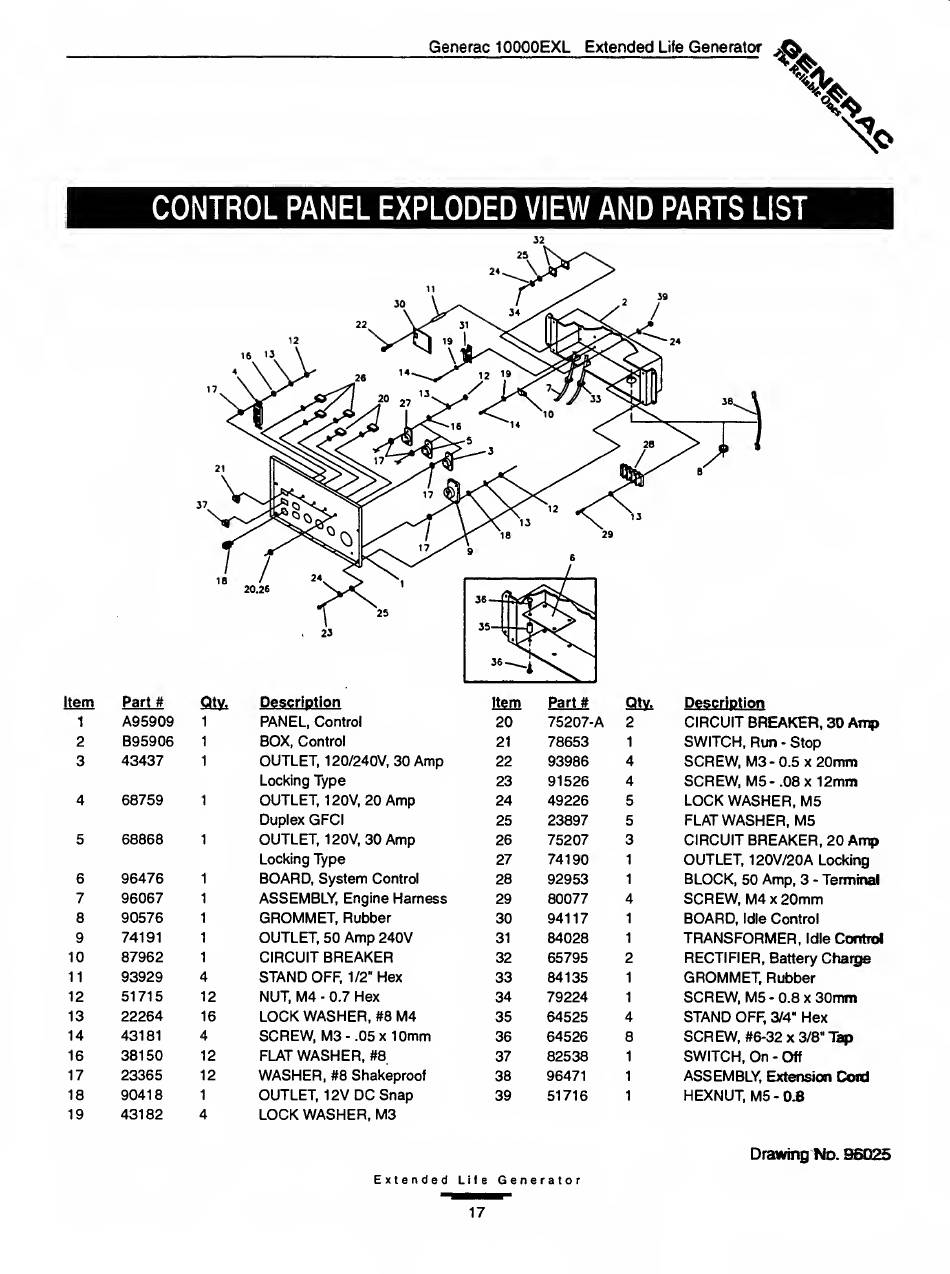

CONTROL PANEL EXPLODED VIEW AND PARTS LIST
item
Part#
Qty.
Description
Item
Part#
Qtv.
Description
i
A95909
1
PANEL, Control
20
75207-A
2
CIRCUIT BREAKER, 30 Amp
2
B95906
1
BOX, Control
21
78653
1
SWITCH, Run - Stop
3
43437
1
OUTLET, 120/240V, 30 Amp
22
93986
4
SCREW, M3 - 0.5 x 20mm
Locking Type
23
91526
4
SCREW, M5 - .08 x 12mm
4
68759
1
OUTLET 120V, 20 Amp
24
49226
5
LOCK WASHER, M5
Duplex GFCI
25
23897
5
FLAT WASHER, M5
5
68868
1
OUTLET 120V, 30 Amp
26
75207
3
CIRCUIT BREAKER, 20 Amp
Locking Type
27
74190
1
OUTLET, 120V/20A Locking
6
96476
1
BOARD, System Control
28
92953
1
BLOCK, 50 Amp, 3 - Terminal
7
96067
1
ASSEMBLY, Engine Harness
29
80077
4
SCREW, M4 x 20mm
8
90576
1
GROMMET, Rubber
30
94117
1
BOARD, Idle Control
9
74191
1
OUTLET 50 Amp 240V
31
84028
1
TRANSFORMER, Idle Control
10
87962
1
CIRCUIT BREAKER
32
65795
2
RECTIFIER, Battery Charge
11
93929
4
STAND OFF, 1/2" Hex
33
84135
1
GROMMET Rubber
12
51715
12
NUT, M4 - 0.7 Hex
34
79224
1
SCREW, M5-0.8 x 30mm
13
22264
16
LOCK WASHER, #8 M4
35
64525
4
STAND OFF, 3/4" Hex
14
43181
4
SCREW, M3 - .05 x 10mm
36
64526
8
SCREW, #6-32 x 3/8" Tap
16
38150
12
FLAT WASHER, #8
37
82538
1
SWITCH, On -
Off
17
23365
12
WASHER, #8 Shakeproof
38
96471
1
ASSEMBLY,
Extension Cord
18
90418
1
OUTLET, 12V DC Snap
39
51716
1
HEXNUT, M5-0.8
19
43182
4
LOCK WASHER, M3
Drawing No. 96025
Extended
Life
Generator
