Generac 10000EXL Extended Life Generator

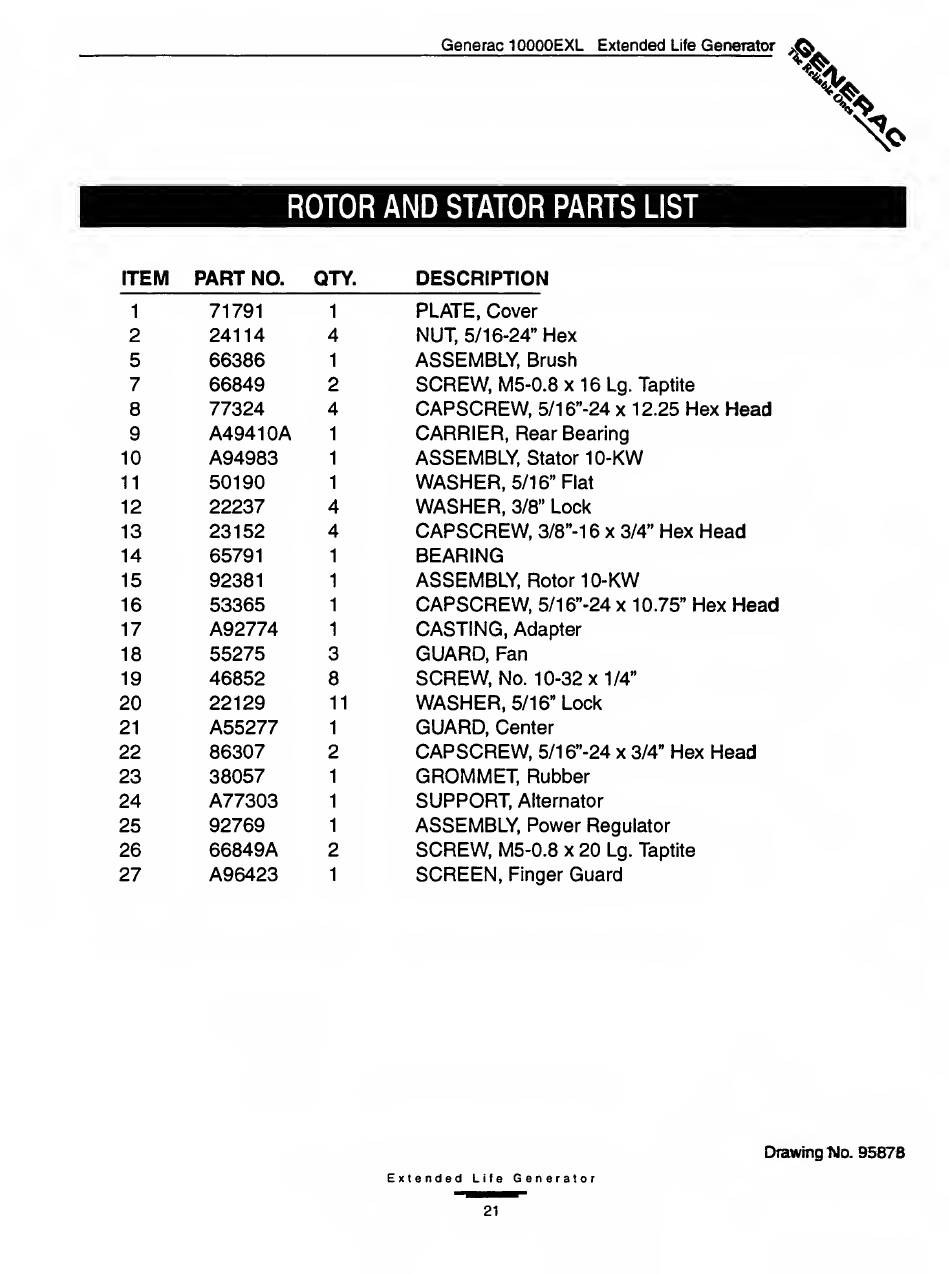

ROTOR AND STATOR PARTS LIST
ITEM
PART NO.
QTY.
DESCRIPTION
1
71791
1
PLATE, Cover
2
24114
4
NUT, 5/16-24" Hex
5
66386
1
ASSEMBLY, Brush
7
66849
2
SCREW, M5-0.8 x 16 Lg. Taptite
8
77324
4
CAPSCREW, 5/16"-24 x 12.25 Hex Head
9
A49410A
1
CARRIER, Rear Bearing
10
A94983
1
ASSEMBLY Stator 10-KW
11
50190
1
WASHER, 5/16" Flat
12
22237
4
WASHER, 3/8" Lock
13
23152
4
CAPSCREW, 3/8"-16 x 3/4" Hex Head
14
65791
1
BEARING
15
92381
1
ASSEMBLY Rotor 10-KW
16
53365
1
CAPSCREW, 5/16"-24 x 10.75" Hex Head
17
A92774
1
CASTING, Adapter
18
55275
3
GUARD, Fan
19
46852
8
SCREW, No. 10-32 x 1/4"
20
22129
11
WASHER, 5/16" Lock
21
A55277
1
GUARD, Center
22
86307
2
CAPSCREW, 5/16"-24 x 3/4" Hex Head
23
38057
1
GROMMET, Rubber
24
A77303
1
SUPPORT Alternator
25
92769
1
ASSEMBLY, Power Regulator
26
66849A
2
SCREW, M5-0.8 x 20 Lg. Taptite
27
A96423
1
SCREEN, Finger Guard
Drawing Mo. 95878
