Generac 10000EXL Extended Life Generator

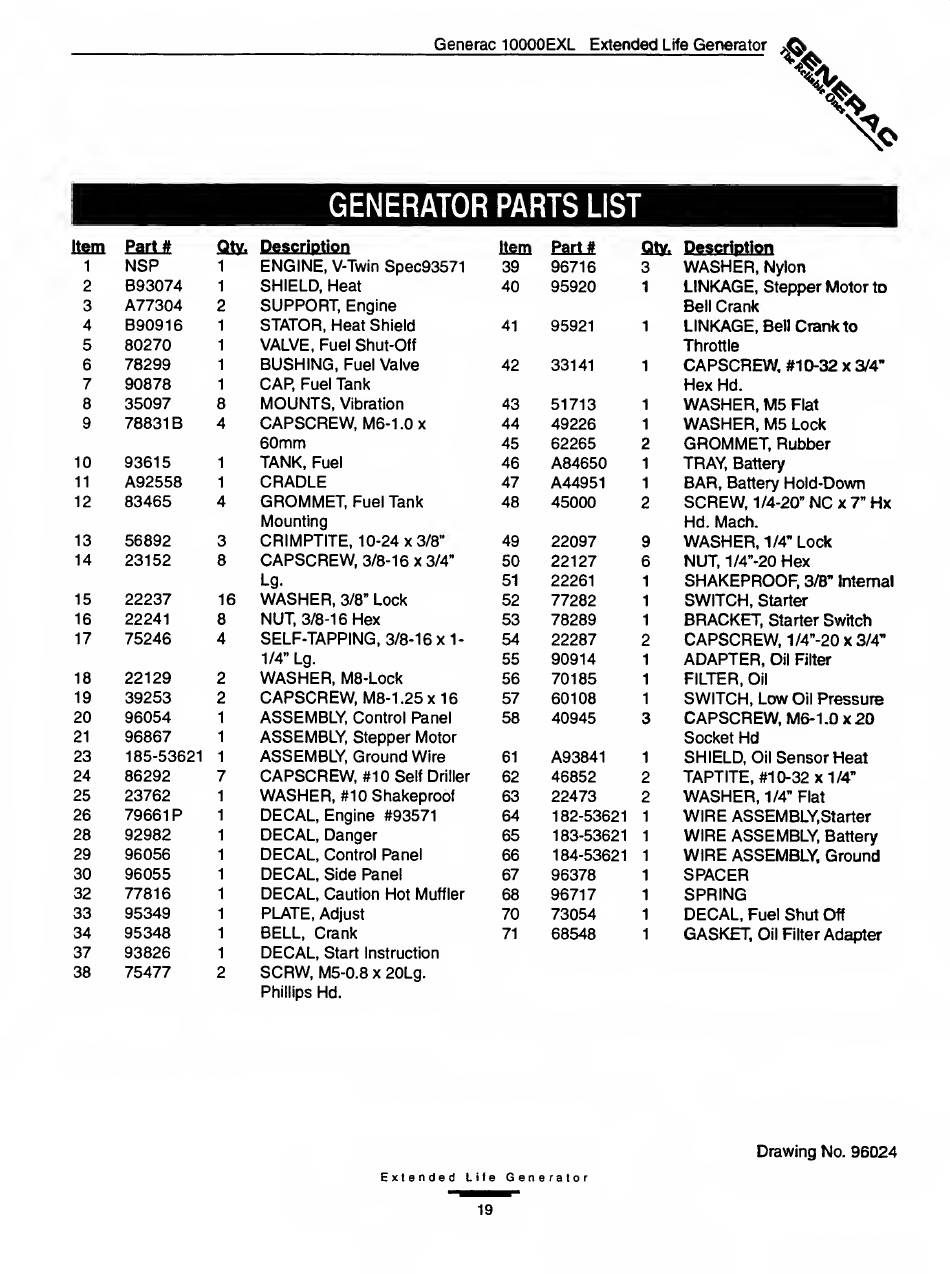

GENERATOR PARTS LIST
Item
Part#
Qtv. Description
Item Part# Qiy. Description
1 NSP 1 ENGINE, V-Twin Spec93571
39 96716 3 WASHER, Nylon
2 B93074 1 SHIELD, Heat
40 95920 1
LINKAGE, Stepper Motor to
3 A77304 2 SUPPORT, Engine
Bell Crank
4 B90916 1 STATOR, Heat Shield 41 95921 1
LINKAGE, Bell Crank to
5 80270
1
VALVE, Fuel Shut-Off
Throttle
6 78299 1
BUSHING, Fuel Valve 42 33141 1
CAPSCREW, #10-32 x 3/4"
7 90878 1 CAP, Fuel Tank
Hex Hd.
8 35097 8
MOUNTS, Vibration 43 51713 1 WASHER, M5 Flat
9 78831B 4 CAPSCREW, M6-1.Ox 44
49226 1 WASHER, M5 Lock
60mm
45 62265 2
GROMMET Rubber
10 93615 1 TANK, Fuel
46 A84650 1 TRAY, Battery
11 A92558 1 CRADLE 47 A44951 1
BAR, Battery Hold-Down
12 83465 4 GROMMET, Fuel Tank
48 45000 2 SCREW, 1/4-20" NC x 7" Hx
Mounting Hd. Mach.
13 56892
3 CRIMPTITE, 10-24x3/8" 49 22097 9 WASHER, 1/4" Lock
14
23152 8 CAPSCREW, 3/8-16
X
3/4"
50 22127 6 NUT, 1/4"-20 Hex
Lg-
51 22261 1
SHAKEPROOF, 3/8" Internal
15 22237 16 WASHER, 3/8" Lock
52 77282 1 SWITCH, Starter
16
22241
8 NUT, 3/8-16 Hex
53
78289
1 BRACKET, Starter Switch
17
75246 4
SELF-TAPPING, 3/8-16x1- 54 22287 2 CAPSCREW. 1/4"-20 x 3/4"
1/4" Lg.
55 90914
1 ADAPTER, Oil Filter
18 22129 2 WASHER, M8-Lock
56 70185 1 FILTER, Oil
19 39253 2
CAPSCREW, M8-1.25x16
57 60108
1 SWITCH, Low Oil Pressure
20 96054
1 ASSEMBLY, Control Panel 58
40945 3 CAPSCREW, M6-1.0 x 20
21 96867 1 ASSEMBLY, Stepper Motor
Socket Hd
23 185-53621 1 ASSEMBLY, Ground Wire 61 A93841 1
SHIELD, Oil Sensor Heat
24 86292 7
CAPSCREW, #10 Self Driller 62 46852 2
TAPTITE, #10-32 x 1/4"
25 23762 1 WASHER, #10 Shakeproof
63 22473 2 WASHER, 1/4" Flat
26 79661P 1
DECAL, Engine #93571
64
182-53621 1
WIRE ASSEMBLY,Starter
28 92982 1 DECAL, Danger 65
183-53621 1 WIRE ASSEMBLY, Battery
29
96056 1 DECAL, Control Panel
66
184-53621 1
WIRE ASSEMBLY, Ground
30 96055 1
DECAL, Side Panel 67 96378 1 SPACER
32 77816 1 DECAL, Caution Hot Muffler
68 96717 1 SPRING
33
95349
1 PLATE, Adjust 70 73054 1
DECAL, Fuel Shut Off
34 95348 1 BELL, Crank
71 68548 1
GASKET, Oil Filter Adapter
37 93826 1 DECAL, Start Instruction
38 75477 2
SCRW, M5-0.8 x 20Lg.
Phillips Hd.
Extended life Generator
Drawing No. 96024
